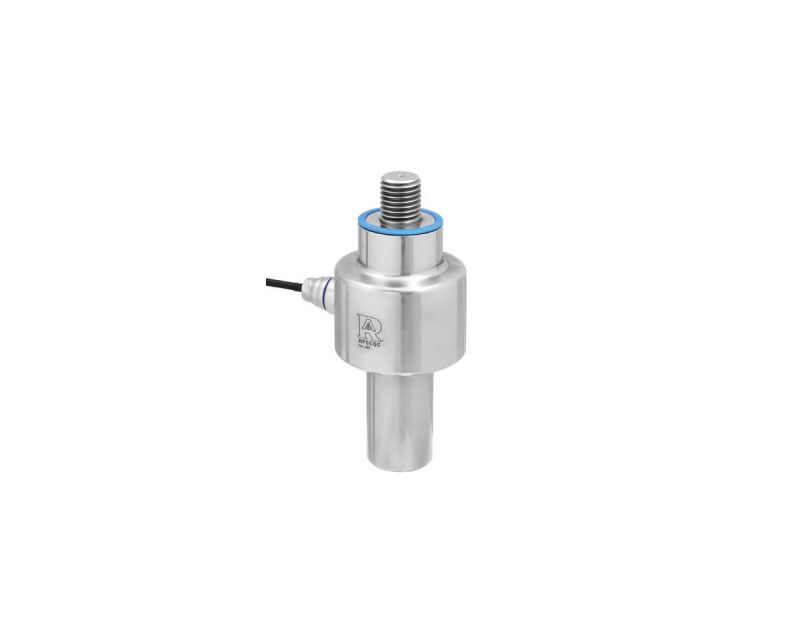

Loading cell for machine base 3A, connection thread M36, load 20000 kg

EAN 4061408145768

Type 458FLC20000M36A3A

Introducing the 3A certified loading cell for machine bases, featuring a robust M36 connection thread and a compact installation length of 152 mm, supporting loads up to 20,000 kg. Compatible with all machine feet.

High-capacity load cell designed for machine base applications with a maximum load capacity of 20,000 kg
Certified for reliable performance, ensuring adherence to industry standards
Compact installation length of 152 mm, facilitating integration into various machine designs
Robust housing diameter of Ø 78 mm, providing durability and stability under heavy loads
Compatible with all machine feet, allowing for versatile configurations in engineering setups

€499.59*

Content: 1 pieces

*Prices excl. VAT plus shipping costs

Currently sold out, Refill time: 10 days

€499.59* / piece

Our payment methods:

Accessories

Hygienic terminal box made of AISI 304 stainless steel for load cells, dimensions 143.4 x 92 mm

Type No.: 458CDG4EQ3A

€280.80*

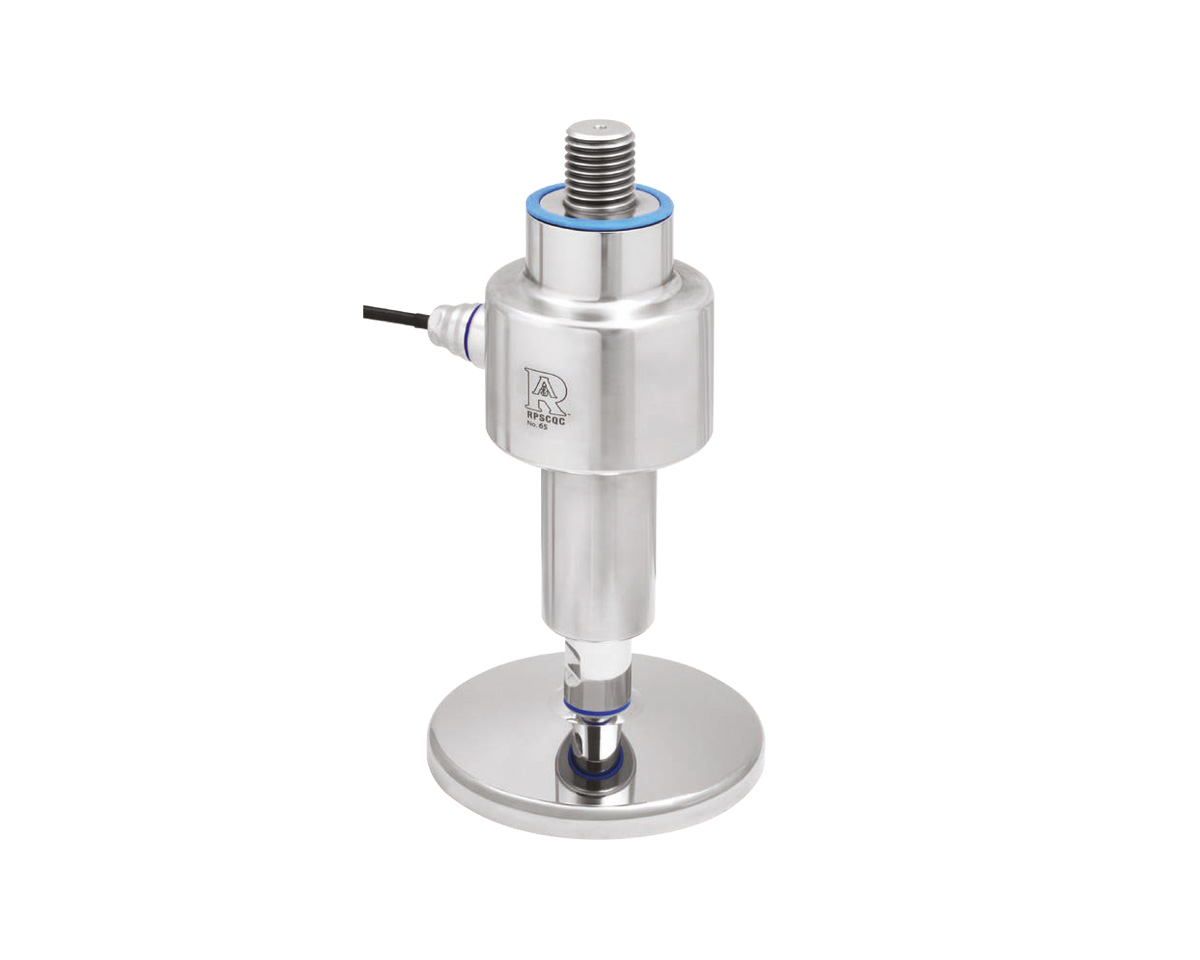

Base plate stainless steel Ø120 for loading cell, spindle M36

Type No.: 458FLCD120M36503A

€117.12*

Product properties

Material:	Stainless steel
Diameter:	78
Length:	152
Gasket:	Silicone (blue)
Thread:	M36
Rated Load:	20,000 kg
Application:	Hygiene
Class:	IP69K
Certification:	3-A Sanitary Standard

Product description

Loading cell for machine base 3A certified, installation length 152 mm, connection thread M36, housing diameter Ø 78 mm, max load 20000 kg, combinable with all machine feet

Custom solutions

We develop customised components exactly as you need them for your application.

Learn more about custom solutions Contact us

Technical documentation

In this section you will find all relevant documents & links for your documentation::

Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
