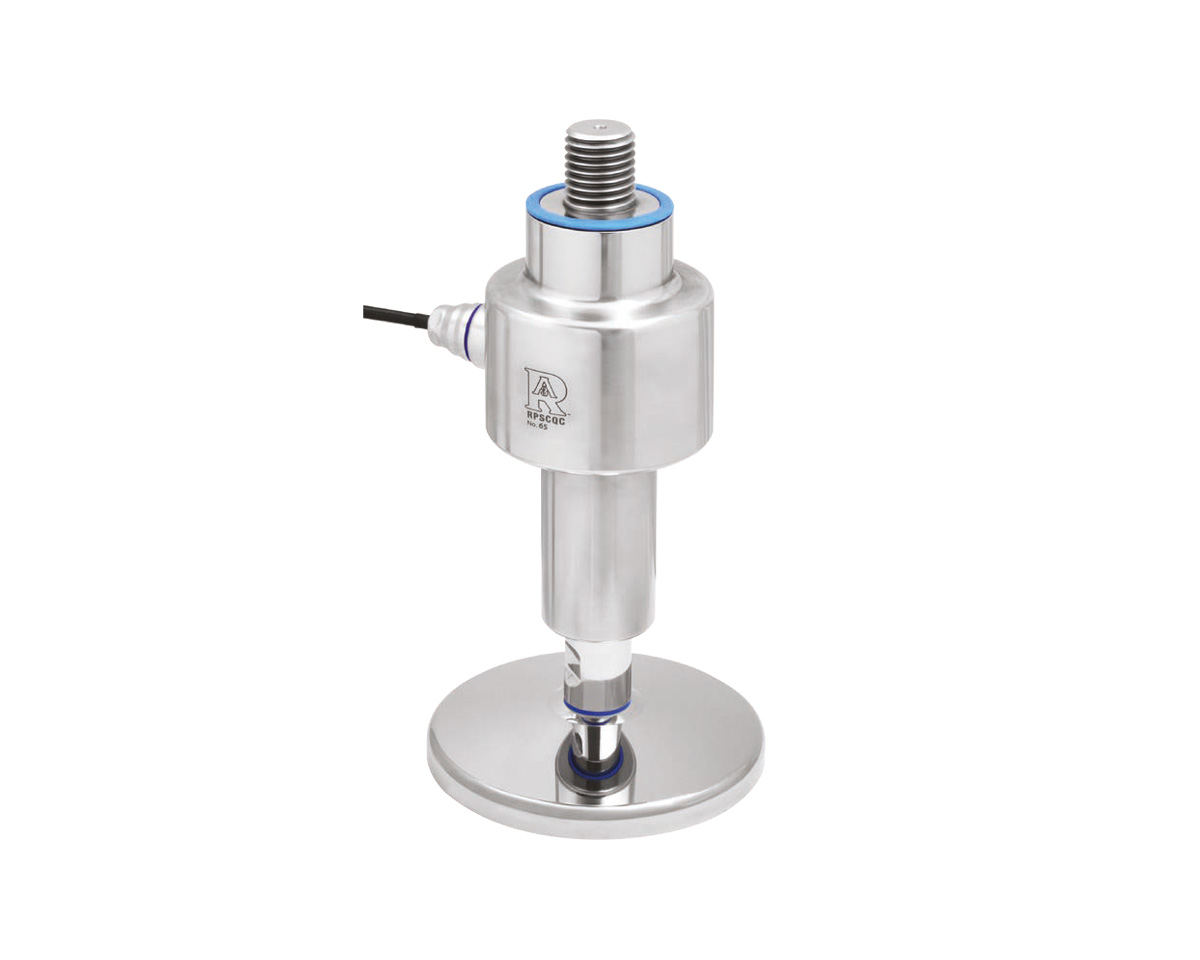

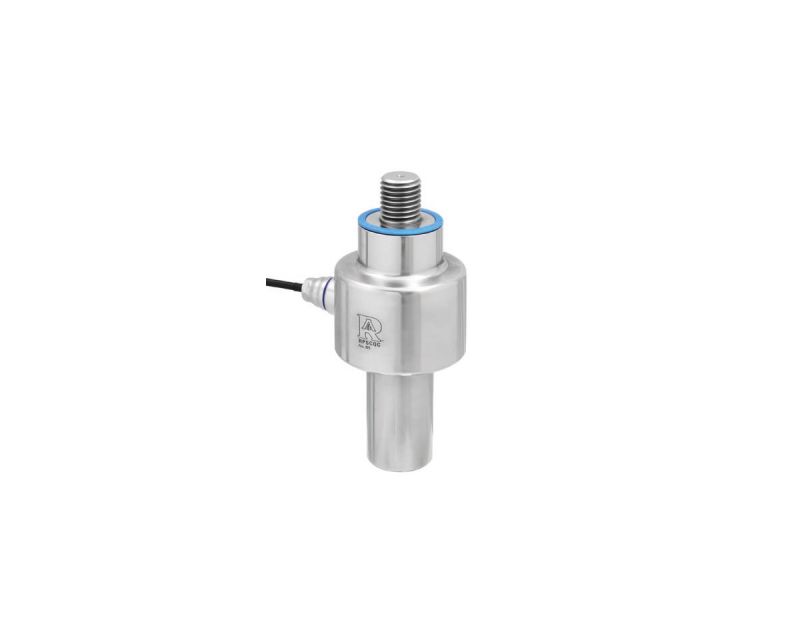

Loading cell for machine base 3A, connection thread M24, load 10000 kg

EAN 4061408145713

Type 458FLC10000M24A3A

Enhance your machine base stability with our certified 3A loading cell, designed for loads up to 10,000 kg. Features a M24 connection thread and 152 mm installation length for seamless integration with all machine feet.

High-capacity load cell with a maximum load rating of 10,000 kg for robust applications
Designed with a certified installation length of 152 mm to ensure precise fitting
Features a connection thread M24 for secure and reliable integration with machinery
Compact housing diameter of Ø 78 mm allows for versatile installation in limited spaces
Compatible with all machine feet, providing flexibility for various setups

€499.59*

Content: 1 pieces

*Prices excl. VAT plus shipping costs

Currently sold out, Refill time: 10 days

€499.59* / piece

Our payment methods:

Accessories

Hygienic terminal box made of AISI 304 stainless steel for load cells, dimensions 143.4 x 92 mm

Type No.: 458CDG4EQ3A

€280.80*

Base plate stainless steel Ø120 for loading cell, spindle M24

Type No.: 458FLCD120M24503A

€108.11*

Product properties

Material:	Stainless steel
Diameter:	78
Length:	152
Gasket:	Silicone (blue)
Thread:	M24
Rated Load:	10,000 kg
Application:	Hygiene
Class:	IP69K
Certification:	3-A Sanitary Standard

Product description

Loading cell for machine base 3A certified, installation length 152 mm, connection thread M24, housing diameter Ø 78 mm, max load 10000 kg, combinable with all machine feet

Custom solutions

We develop customised components exactly as you need them for your application.

Learn more about custom solutions Contact us

Technical documentation

In this section you will find all relevant documents & links for your documentation::

Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
