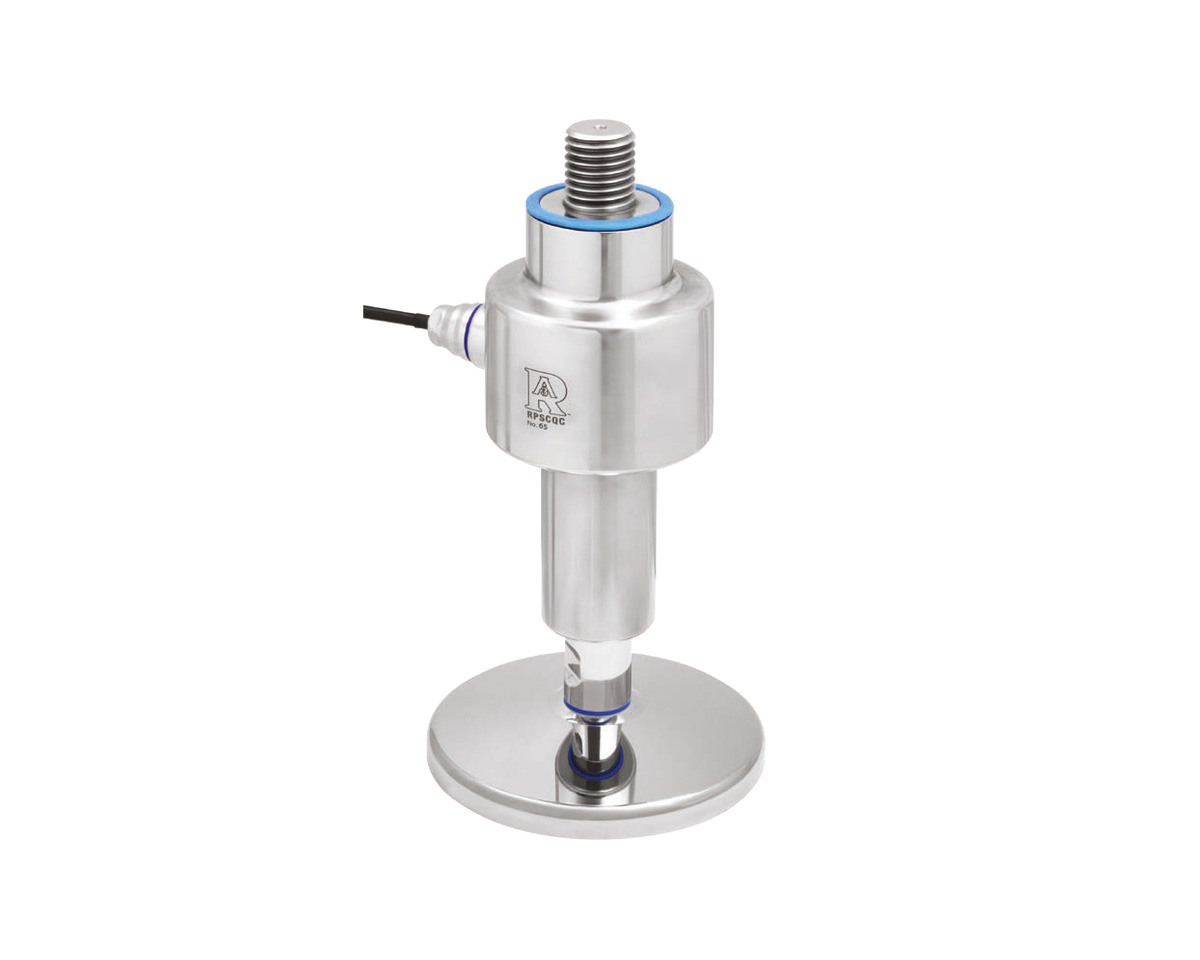

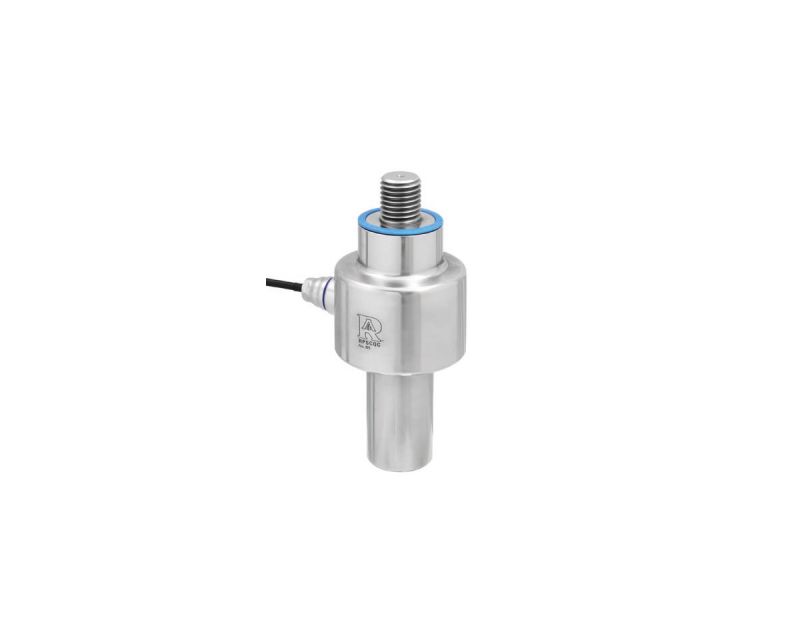

Loading cell for machine base 3A, connection thread M20, load 5000 kg

EAN 4061408145706

Type 458FLC5000M20A3A

Discover the 3A machine base loading cell with M20 connection, offering a robust 5000 kg capacity. Its compact design and compatibility with all machine feet ensure optimal stability and performance.

High capacity load cell with a maximum load of 5000 kg for robust applications
Certified for quality assurance, ensuring reliability and accuracy in load measurement
Compact installation length of 152 mm, suitable for various machine base configurations
Standard M20 connection thread for easy integration with existing setups
Versatile housing with a diameter of Ø 78 mm, compatible with all machine feet for flexibility in installation

€499.59*

Content: 1 pieces

*Prices excl. VAT plus shipping costs

Currently sold out, Refill time: 10 days

€499.59* / piece

Our payment methods:

Accessories

Hygienic terminal box made of AISI 304 stainless steel for load cells, dimensions 143.4 x 92 mm

Type No.: 458CDG4EQ3A

€280.80*

Base plate stainless steel Ø120 for loading cell, spindle M20

Type No.: 458FLC273843A

€99.10*

Product properties

Material:	Stainless steel
Diameter:	78
Length:	152
Gasket:	Silicone (blue)
Thread:	M20
Rated Load:	5,000 kg
Application:	Hygiene
Class:	IP69K
Certification:	3-A Sanitary Standard

Product description

Loading cell for machine base 3A certified, installation length 152 mm, connection thread M20, housing diameter Ø 78 mm, max load 5000 kg, combinable with all machine feet

Custom solutions

We develop customised components exactly as you need them for your application.

Learn more about custom solutions Contact us

Technical documentation

In this section you will find all relevant documents & links for your documentation::

Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
