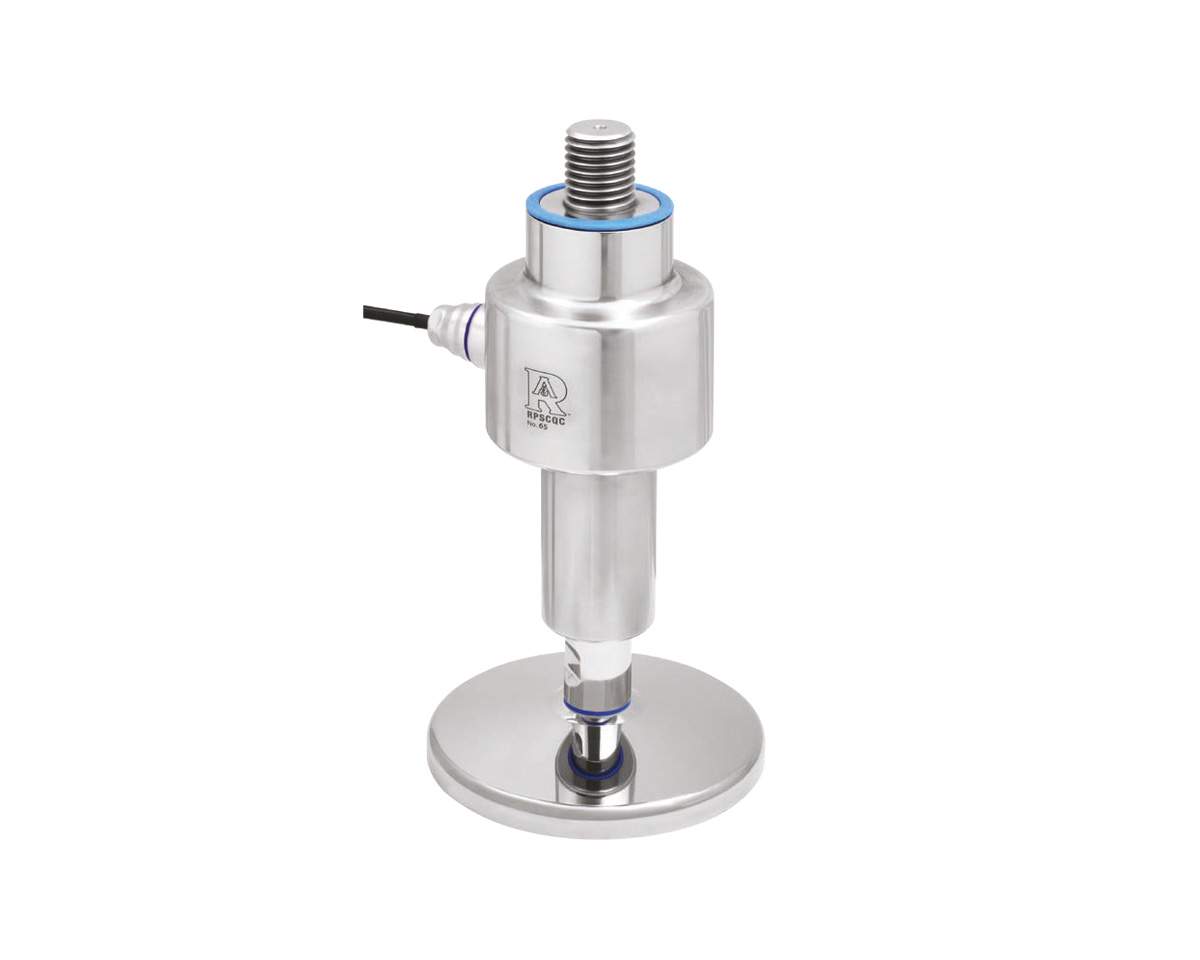

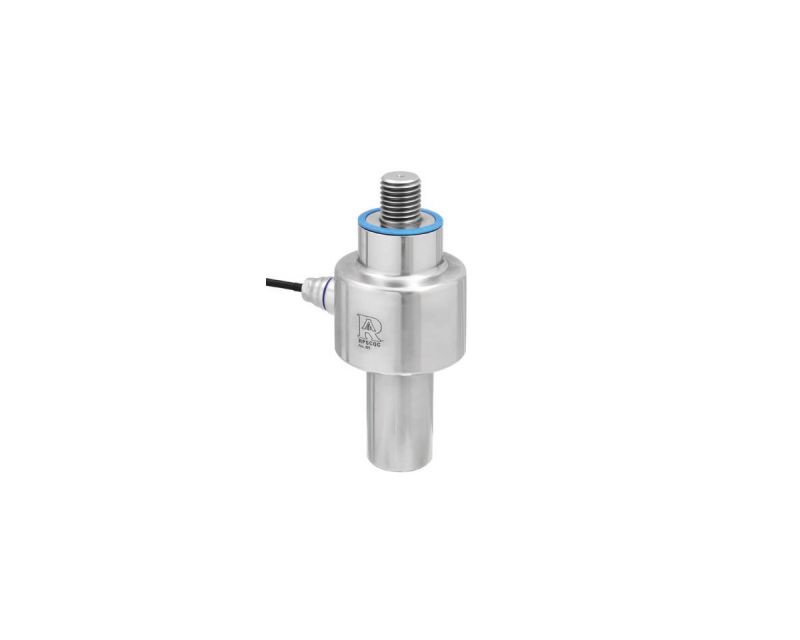

Loading cell for machine base 3A, connection thread M16, load 5000 kg

EAN 4061408145690

Type 458FLC5000M16A3A

Discover the 3A certified loading cell for machine bases, featuring a robust M16 connection thread and a maximum load capacity of 5000 kg, ensuring versatile compatibility with all machine feet.

High precision loading cell for machine base 3A with a maximum load capacity of 5000 kg
Certified product ensuring reliability and adherence to industry standards
Compact design with an installation length of 152 mm and a housing diameter of Ø 78 mm
Compatible with all machine feet, allowing for versatile applications
M16 connection thread providing robust and secure installation options

€499.59*

Content: 1 pieces

*Prices excl. VAT plus shipping costs

Currently sold out, Refill time: 10 days

€499.59* / piece

Our payment methods:

Accessories

Hygienic terminal box made of AISI 304 stainless steel for load cells, dimensions 143.4 x 92 mm

Type No.: 458CDG4EQ3A

€280.80*

Base plate stainless steel Ø120 for loading cell, spindle M16

Type No.: 458FLC273803A

€99.10*

Product properties

Material:	Stainless steel
Diameter:	78
Length:	152
Gasket:	Silicone (blue)
Thread:	M16
Rated Load:	5,000 kg
Application:	Hygiene
Class:	IP69K
Certification:	3-A Sanitary Standard

Product description

Loading cell for machine base 3A certified, installation length 152 mm, connection thread M16, housing diameter Ø 78 mm, max load 5000 kg, combinable with all machine feet

Custom solutions

We develop customised components exactly as you need them for your application.

Learn more about custom solutions Contact us

Technical documentation

In this section you will find all relevant documents & links for your documentation::

Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
