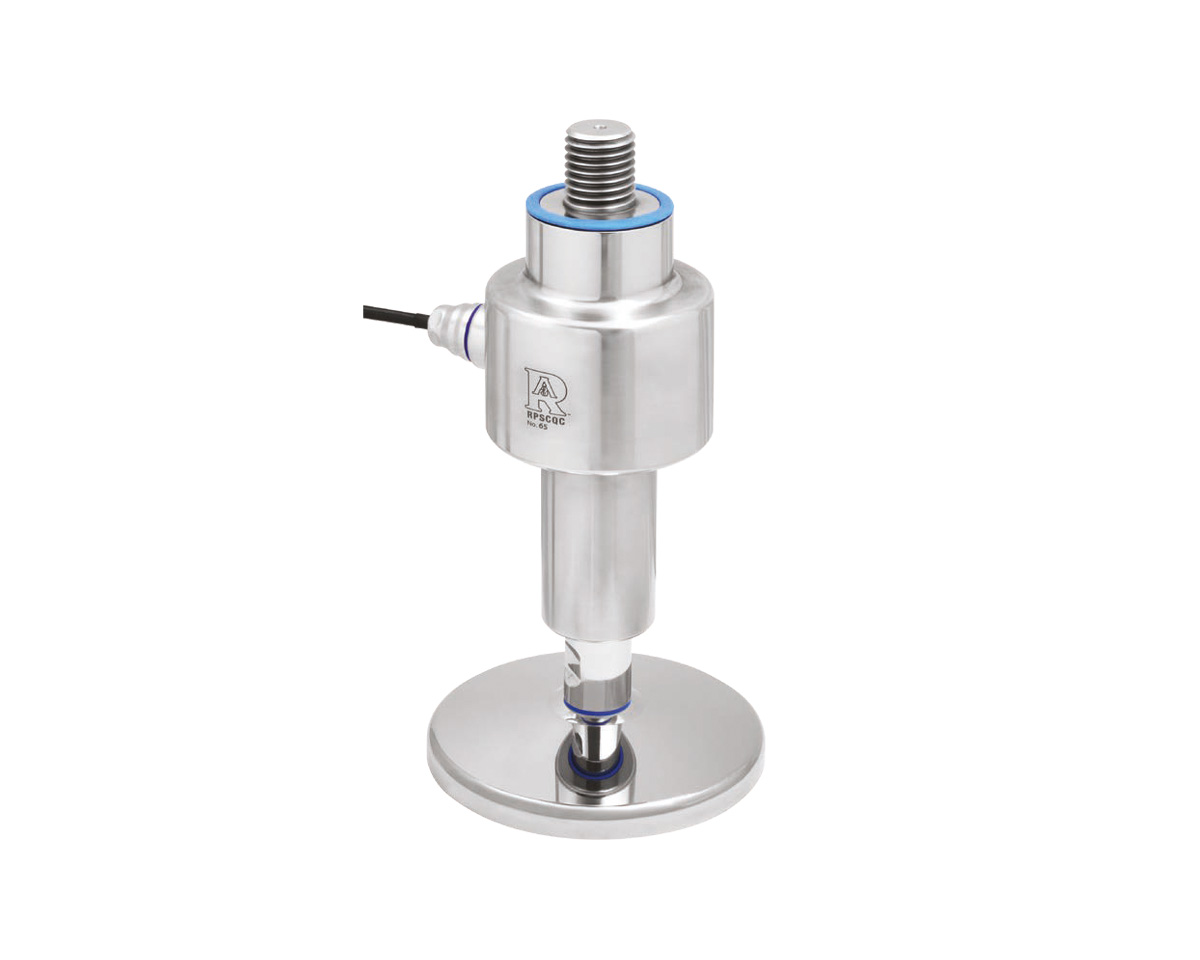

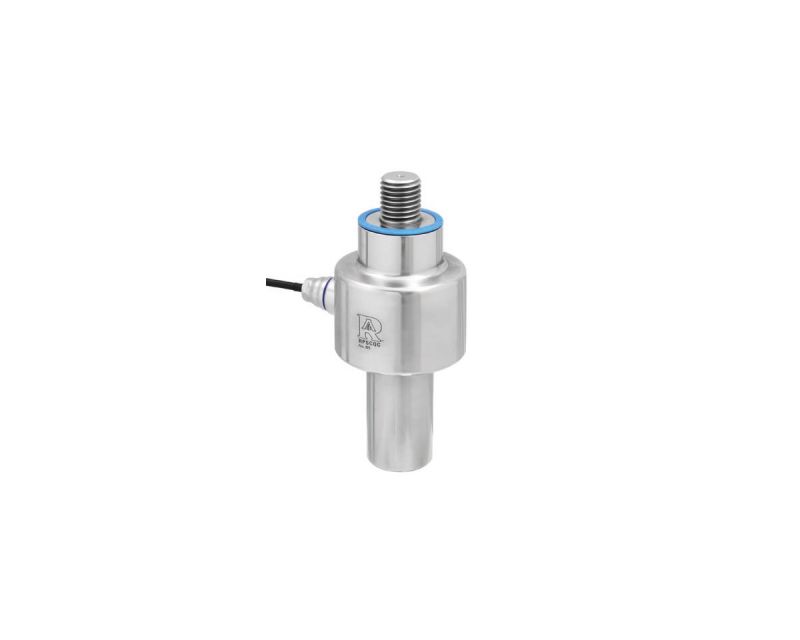

Loading cell for machine base 3A, connection thread M12, load 2000 kg

EAN 4061408145683

Type 458FLC2000M12A3A

Discover the 3A loading cell, designed for seamless integration with machine bases. With a 2000 kg capacity, M12 connection thread, and compact dimensions, it ensures precision and reliability in demanding applications.

High precision loading cell with a maximum load capacity of 2000 kg
Certified design ensures reliability and compliance with industry standards
Compact installation length of 152 mm for easy integration into machine bases
M12 connection thread allows for secure and standardized installation
Compatible with all machine feet, providing versatile application options

€499.59*

Content: 1 pieces

*Prices excl. VAT plus shipping costs

Currently sold out, Refill time: 10 days

€499.59* / piece

Our payment methods:

Accessories

Hygienic terminal box made of AISI 304 stainless steel for load cells, dimensions 143.4 x 92 mm

Type No.: 458CDG4EQ3A

€280.80*

Base plate stainless steel Ø120 for loading cell, spindle M12

Type No.: 458FLC273793A

€99.10*

Product properties

Material:	Stainless steel
Diameter:	78
Length:	152
Gasket:	Silicone (blue)
Thread:	M12
Rated Load:	2,000 kg
Application:	Hygiene
Class:	IP69K
Certification:	3-A Sanitary Standard

Product description

Loading cell for machine base 3A certified, installation length 152 mm, connection thread M12, housing diameter Ø 78 mm, max load 2000 kg, combinable with all machine feet
