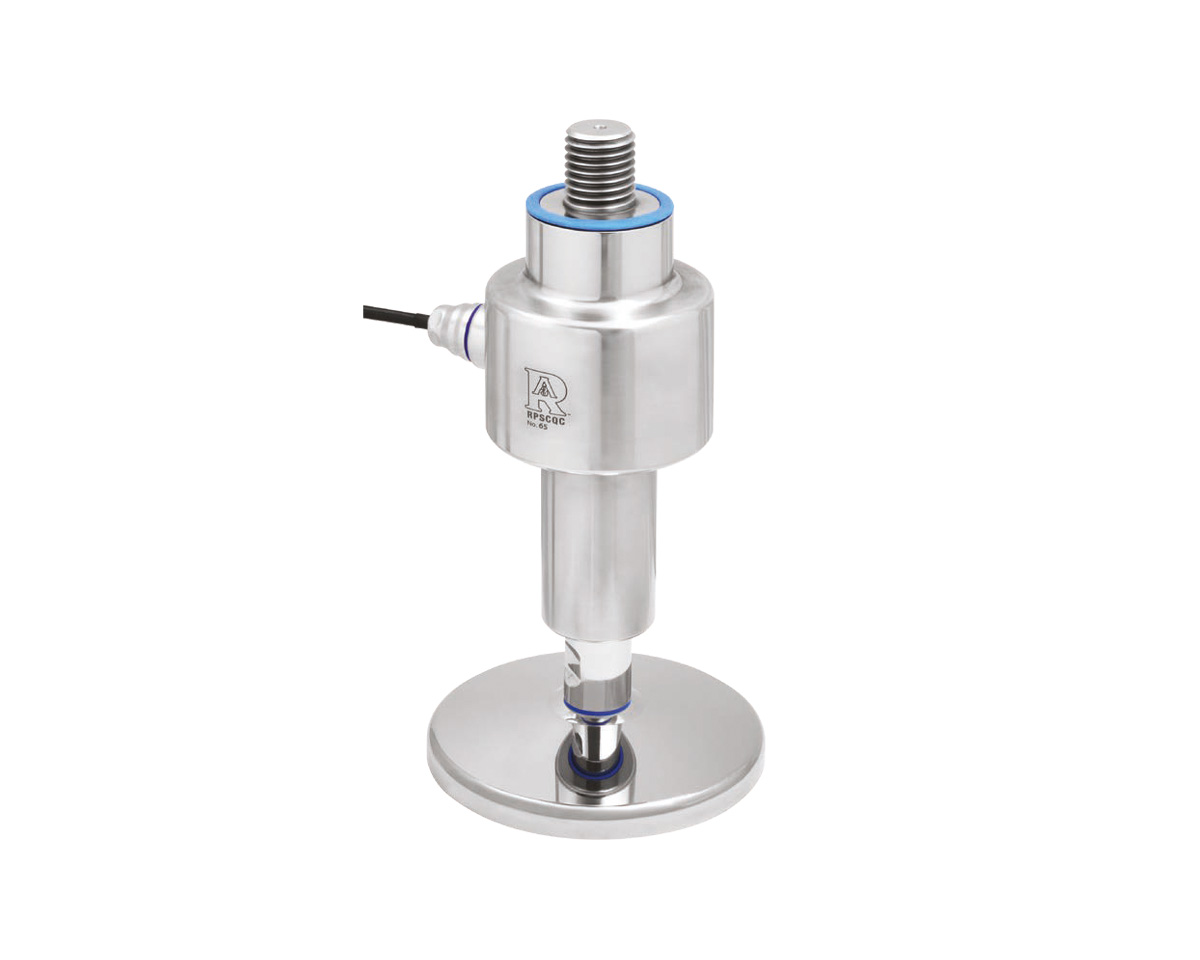

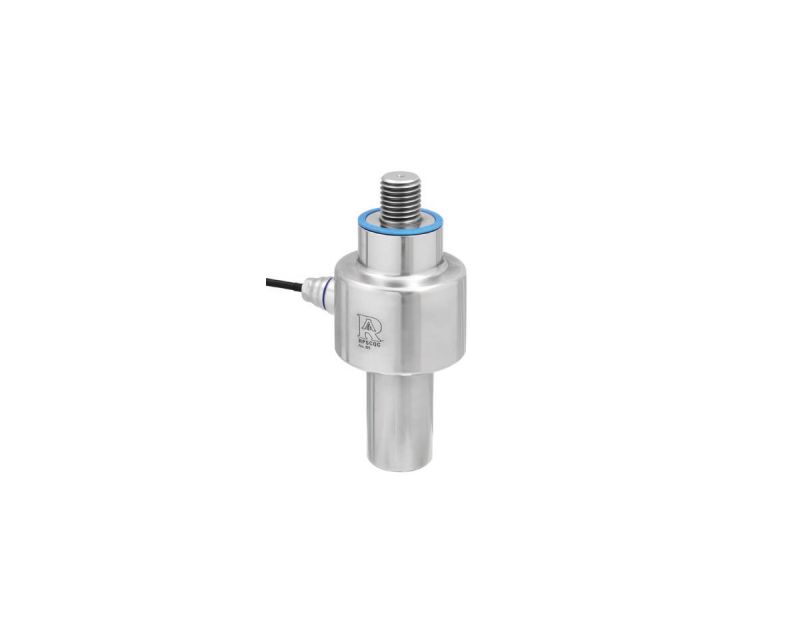

Loading cell for machine base 3A, connection thread M12, load 1000 kg

EAN 4061408145676

Type 458FLC1000M12A3A

Discover the 3A certified loading cell, tailored for machine bases. With a compact design of 152 mm and a versatile M12 connection, it supports loads up to 1000 kg and integrates seamlessly with all machine feet.

High load capacity of 1000 kg, ensuring reliable performance in demanding applications
Certified construction for enhanced safety and compliance with industry standards
Compact installation length of 152 mm, facilitating easy integration into various systems
M12 connection thread for secure and standardized electrical connections
Housing diameter of Ø 78 mm, allowing compatibility with all machine feet for flexible use

€499.59*

Content: 1 pieces

*Prices excl. VAT plus shipping costs

Currently sold out, Refill time: 10 days

€499.59* / piece

Our payment methods:

Accessories

Hygienic terminal box made of AISI 304 stainless steel for load cells, dimensions 143.4 x 92 mm

Type No.: 458CDG4EQ3A

€280.80*

Base plate stainless steel Ø120 for loading cell, spindle M12

Type No.: 458FLC273793A

€99.10*

Product properties

Material:	Stainless steel
Diameter:	78
Length:	152
Gasket:	Silicone (blue)
Thread:	M12
Rated Load:	1,000 kg
Application:	Hygiene
Class:	IP69K
Certification:	3-A Sanitary Standard

Product description

Loading cell for machine base 3A certified, installation length 152 mm, connection thread M12, housing diameter Ø 78 mm, max load 1000 kg, combinable with all machine feet

Custom solutions

We develop customised components exactly as you need them for your application.

Learn more about custom solutions Contact us

Technical documentation

In this section you will find all relevant documents & links for your documentation::

Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
