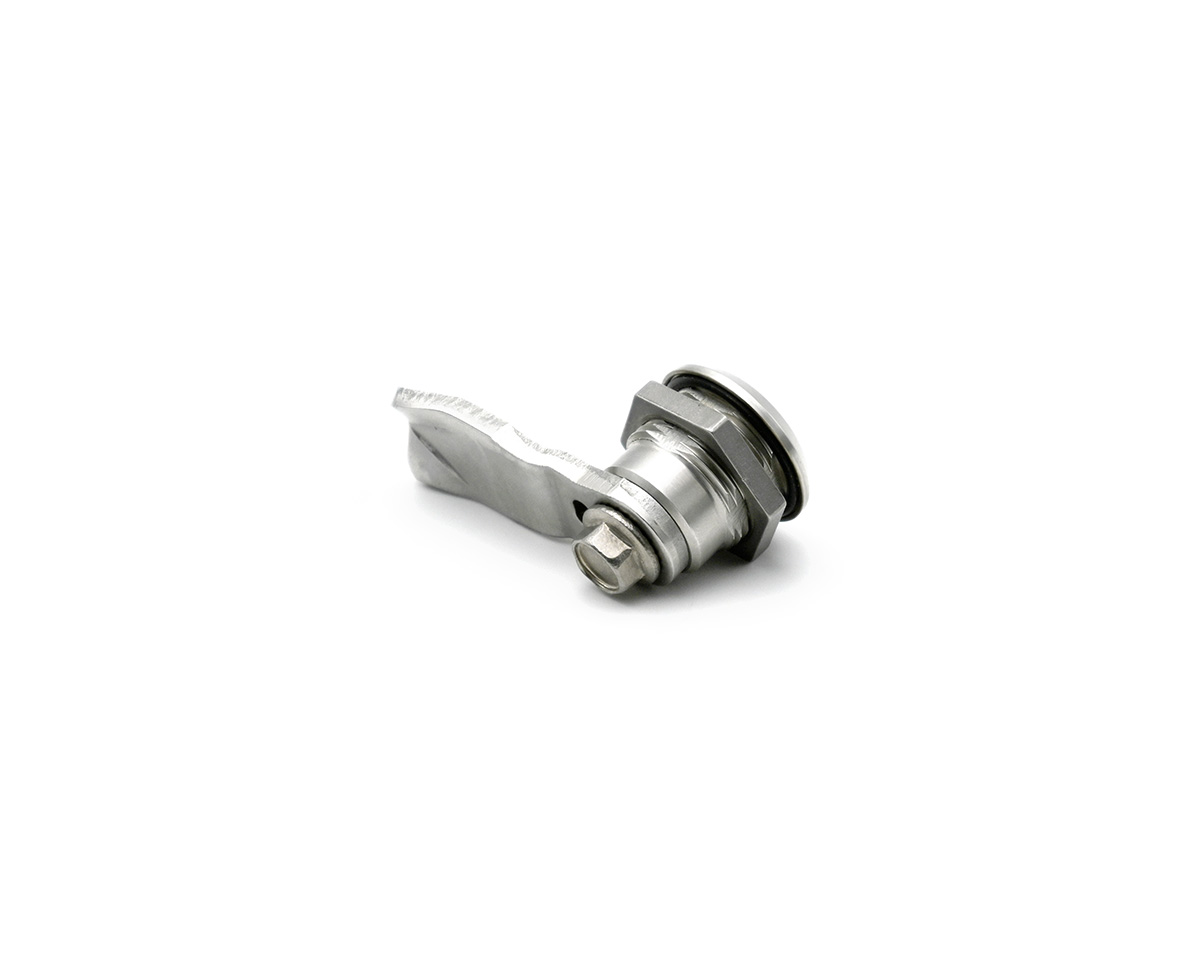

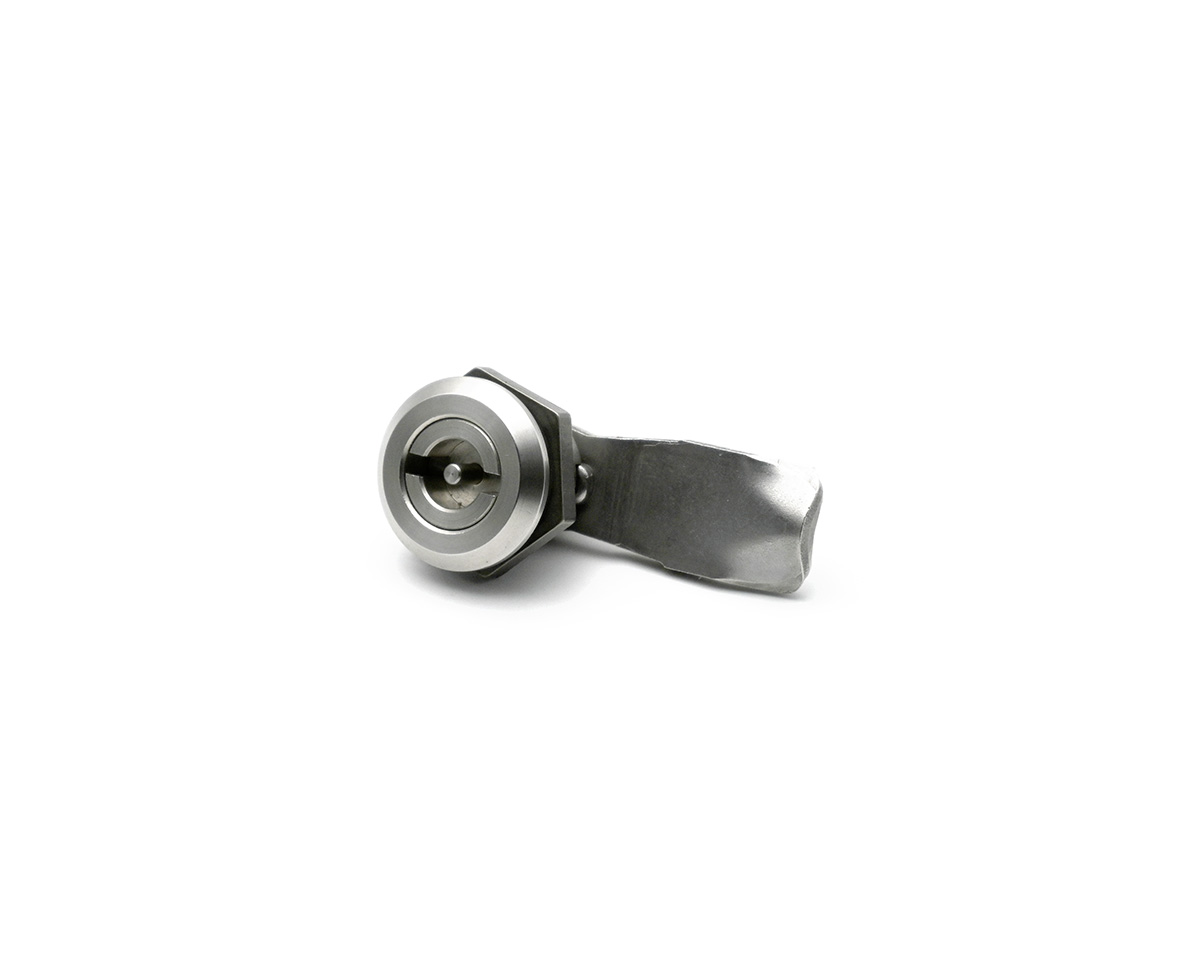

Quarter Turning latch 90° type B, SS, H = 22 mm, IP67, double bit insert

EAN 4061408114764

Type 45870072/B

Introducing our 90° Quarter Turning Latch Type B: crafted from stainless steel, featuring IP67 rating for exceptional durability and hygiene. Ideal for secure, reliable access in demanding environments.

Robust stainless steel construction ensures high durability and resistance to corrosion.
IP67 rating provides excellent protection against dust and water ingress, suitable for harsh environments.
90° quarter turn mechanism offers quick and easy locking and unlocking for efficient operation.
Compatible with double bit inserts, enhancing security and flexibility in application.
Hygienic design makes it ideal for use in clean environments, meeting stringent hygiene standards.

Quantity	Price
From 1	€22.92*
From 5	€20.68*
From 15	€18.45*
From 50	€17.33*

*Prices excl. VAT plus shipping costs

Currently sold out, Refill time: 5 days

€22.92* / piece

Our payment methods:

Accessories

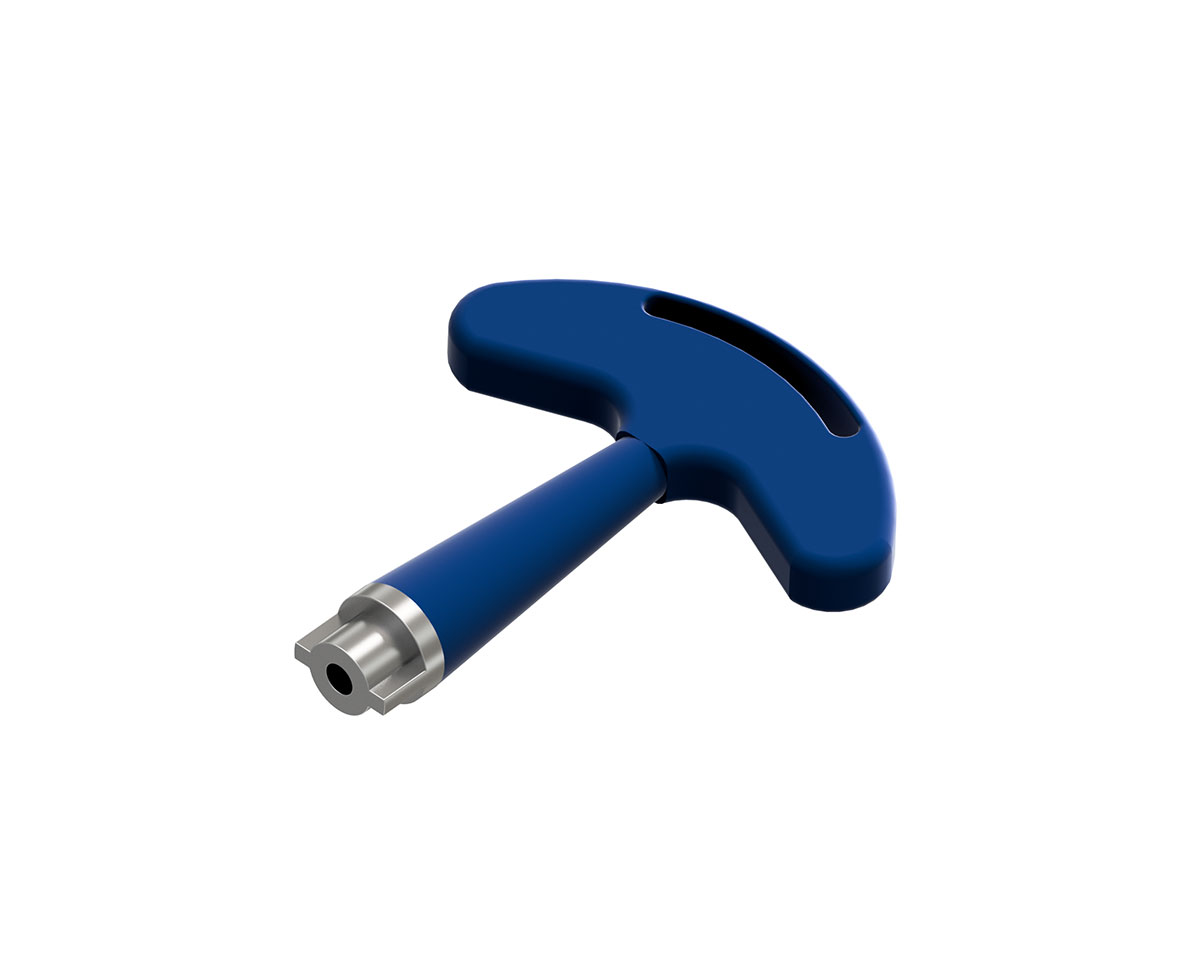

Key for latch with type B insert

Type No.: 45870090/CH/B

From €2.50*

Product properties

Type/Shape:	B
Material:	Stainless steel
Diameter:	28
Closing depth:	22
Gasket:	NBR (black)
Application:	Hygiene
Class:	IP67
Certification:	3-A Sanitary Standard

Product description

Quarter Turn latch 90° type B, stainless steel, Ø 28 mm, H = 22 mm, IP67, double bit insert

Custom solutions

We develop customised components exactly as you need them for your application.

Learn more about custom solutions Contact us

Technical documentation

In this section you will find all relevant documents & links for your documentation::

Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
