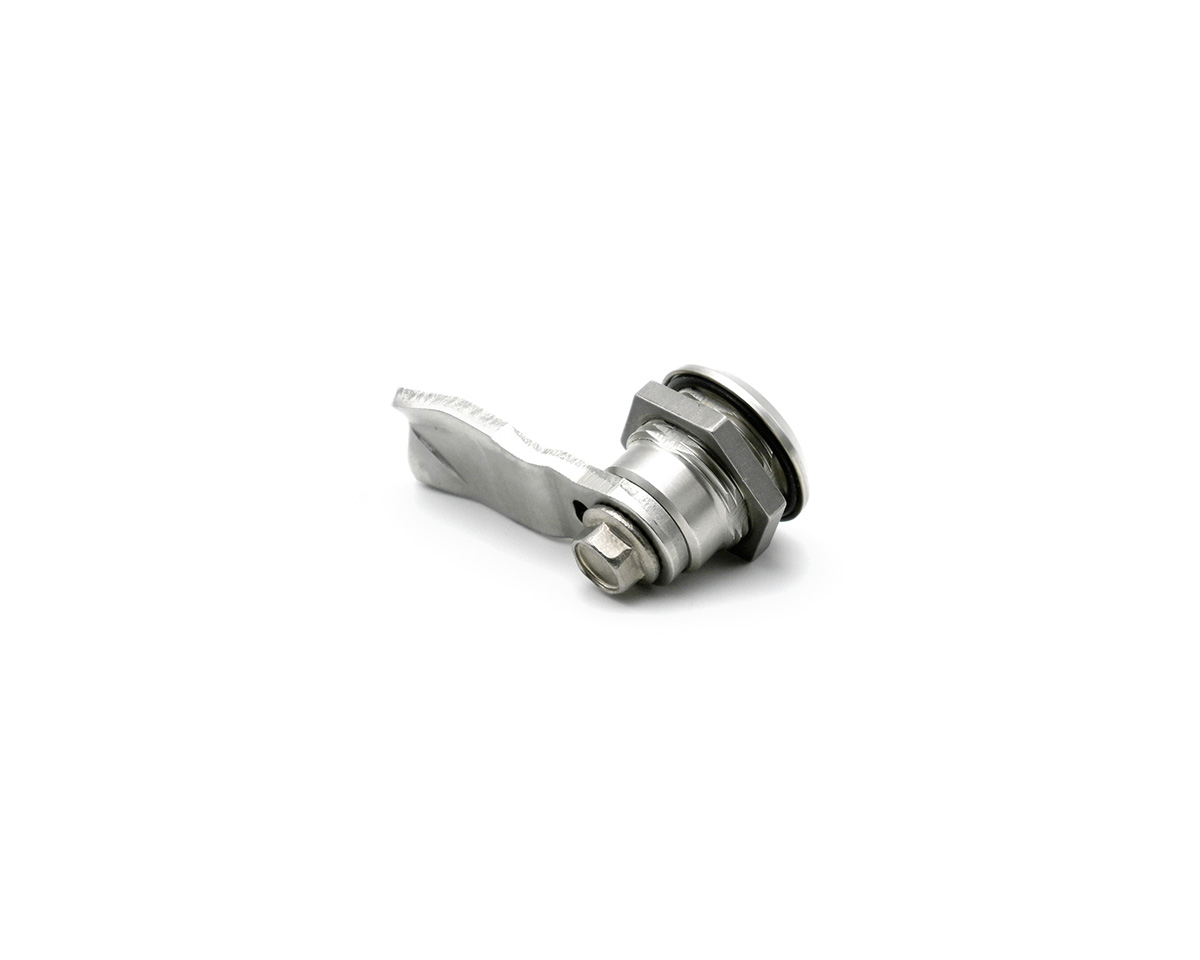

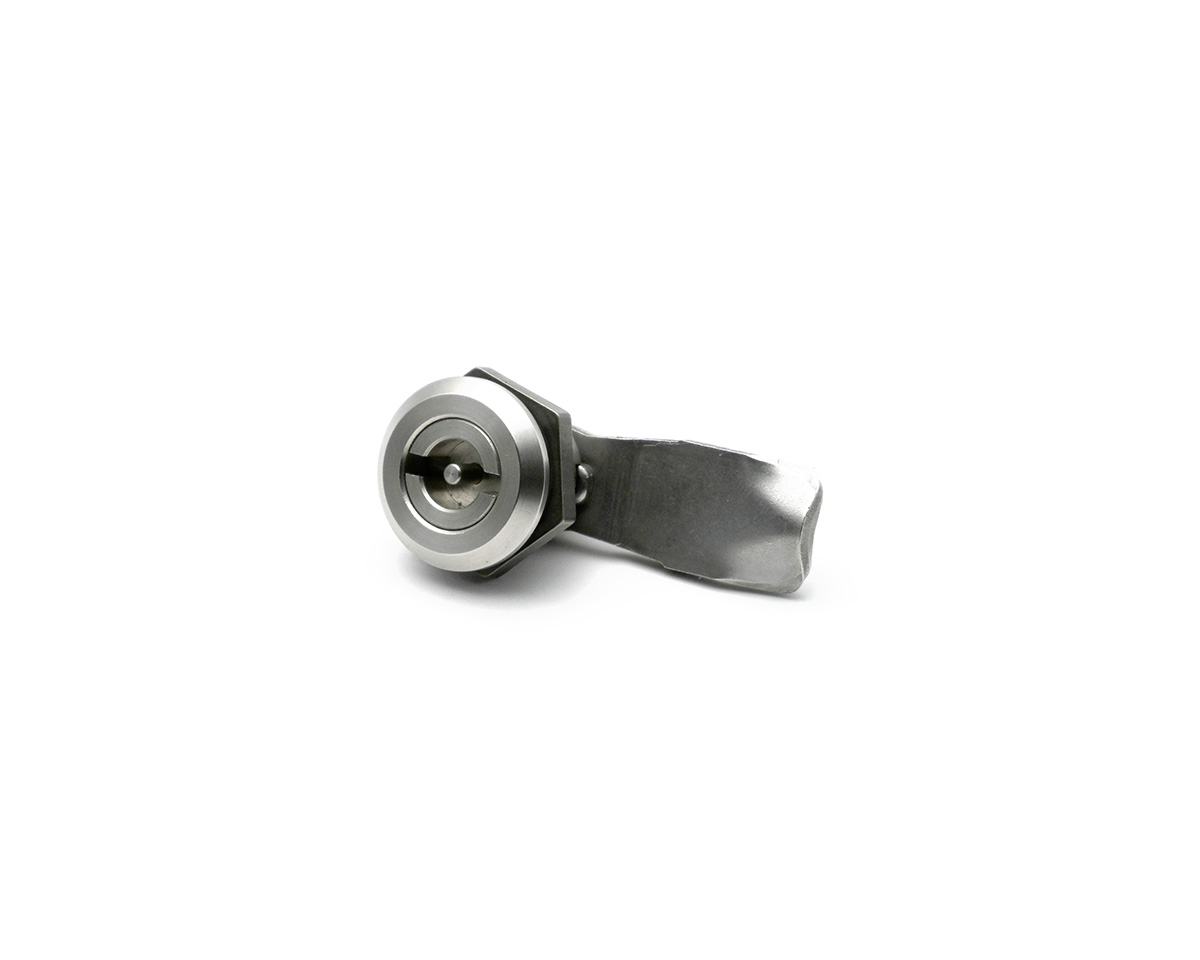

Quarter Turning latch 90° type B, SS, H = 20 mm, IP67, triangular insert

EAN 4061408114757

Type 45870071/B

Discover our Quarter Turning Latch 90° Type B, crafted from durable stainless steel. With an IP67 rating and a triangular insert, it ensures secure operation and reliability in demanding environments.

Durable stainless steel construction for enhanced corrosion resistance and longevity
IP67 rating ensures protection against dust and water ingress, making it suitable for harsh environments
Compact design with a height of 20 mm allows for versatile installation in limited spaces
Triangular insert mechanism provides secure locking and enhances safety
Easy 90° quarter turn operation facilitates quick access and efficient workflow

Quantity	Price
From 1	€22.92*
From 5	€20.68*
From 15	€18.45*
From 50	€17.33*

*Prices excl. VAT plus shipping costs

Currently sold out, Refill time: 5 days

€22.92* / piece

Our payment methods:

Accessories

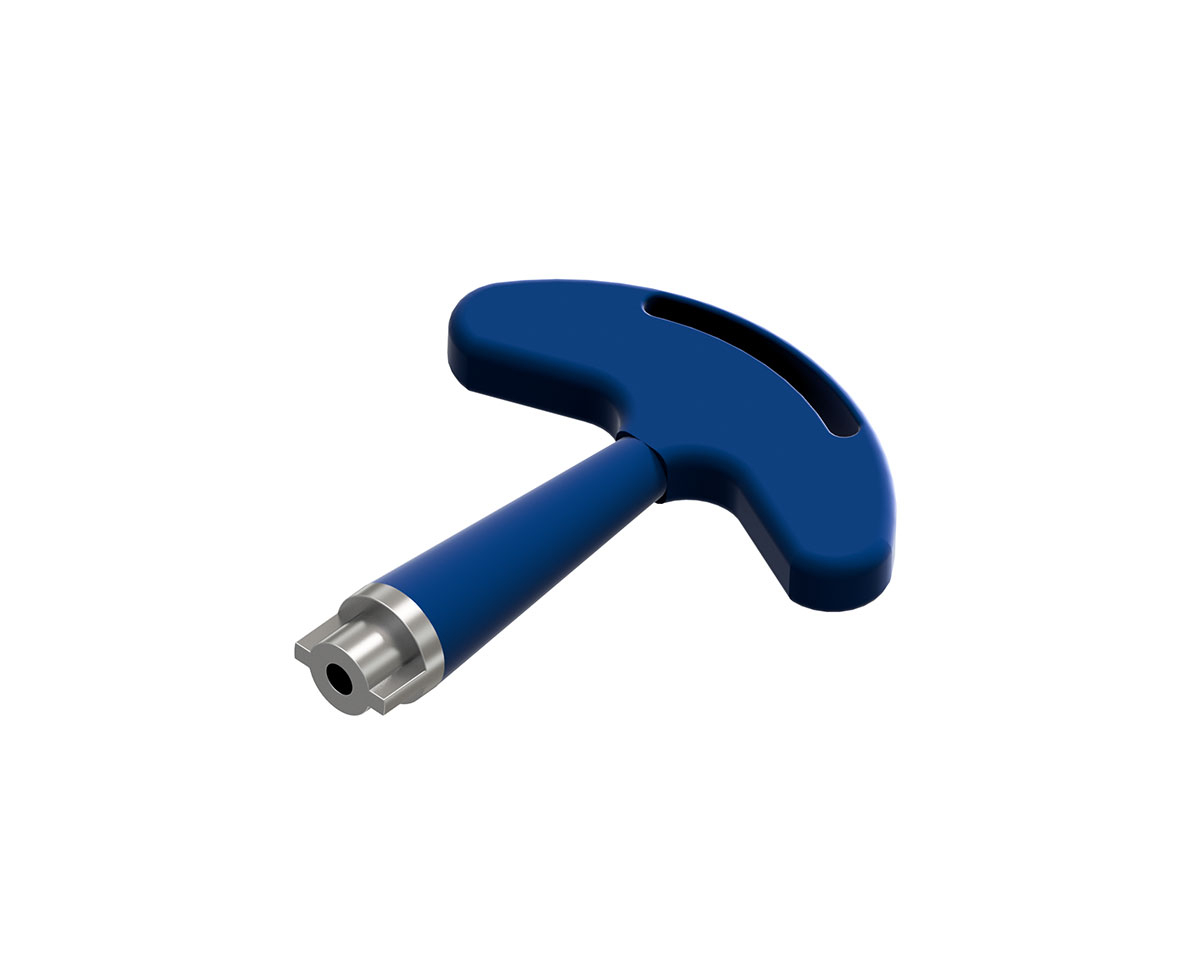

Key for latch with type B insert

Type No.: 45870090/CH/B

From €2.50*

Product properties

Type/Shape:	B
Material:	Stainless steel
Diameter:	28
Closing depth:	20
Gasket:	NBR (black)
Application:	Hygiene
Class:	IP67
Certification:	3-A Sanitary Standard

Product description

Quarter Turn latch 90° type B, stainless steel, Ø 28 mm, H = 20 mm, IP67, triangular insert

Custom solutions

We develop customised components exactly as you need them for your application.

Learn more about custom solutions Contact us

Technical documentation

In this section you will find all relevant documents & links for your documentation::

Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
