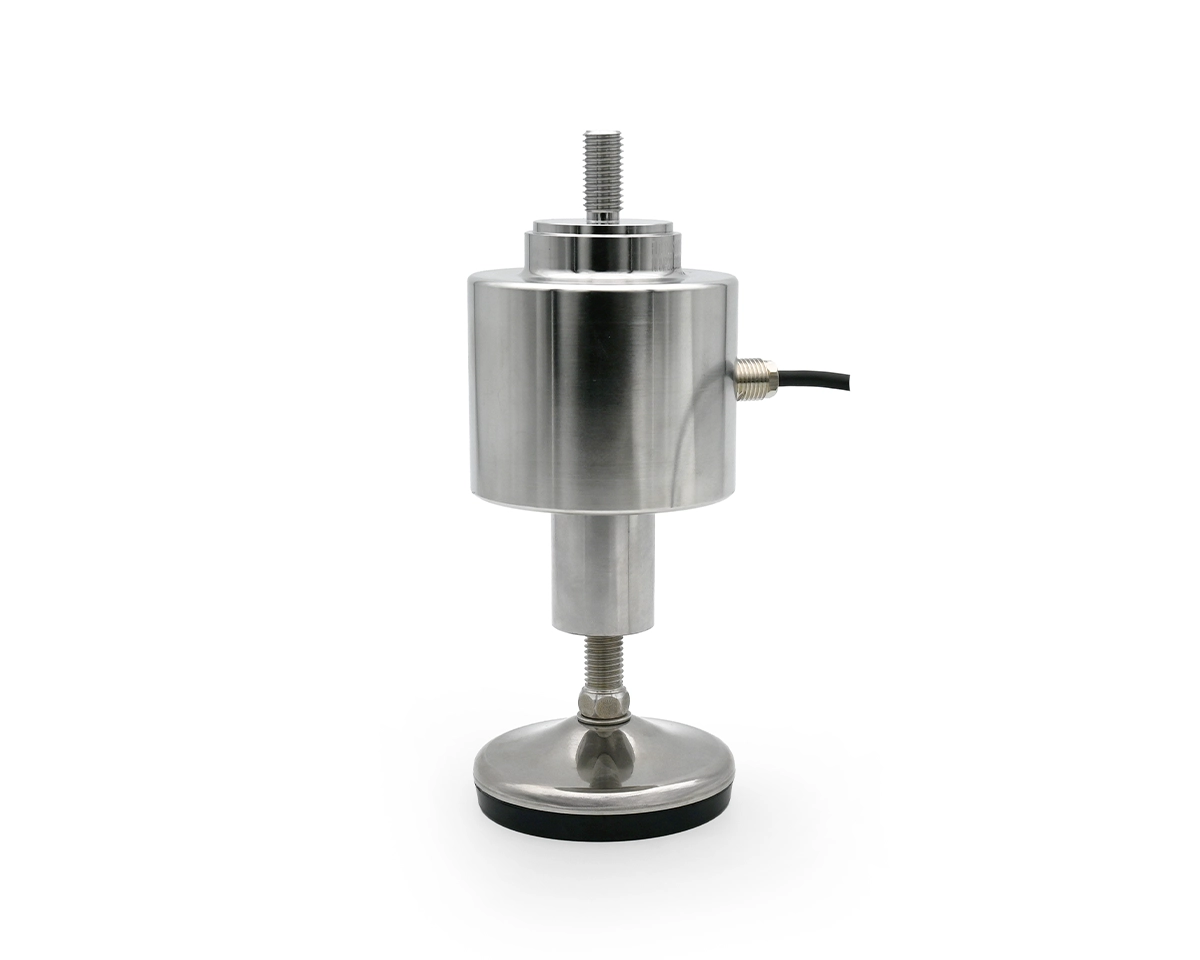

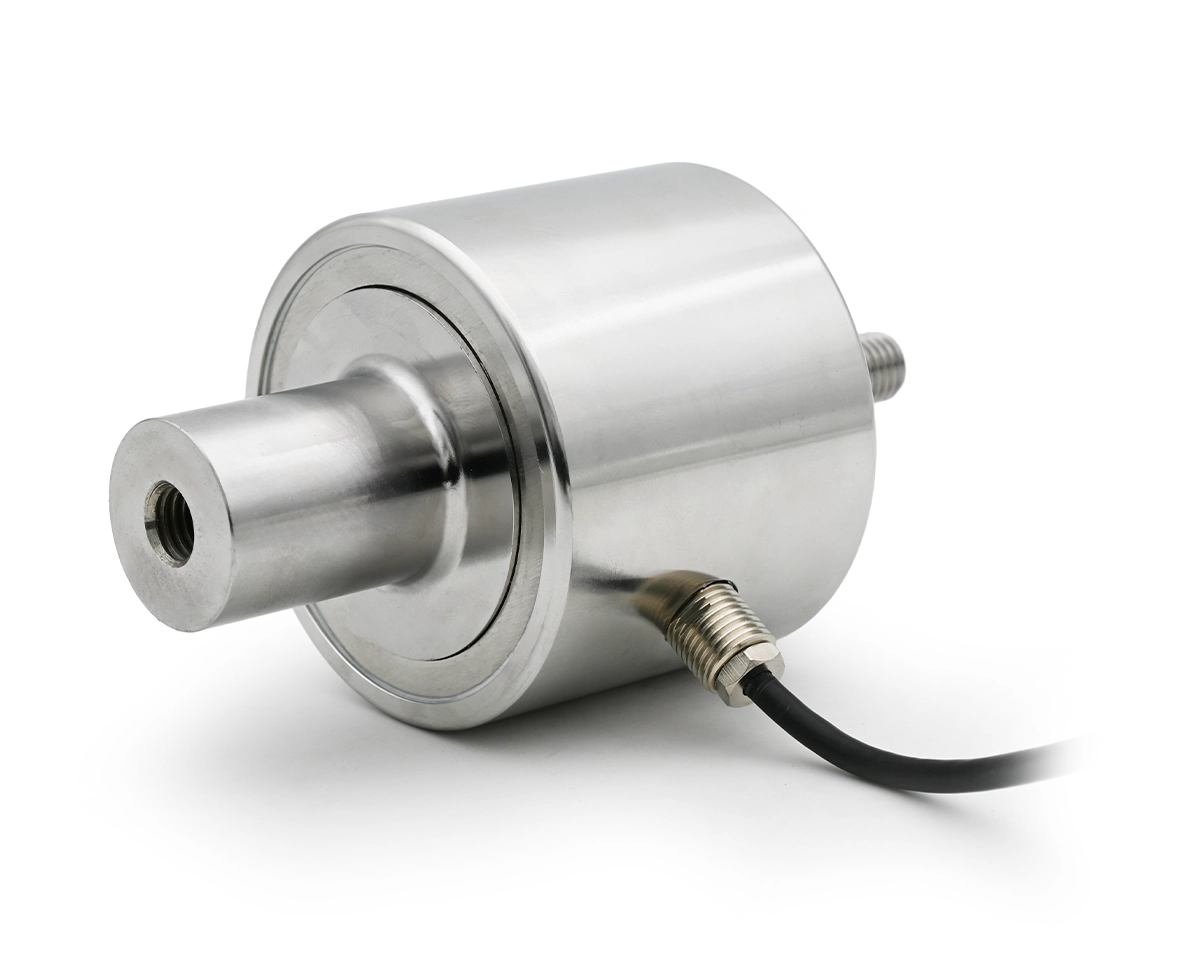

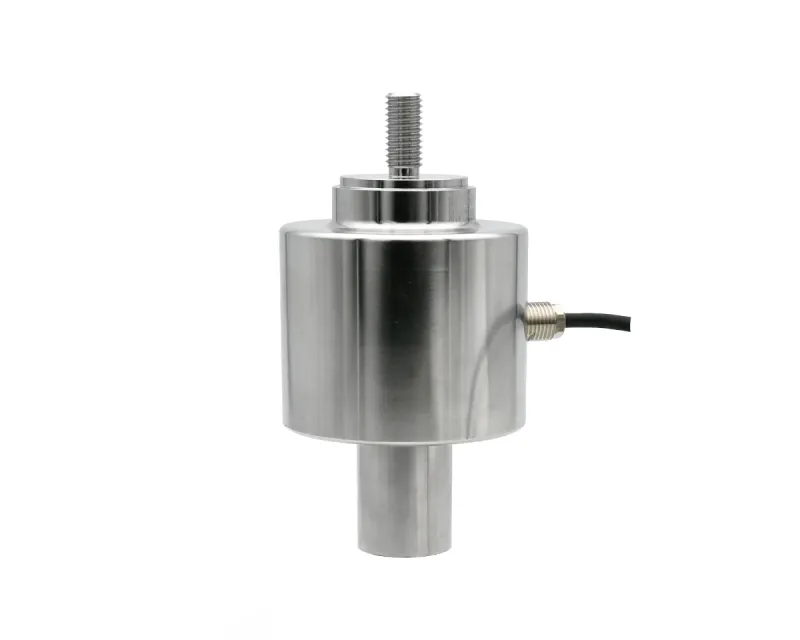

Load cell 75 kg for machine base, connection thread M12
EAN
4061408154166
Type
458FLC75
Enhance your machinery with our 75 kg stainless steel load cell, featuring an M12 connection thread. With an IP67 rating and a precision error of ≤ ±0.07%, it ensures reliable performance in hygienic environments.
€283.50
Content:
1 pieces
Currently sold out, Refill time: 10 days
Our payment methods:
Invoice
Prepayment
PayPal
Product properties
| Material: | Stainless steel AISI304 |
| Diameter: | 78 |
| Thread: | M12 |
| Rated Load: | 75 kg |
| Application: | Hygiene |
| Class: | IP67 |
Technical drawing
Pressure load cell for machine base, installation length 143 mm, connection thread M12, housing diameter Ø 78 mm, max load 75 kg, combinable with all levelling feet.
- Material: Stainless steel 17-4 ph
- Combined error: <= +/-0.07%
- Protection class: IP67
- Height adjustable
- Material: Stainless steel 17-4 ph
- Combined error: <= +/-0.07%
- Protection class: IP67
- Height adjustable
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
