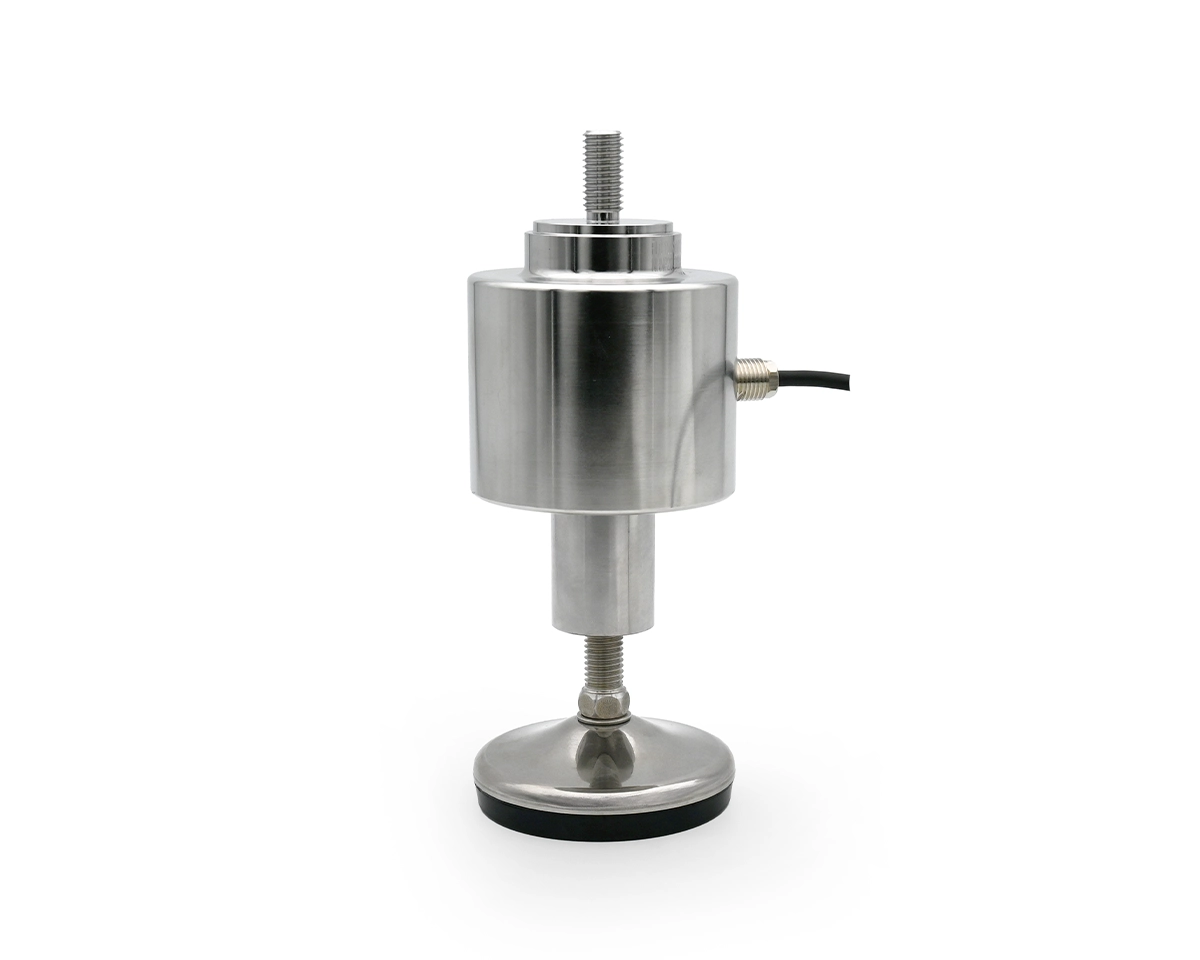

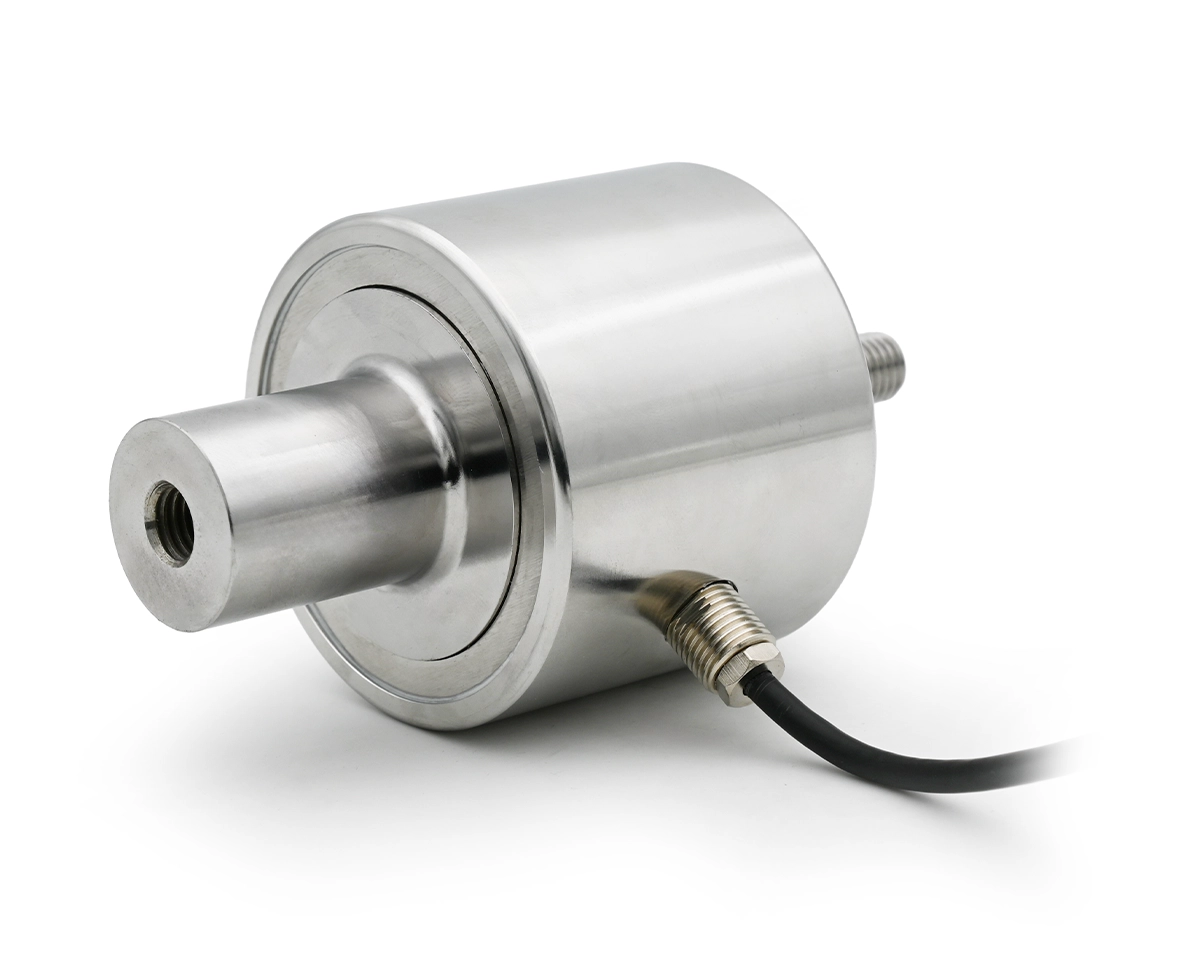

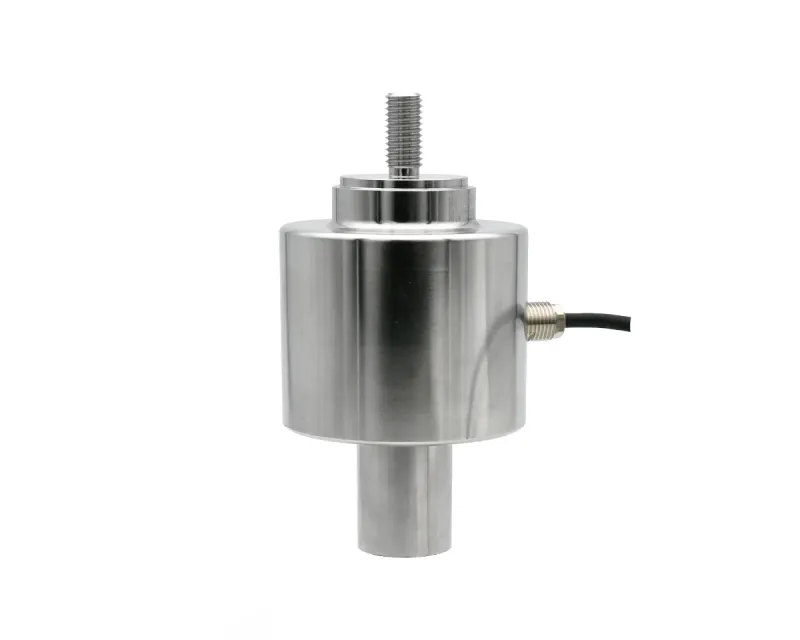

Load cell 500 kg for machine base, connection thread M12
EAN
4061408157617
Type
458FLC500
Discover our robust 500 kg load cell, engineered for precision and durability. Its IP67 stainless steel housing ensures reliability in hygiene-sensitive environments, with an adjustable height feature for optimal performance.
€283.50
Content:
1 pieces
Currently sold out, Refill time: 10 days
Our payment methods:
Invoice
Prepayment
PayPal
Product properties
| Material: | Stainless steel AISI304 |
| Diameter: | 78 |
| Thread: | M12 |
| Rated Load: | 500 kg |
| Application: | Hygiene |
| Class: | IP67 |
Technical drawing
Pressure load cell for machine base, installation length 143 mm, connection thread M12, housing diameter Ø 78 mm, max load 500 kg, combinable with all levelling feet.
- Material: Stainless steel 17-4 ph
- Combined error: <= +/-0.07%
- Protection class: IP67
- Height adjustable
- Material: Stainless steel 17-4 ph
- Combined error: <= +/-0.07%
- Protection class: IP67
- Height adjustable
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
