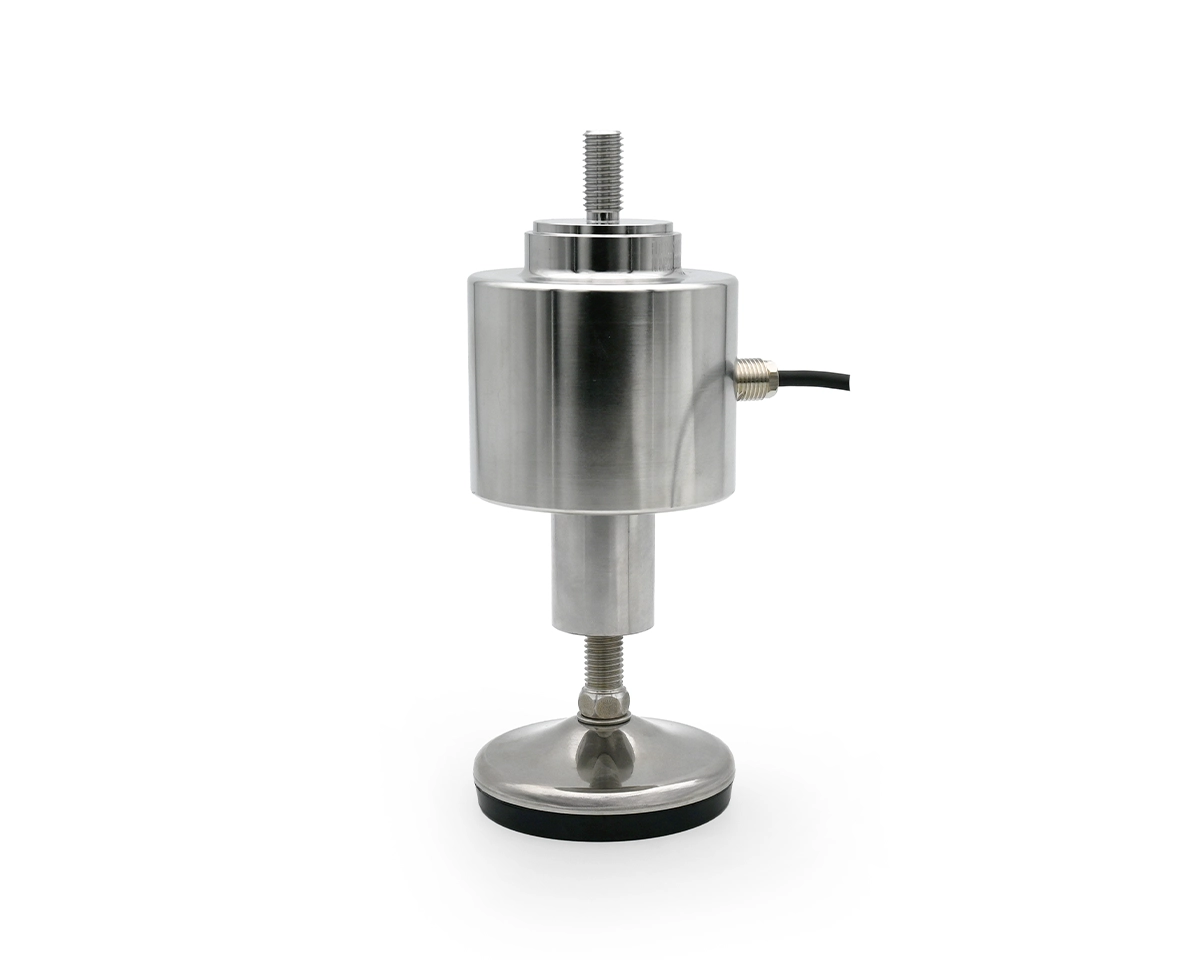

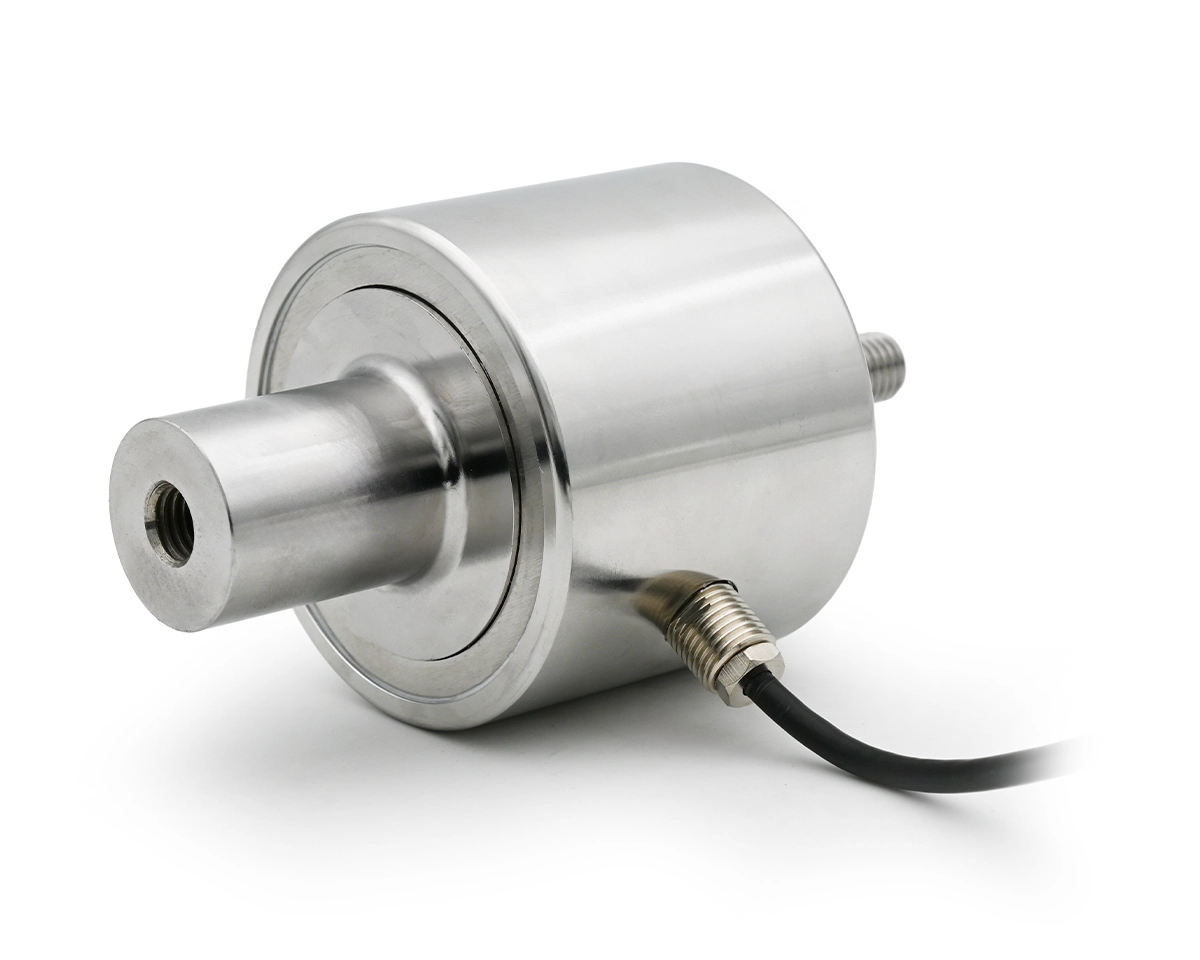

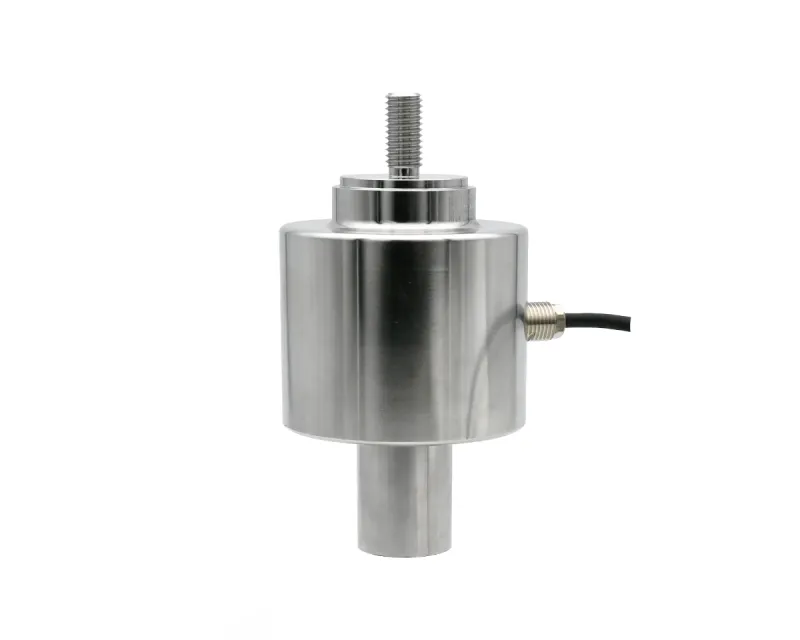

Load cell 5 ton for machine base, connection thread M20
EAN
4061408154159
Type
458FLC5000
Discover our 5-ton stainless steel pressure load cell, designed for machine bases. With a compact installation length of 143 mm, IP67 protection, and height adjustability, it ensures precision and durability in demanding environments.
€394.20
Content:
1 pieces
Currently sold out, Refill time: 10 days
Our payment methods:
Invoice
Prepayment
PayPal
Product properties
| Diameter: | 78 |
| Thread: | M12 |
| Rated Load: | 5,000 kg |
| Application: | Hygiene |
| Class: | IP67 |
Technical drawing
Pressure load cell for machine base, installation length 143 mm, connection thread M20, housing diameter Ø 78 mm, max. load 5000 kg, combinable with all levelling feet.
- Material: Stainless steel 17-4 ph
- Combined error: <= +/-0.07%
- Protection class: IP67
- Height adjustable
- Material: Stainless steel 17-4 ph
- Combined error: <= +/-0.07%
- Protection class: IP67
- Height adjustable
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
