Load cell 300 kg for machine base, connection thread M12
EAN
4061408157600
Type
458FLC300
Discover our high-precision 300 kg load cell, featuring an M12 connection thread and IP67 protection. Ideal for machine bases, its stainless steel construction ensures durability in hygienic environments.
€283.50
Content:
1 pieces
Currently sold out, Refill time: 10 days
Our payment methods:
Invoice
Prepayment
PayPal
Product properties
| Material: | Stainless steel AISI304 |
| Diameter: | 78 |
| Thread: | M12 |
| Rated Load: | 300 kg |
| Application: | Hygiene |
| Class: | IP67 |
Technical drawing

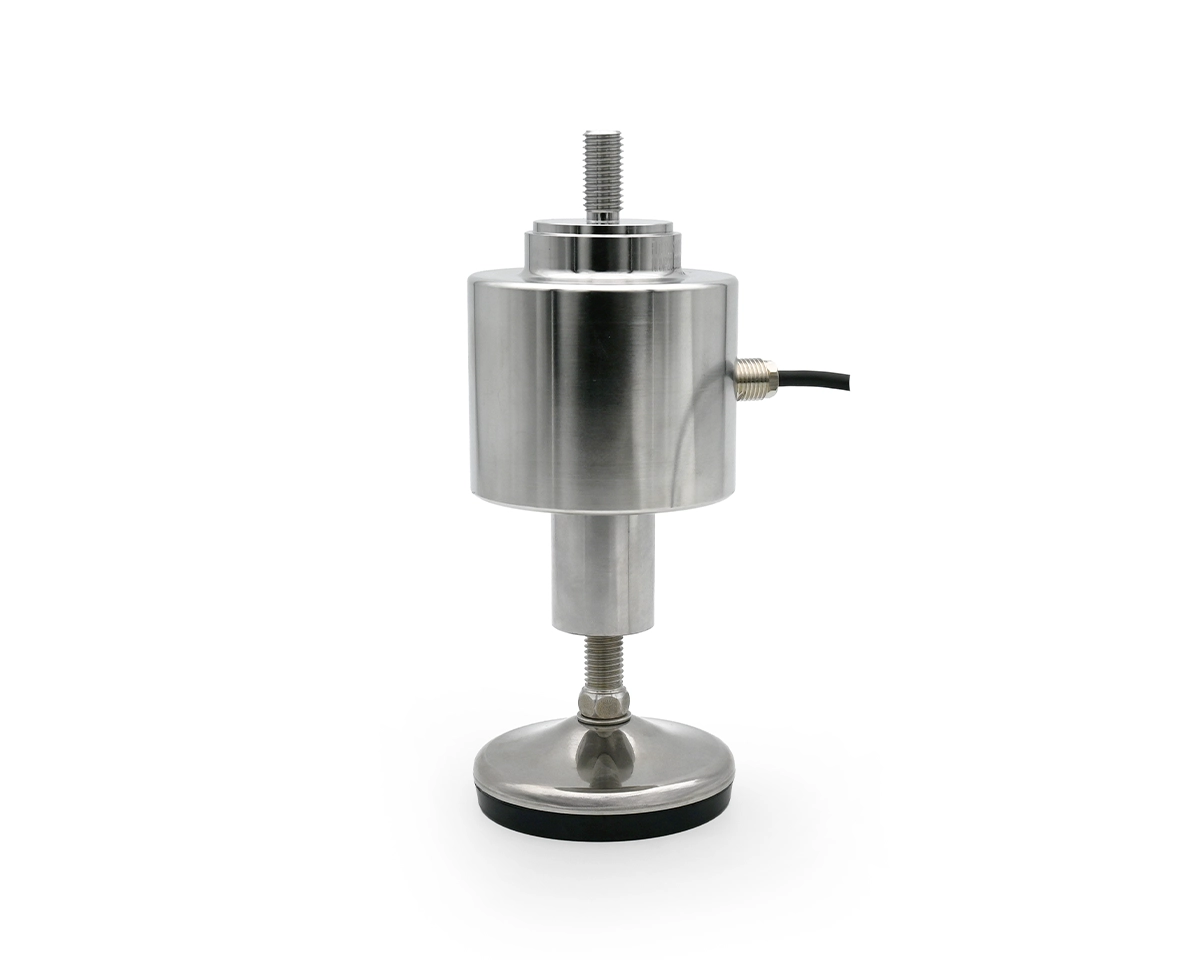

Pressure load cell for machine base, installation length 143 mm, connection thread M12, housing diameter Ø 78 mm, max load 300 kg, combinable with all levelling feet.
- Material: Stainless steel 17-4 ph
- Combined error: <= +/-0.07%
- Protection class: IP67
- Height adjustable
- Material: Stainless steel 17-4 ph
- Combined error: <= +/-0.07%
- Protection class: IP67
- Height adjustable
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
