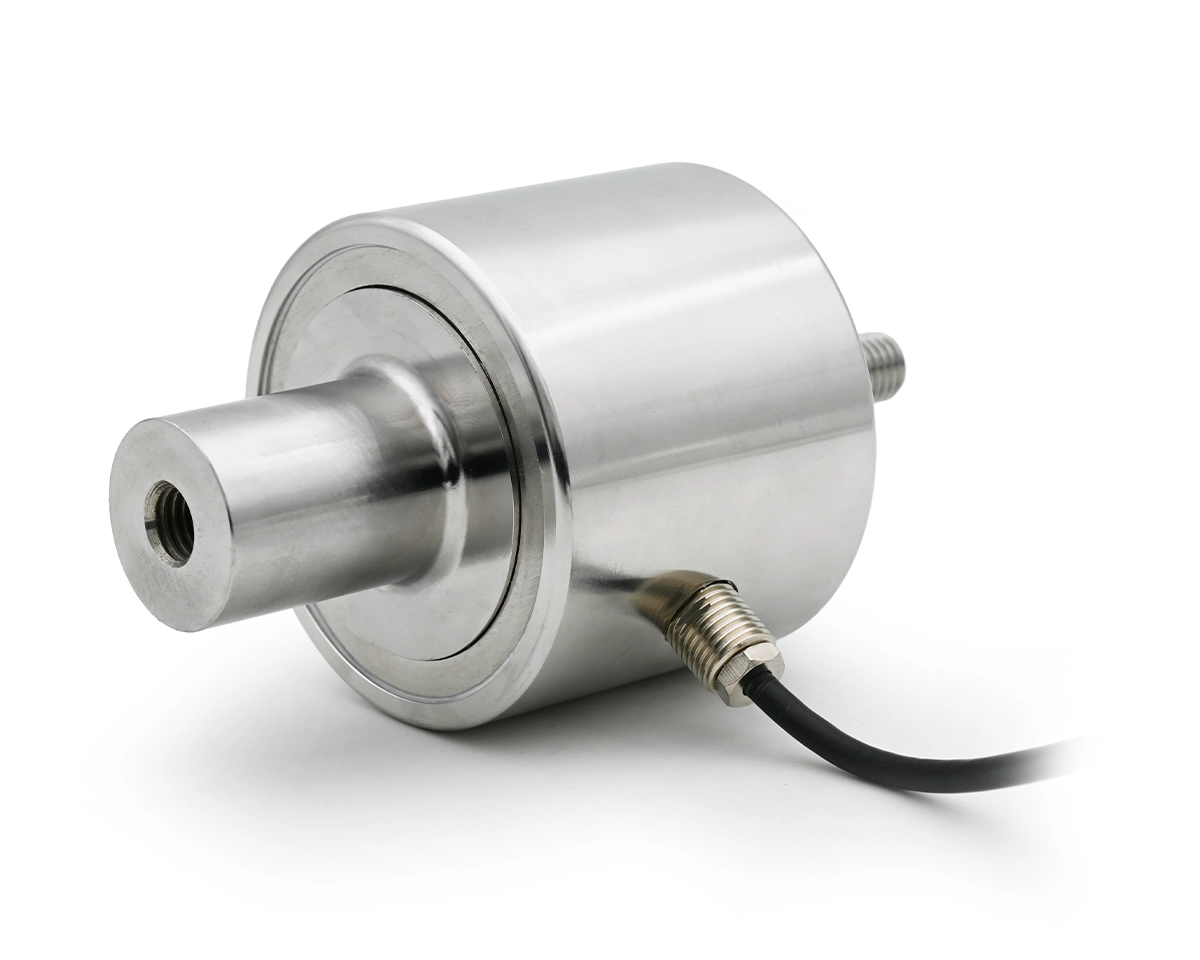

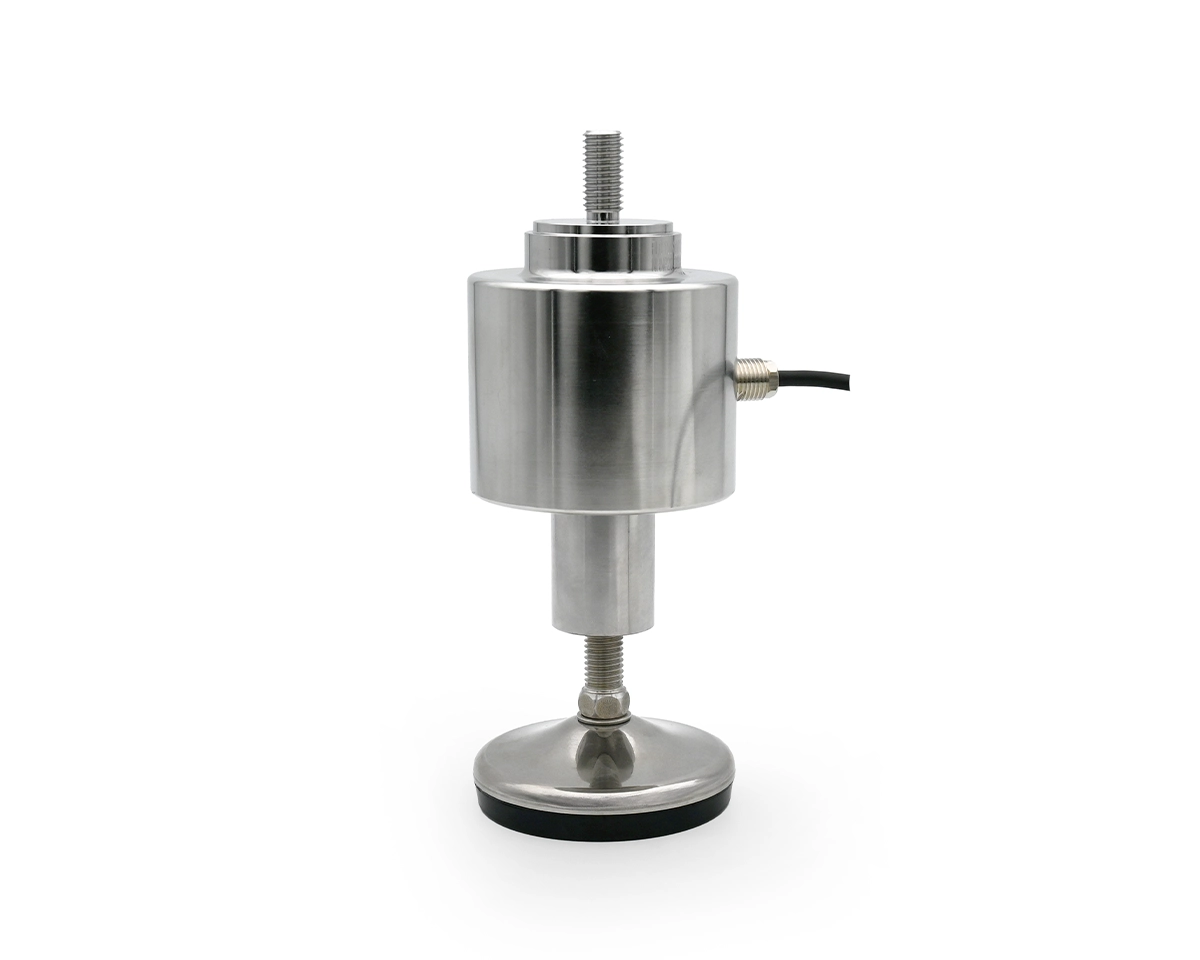

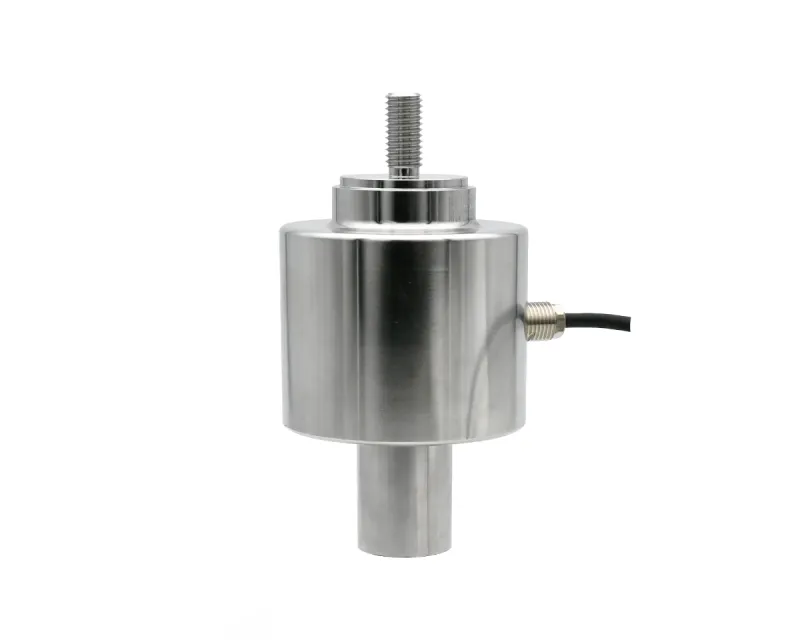

Load cell 2 tons for machine base, connection thread M12
EAN
4061408157624
Type
458FLC2000
Discover our robust 2-ton load cell for machine bases, featuring an IP67-rated stainless steel design, precise accuracy of ±0.07%, and compatibility with all Martin leveling feet.
€283.50
Content:
1 pieces
Currently sold out, Refill time: 10 days
Our payment methods:
Invoice
Prepayment
PayPal
Product properties
| Material: | Stainless steel AISI304 |
| Diameter: | 78 |
| Thread: | M12 |
| Rated Load: | 2,000 kg |
| Application: | Hygiene |
| Class: | IP67 |
Technical drawing
Pressure load cell for machine base, installation length 143 mm, connection thread M12, housing diameter Ø 78 mm, max. load 2000 kg, combinable with all Martin levelling feet.
- Material: Stainless steel 17-4 ph
- Combined error: <= +-0.07%
- Protection class: IP67
- Height adjustable
- Material: Stainless steel 17-4 ph
- Combined error: <= +-0.07%
- Protection class: IP67
- Height adjustable
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
