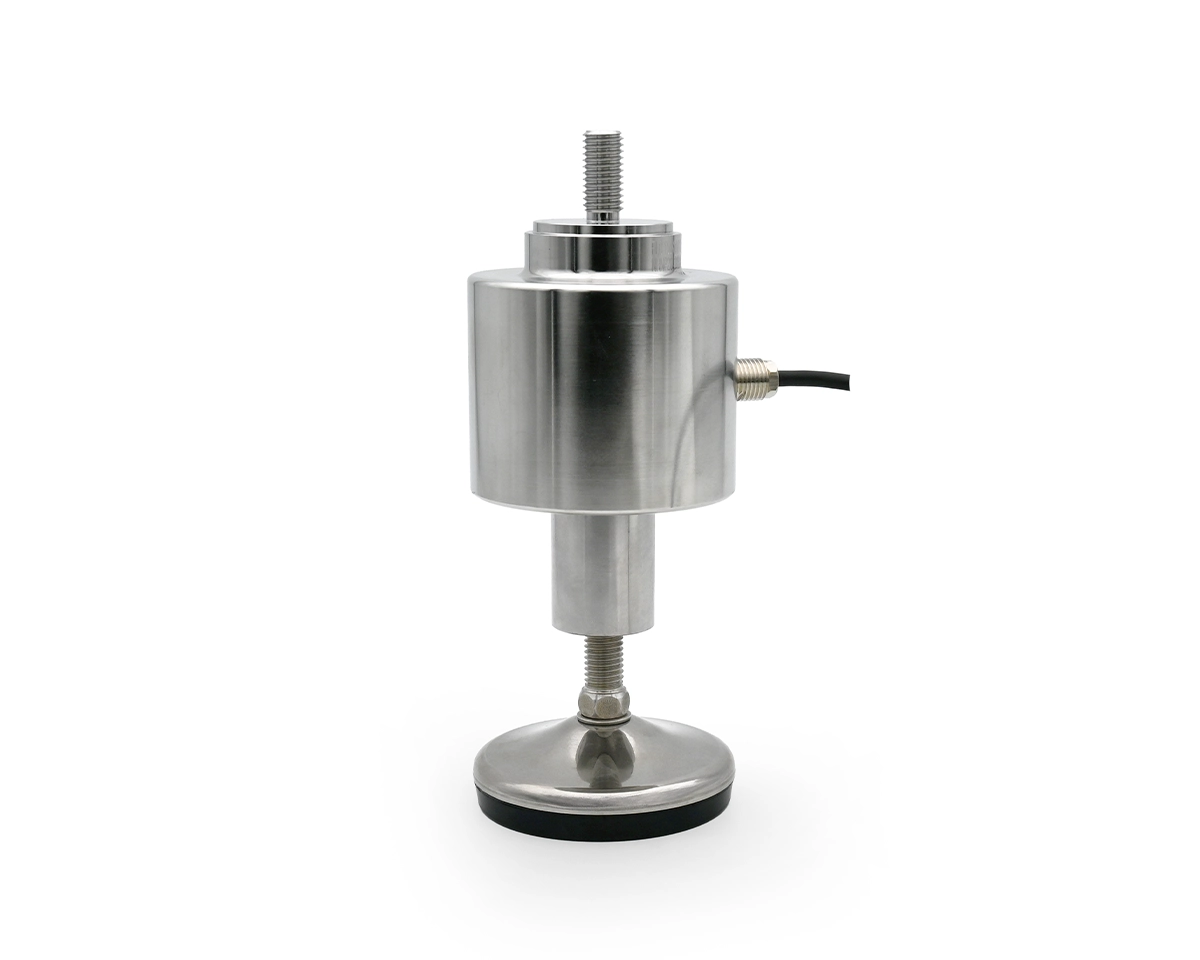

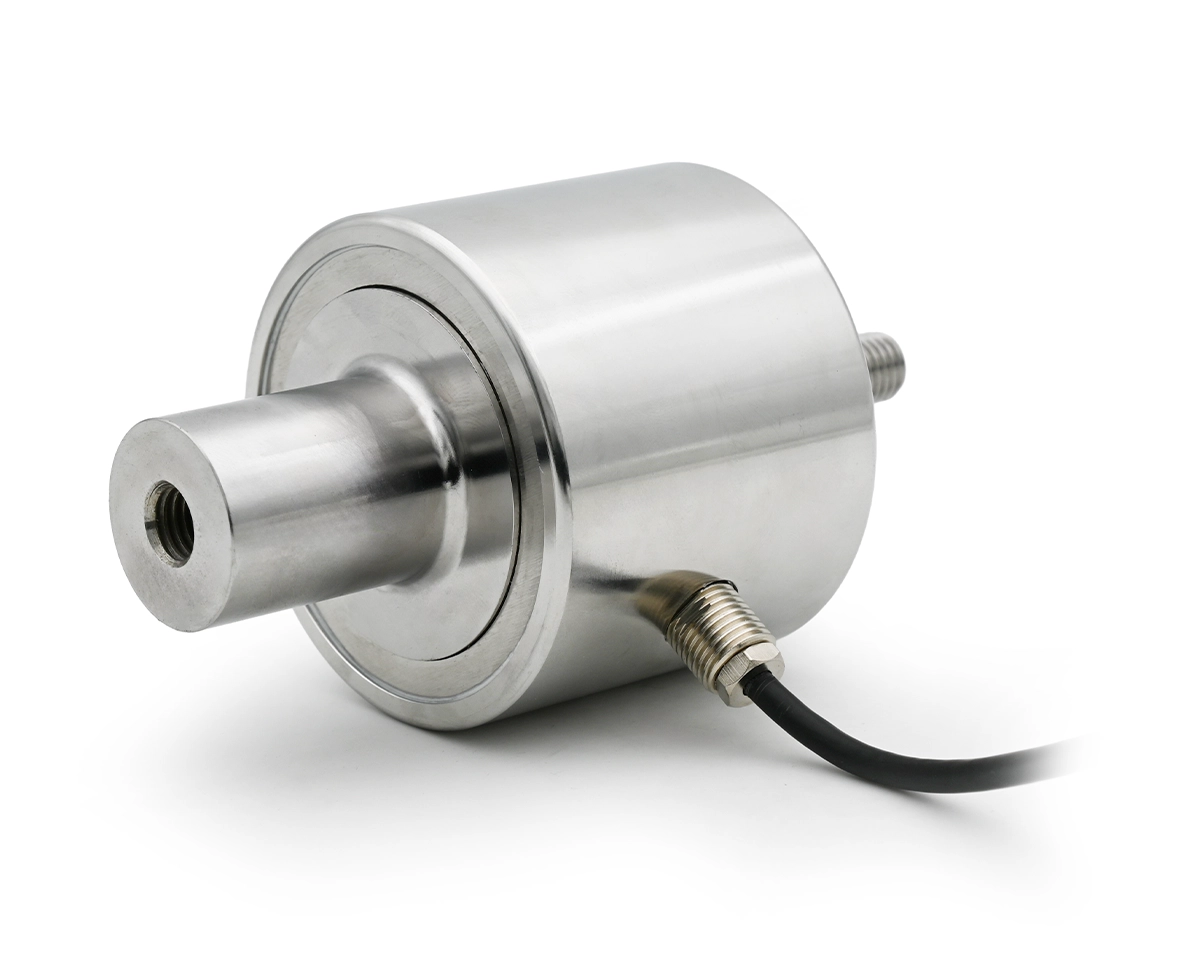

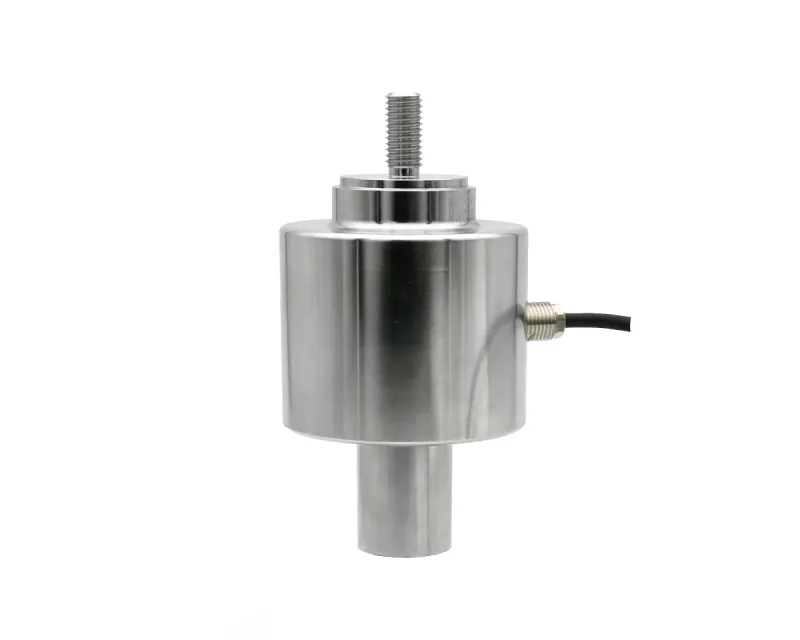

Load cell 150 kg for machine base, connection thread M12
EAN
4061408157587
Type
458FLC150
Discover our high-performance 150 kg load cell, designed for machine bases with M12 connection. Featuring stainless steel construction, IP67 protection, and exceptional precision of +/-0.07%, it’s ideal for hygienic applications.
€283.50
Content:
1 pieces
Currently sold out, Refill time: 10 days
Our payment methods:
Invoice
Prepayment
PayPal
Product properties
| Material: | Stainless steel AISI304 |
| Diameter: | 78 |
| Thread: | M12 |
| Rated Load: | 150 kg |
| Application: | Hygiene |
| Class: | IP67 |
Technical drawing
Pressure load cell for machine base, installation length 143 mm, connection thread M12, housing diameter Ø 78 mm, max load 150 kg, combinable with all levelling feet.
- Material: Stainless steel 17-4 ph
- Combined error: <= +/-0.07%
- Protection class: IP67
- Height adjustable
- Material: Stainless steel 17-4 ph
- Combined error: <= +/-0.07%
- Protection class: IP67
- Height adjustable
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
