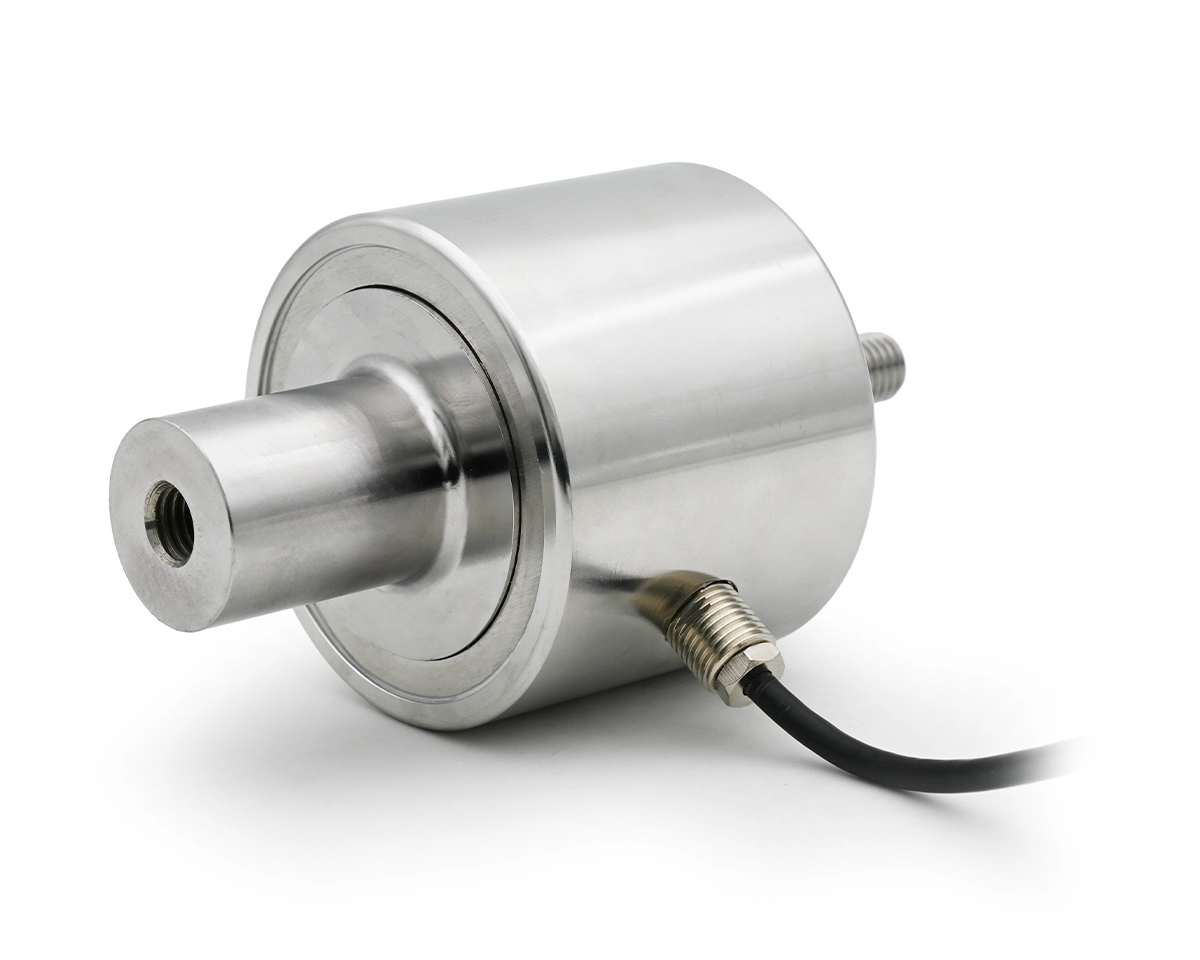

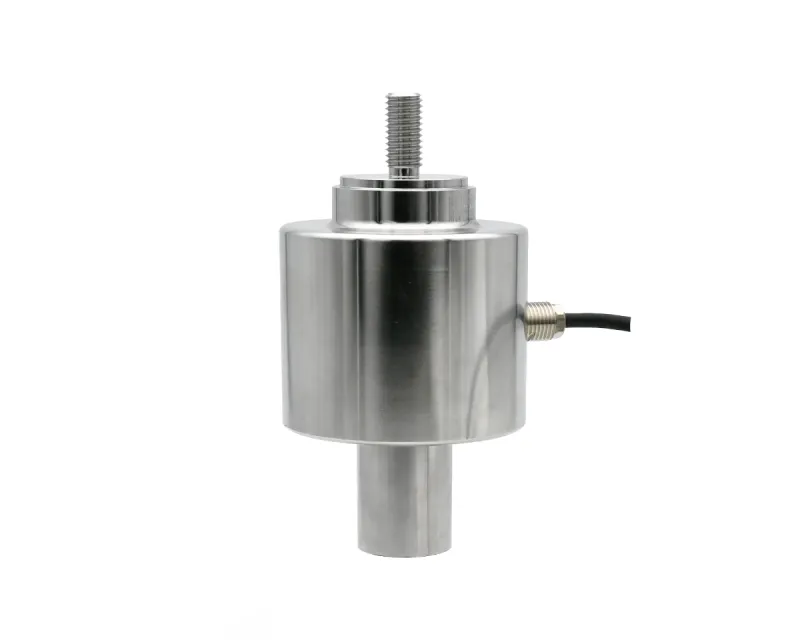

Load cell 10 ton for machine base, connection thread M24
EAN
4061408157648
Type
458FLC10000
Discover our 10-ton load cell, designed for machine bases, featuring a robust stainless steel construction, IP67 protection, and high precision with a combined error of only +/-0.07%. Ideal for hygienic applications.
€394.47
Content:
1 pieces
Currently sold out, Refill time: 10 days
Our payment methods:
Invoice
Prepayment
PayPal
Product properties
| Diameter: | 78 |
| Thread: | M24 |
| Rated Load: | 10,000 kg |
| Application: | Hygiene |
| Class: | IP67 |
Technical drawing

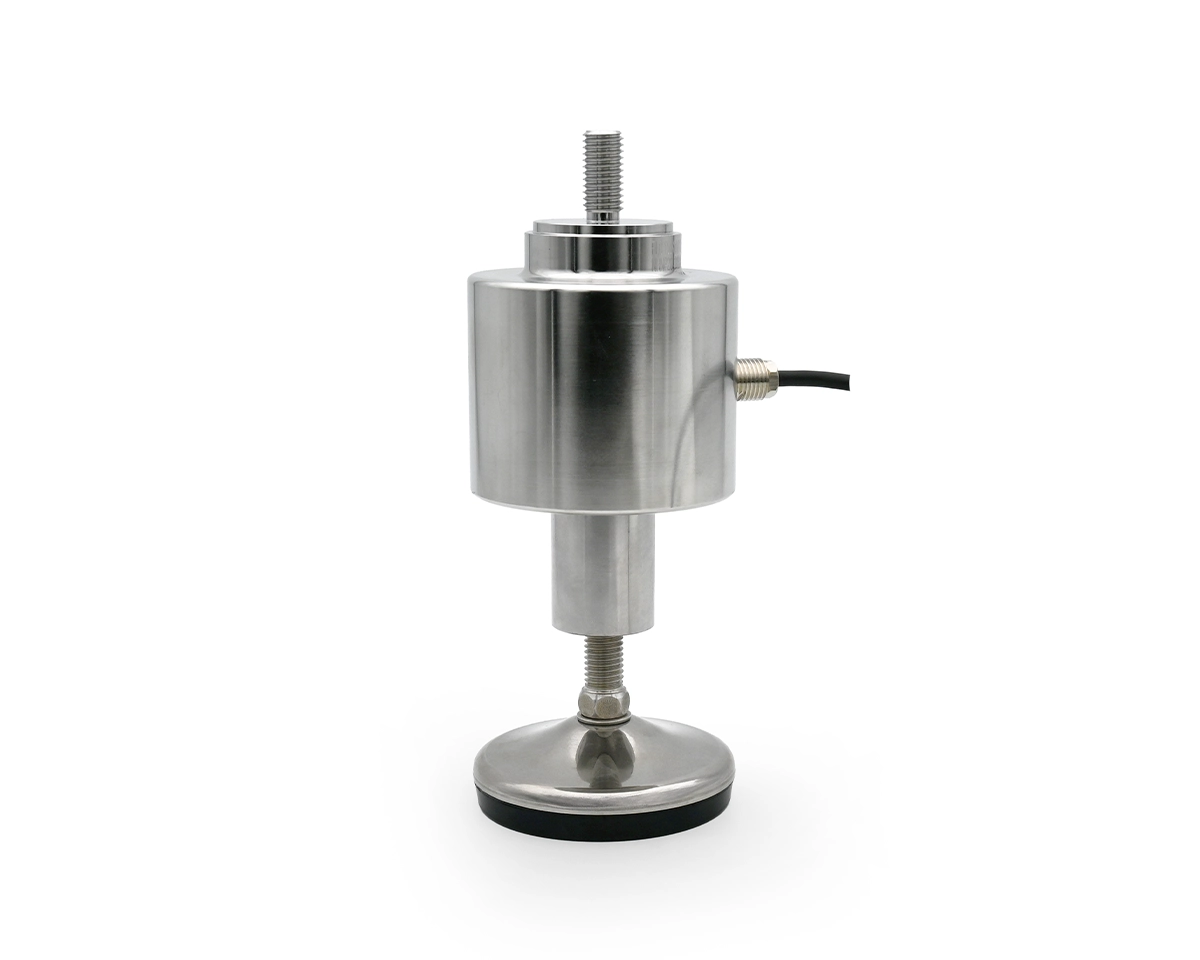

Pressure load cell for machine base, installation length 143 mm, connection thread M24, housing diameter Ø 78 mm, max. load 10000 kg, combinable with all levelling feet.
- Material: Stainless steel 17-4 ph
- Combined error: <= +/-0.07%
- Protection class: IP67
- Height adjustable
- Material: Stainless steel 17-4 ph
- Combined error: <= +/-0.07%
- Protection class: IP67
- Height adjustable
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
