Levelling foot TEKNOFIX, Ø 68 mm Steel, M27x2 x 93 mm, phosphated
The TEKNOFIX levelling foot features a durable steel construction with a 68 mm diameter and M27x2 thread, supporting static loads up to 65,000 N, ideal for robust applications.
| Quantity | Price |
|---|---|
| From 1 |
€24.73*
|
| From 5 |
€23.48*
|
| From 15 |
€22.69*
|
| From 50 |
€21.91*
|
Currently sold out, Refill time: 5 days
Product properties
| Footplate material: | Steel |
| Anti-slip: | No |
| Ø range base plate (mm): | 51-70 |
| Vibration damping: | no |
| Material spindle: | Steel |
| Ø spindle (mm): | 27 |
| Spindle length (mm): | 93 |
| Balancing angle: | 0° |
| Hygiene: | No |

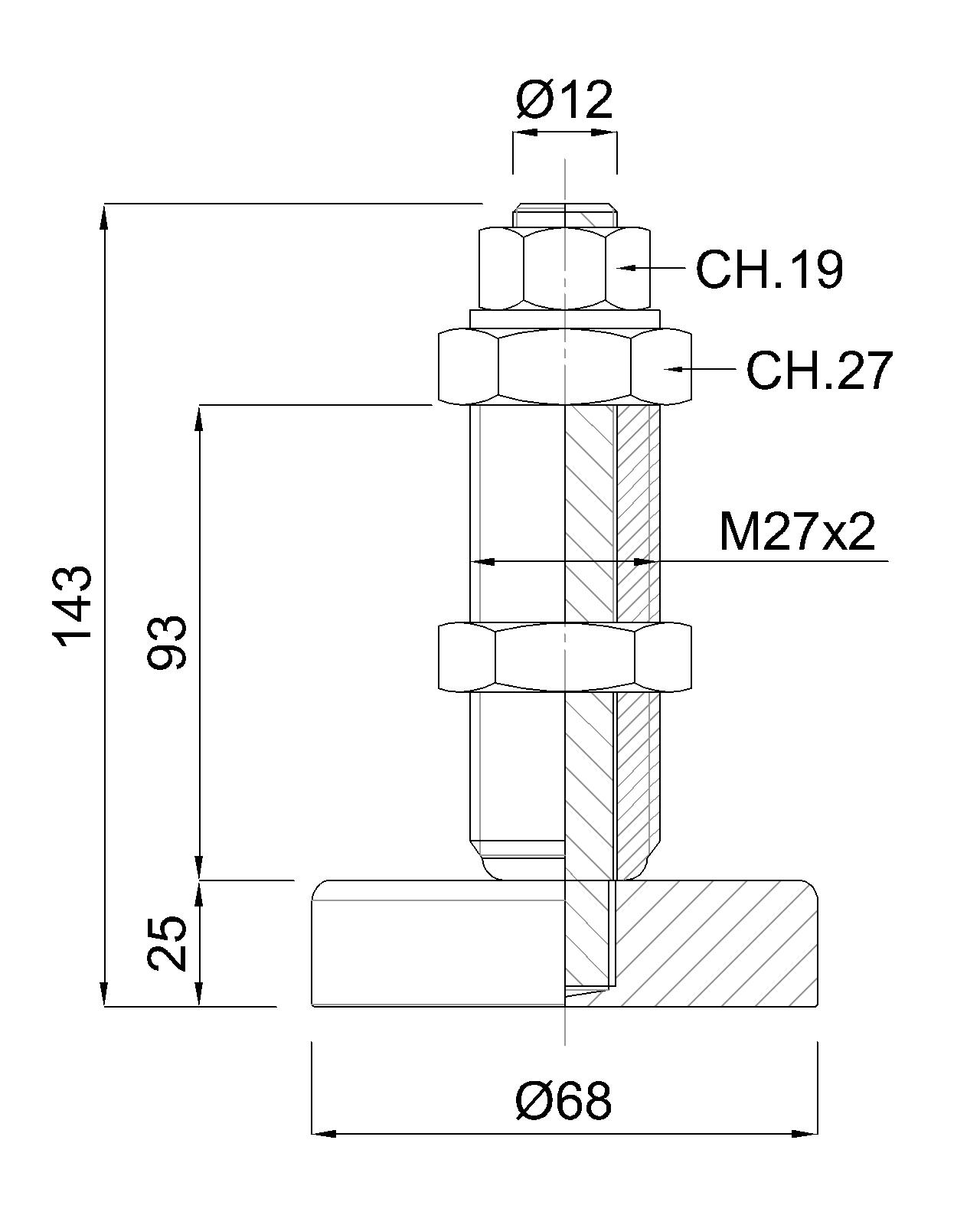

Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
