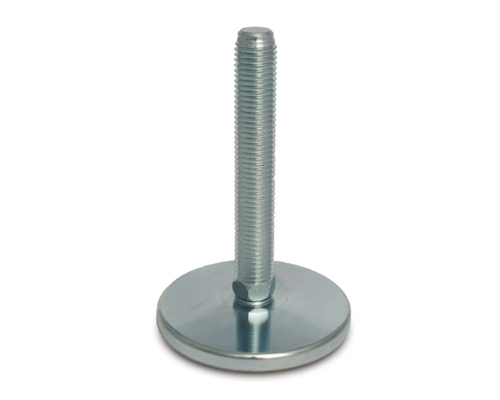

Levelling foot MASSIV Steel, Ø 80 mm, M14 x 100 mm
EAN
4061408156702
Type
45815414
The MASSIV Steel levelling foot, designed with a robust Ø 80 mm base and M14 x 100 mm threaded spindle, offers exceptional strength with a static load capacity of 20,000 N. Ideal for precise adjustments in industrial applications.
| Quantity | Price |
|---|---|
| From 1 |
€11.90*
|
| From 5 |
€11.39*
|
| From 15 |
€11.03*
|
| From 50 |
€10.89*
|
Currently sold out, Refill time: 5 days
Our payment methods:
Invoice
Prepayment
PayPal
Product properties
| Footplate material: | Steel |
| Anti-slip: | No |
| Ø range base plate (mm): | 71-90 |
| Vibration damping: | no |
| Material spindle: | Steel |
| Ø spindle (mm): | 14 |
| Spindle length (mm): | 100 |
| Balancing angle: | 5° |
| Hygiene: | No |
Technical drawing
Levelling foot MASSIV Steel, Ø 80 mm, M14 x 100 mm, Galvanized steel, Total height 119 mm, Articulated screw 5°, Static load 20.000 N
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Download STP file as ZIP
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
