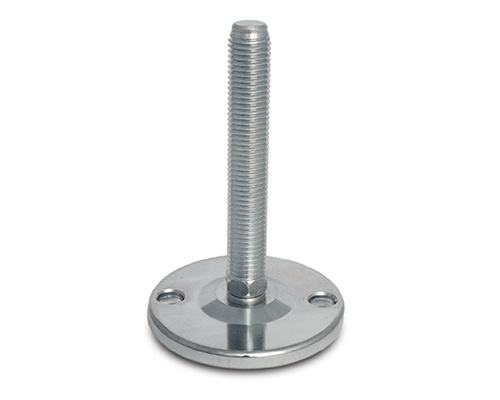

Levelling foot MASSIV Steel, Ø 80 mm, M12 x 50 mm, Drills
EAN
4061408156979
Type
45815500/12
Elevate your engineering solutions with our MASSIV Steel Levelling Foot. Featuring a robust 80 mm base, M12 x 50 mm screw, and a 20,000 N static load capacity, it's designed for precision stability in industrial applications.
| Quantity | Price |
|---|---|
| From 1 |
€11.34*
|
| From 5 |
€10.85*
|
| From 15 |
€10.51*
|
| From 50 |
€10.37*
|
Currently sold out, Refill time: 5 days
Our payment methods:
Invoice
Prepayment
PayPal
Product properties
| Footplate material: | Steel |
| Anti-slip: | No |
| Ø range base plate (mm): | 71-90 |
| Ground fastening: | 2 mounting holes |
| Vibration damping: | no |
| Material spindle: | Steel |
| Ø spindle (mm): | 12 |
| Spindle length (mm): | 50 |
| Balancing angle: | 5° |
| Hygiene: | No |
Technical drawing
Levelling foot MASSIV Steel, Ø 80 mm, M12 x 50 mm, Galvanized steel, Total height 70 mm, Articulated screw 5°, Bore holes Ø 10,5 mm, Static load 20.000 N
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Download STP file as ZIP
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
