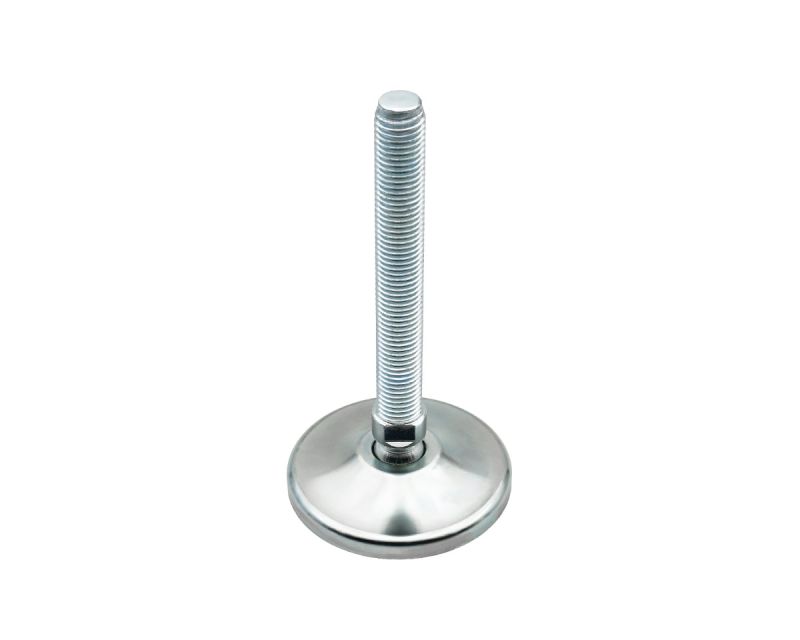

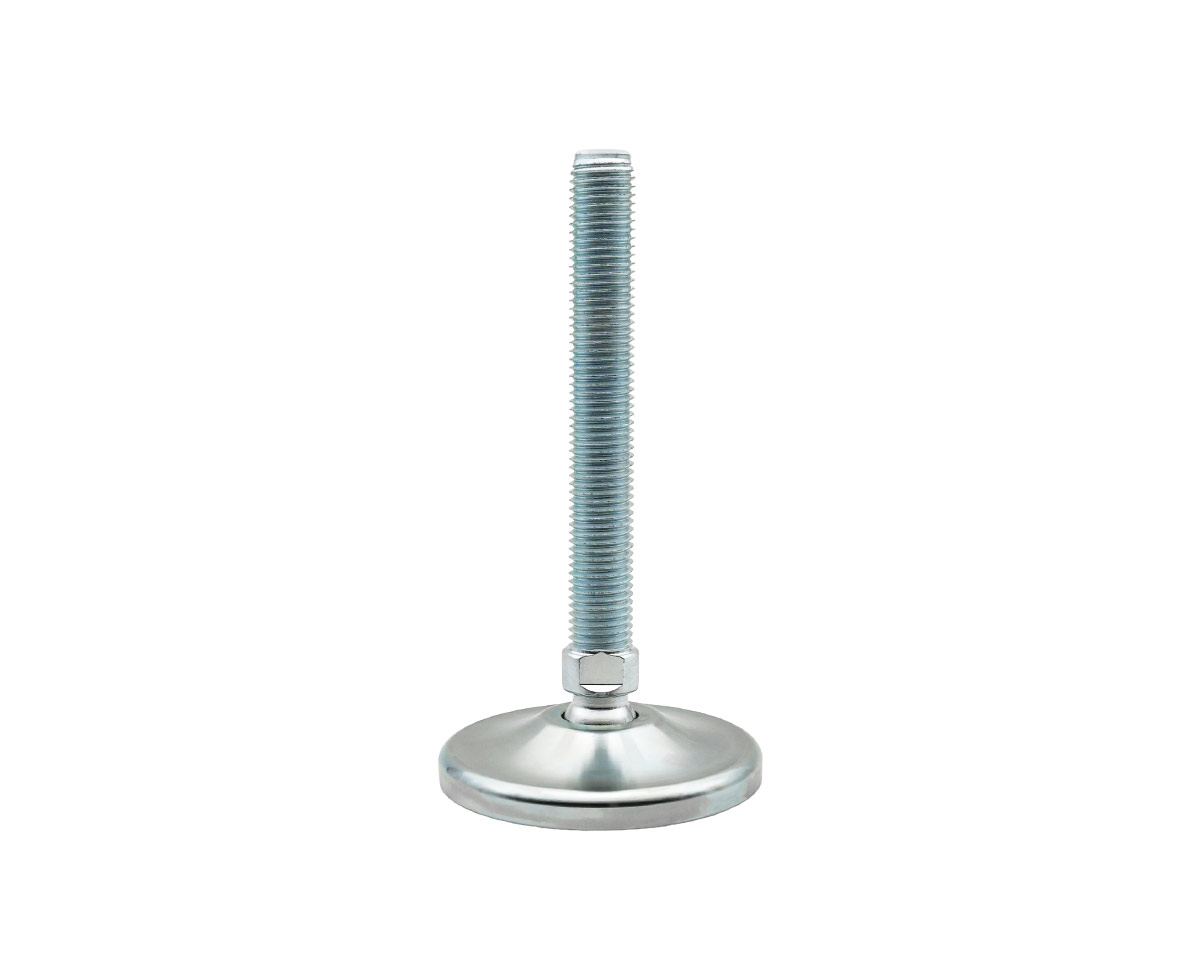

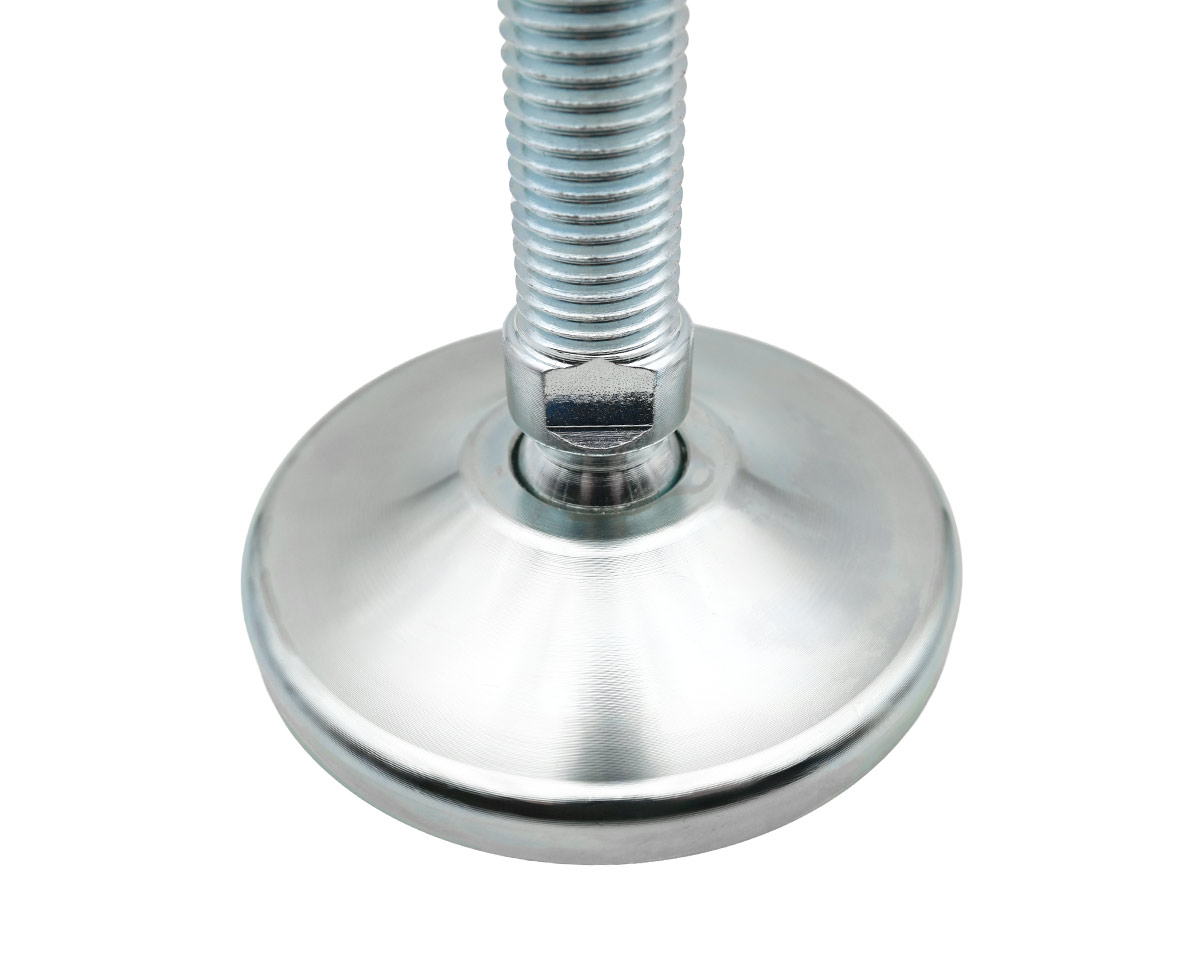

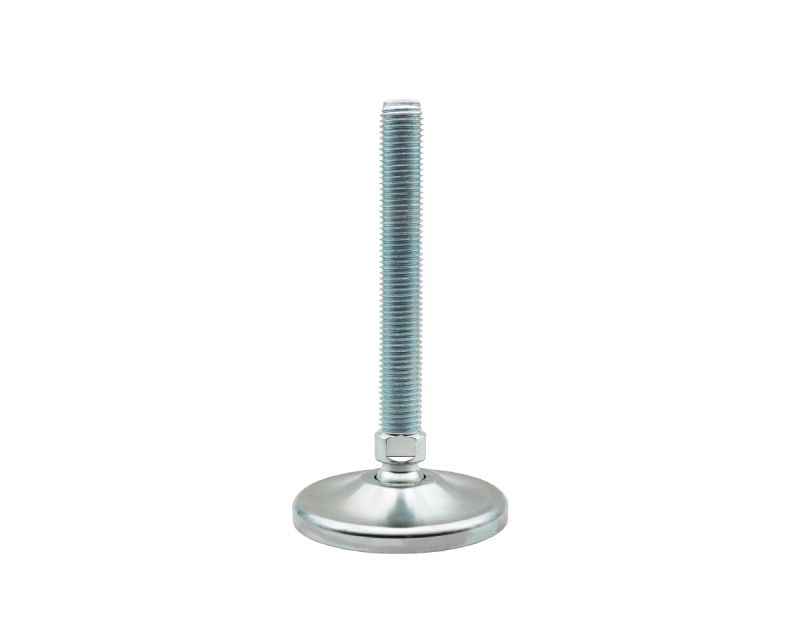

Levelling foot MASSIV Steel, Ø 65 mm, M16 x 150 mm
EAN
4061408142996
Type
45810728/Z
Optimize your installations with the MASSIV Steel Levelling Foot. Featuring a robust galvanized steel design, it supports static loads up to 20,000 N and offers a versatile articulated adjustment of 30°.
| Quantity | Price |
|---|---|
| From 1 |
€11.48*
|
| From 5 |
€11.00*
|
| From 15 |
€10.65*
|
| From 50 |
€10.51*
|
Currently sold out, Refill time: 5 days
Our payment methods:
Invoice
Prepayment
PayPal
Product properties
| Footplate material: | Steel |
| Anti-slip: | No |
| Ø range base plate (mm): | 51-70 |
| Vibration damping: | no |
| Material spindle: | Steel |
| Ø spindle (mm): | 16 |
| Spindle length (mm): | 150 |
| Balancing angle: | 30° |
| Hygiene: | No |

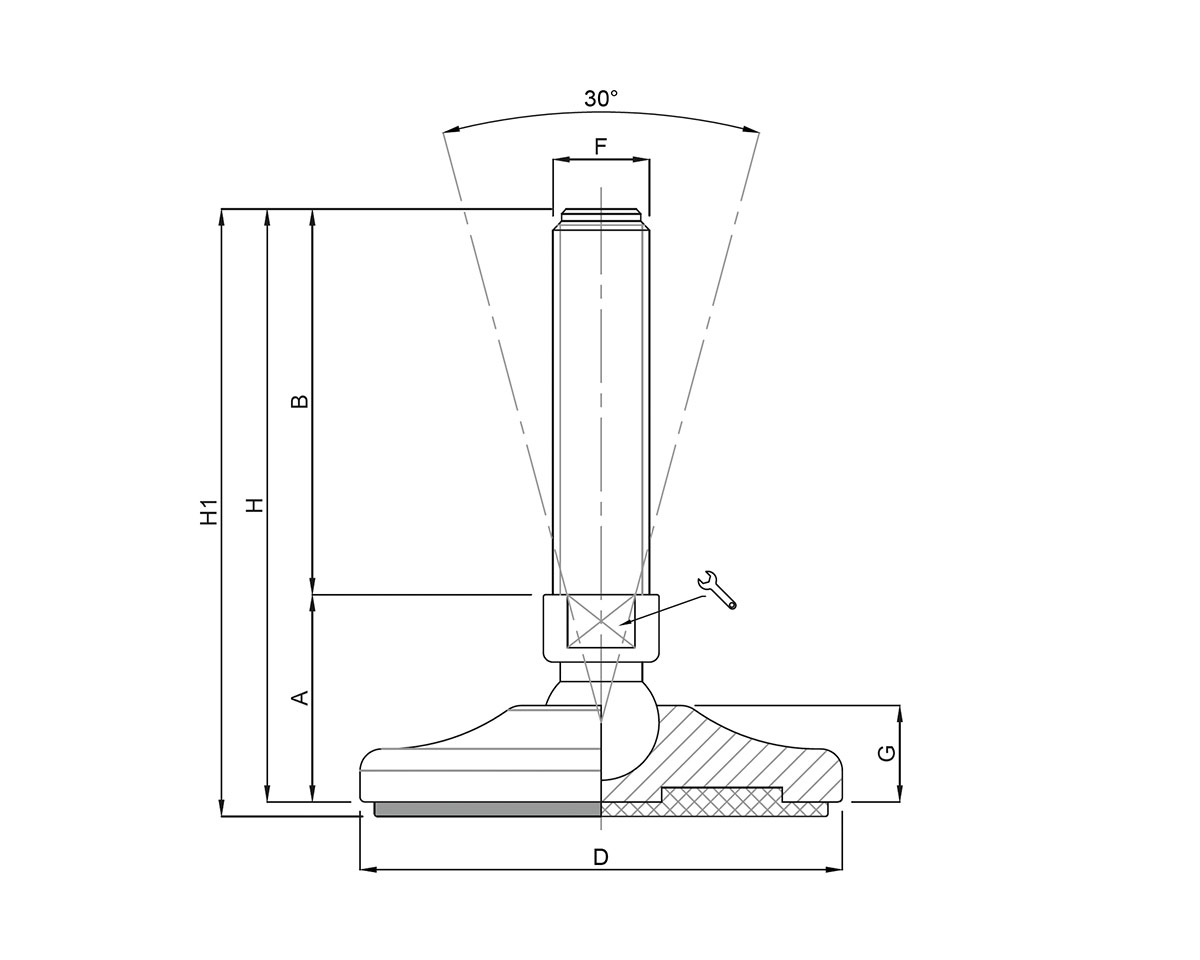

Technical drawing
Levelling foot MASSIV Steel, Ø 65 mm, M16 x 150 mm, Galvanized steel, Total height 180 mm, Articulated screw 30°, Static load 20.000 N
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Download STP file as ZIP
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
