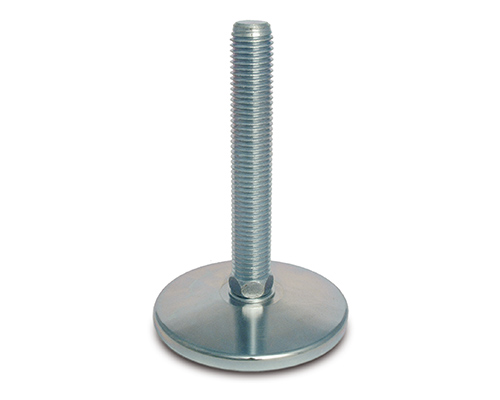

Levelling foot MASSIV Steel, Ø 120 mm, M16 x 75 mm
EAN
4061408156726
Type
45815434
Ensure stability and precision with the MASSIV Steel Levelling Foot. Designed for heavy loads up to 35,000 N, it features a durable galvanized steel construction, ensuring longevity in demanding environments.
| Quantity | Price |
|---|---|
| From 1 |
€14.60*
|
| From 5 |
€13.98*
|
| From 15 |
€13.54*
|
| From 50 |
€13.36*
|
Currently sold out, Refill time: 5 days
Our payment methods:
Invoice
Prepayment
PayPal
Product properties
| Footplate material: | Steel |
| Anti-slip: | No |
| Ø range base plate (mm): | 111-130 |
| Material spindle: | Steel |
| Ø spindle (mm): | 16 |
| Spindle length (mm): | 75 |
| Balancing angle: | 5° |
| Hygiene: | No |
Technical drawing
Levelling foot MASSIV Steel, Ø 120 mm, M16 x 75 mm, Galvanized steel, Total height 103 mm, Articulated screw 5°, Static load 35.000 N
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Download STP file as ZIP
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
