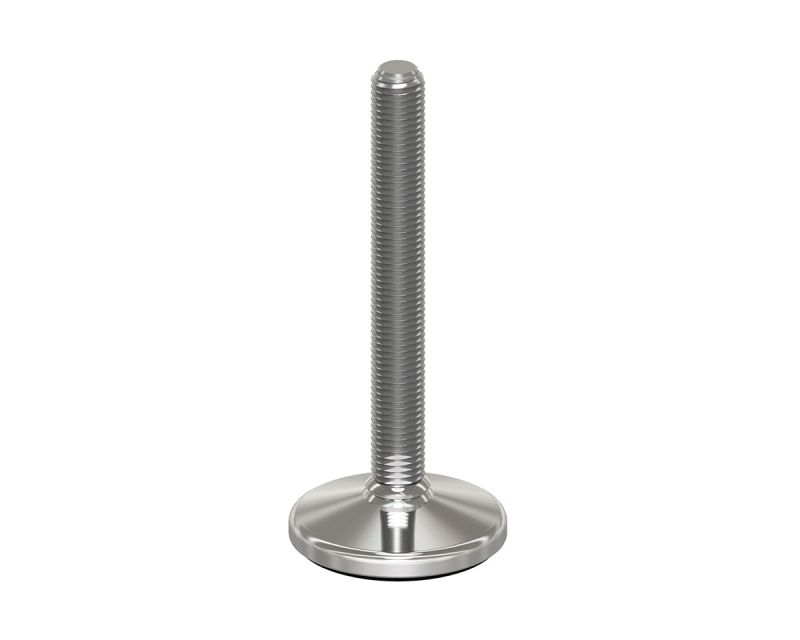

Levelling foot MASSIV Stainless Steel, Ø 80 mm, M20 x 175 mm, NBR
EAN
4061408147601
Type
45820153
Discover the MASSIV Stainless Steel Levelling Foot, featuring an 80 mm diameter and a robust M20 x 175 mm spindle. Engineered for dynamic stability with a 15° articulated screw and a static load capacity of 35,000 N, it ensures precision alignment in demanding applications.
| Quantity | Price |
|---|---|
| From 1 |
€31.85*
|
| From 13 |
€29.92*
|
| From 25 |
€27.99*
|
| From 50 |
€26.63*
|
Currently sold out, Refill time: 5 days
Our payment methods:
Invoice
Prepayment
PayPal
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 71-90 |
| Vibration damping: | no |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 20 |
| Spindle length (mm): | 175 |
| Balancing angle: | 15° |
| Hygiene: | No |

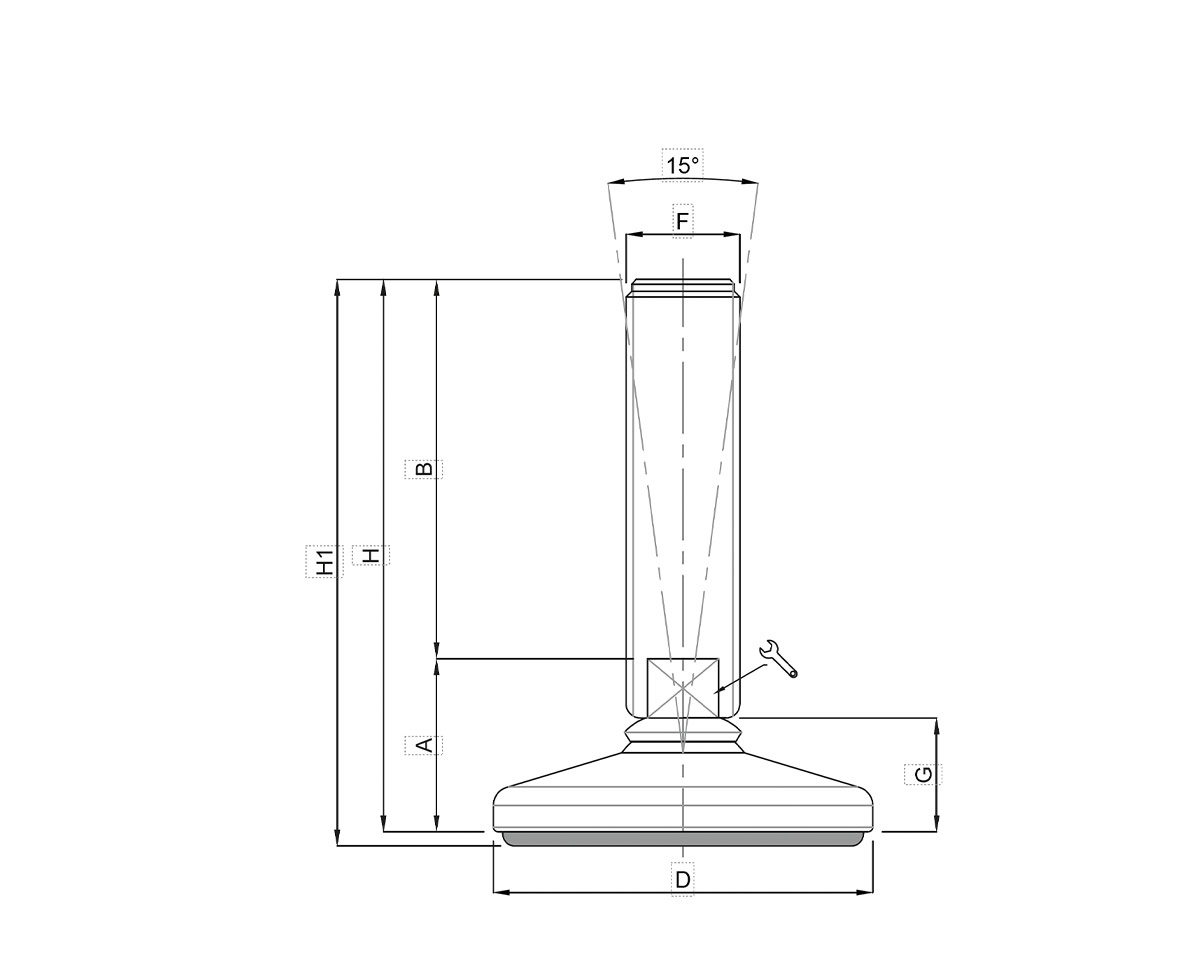

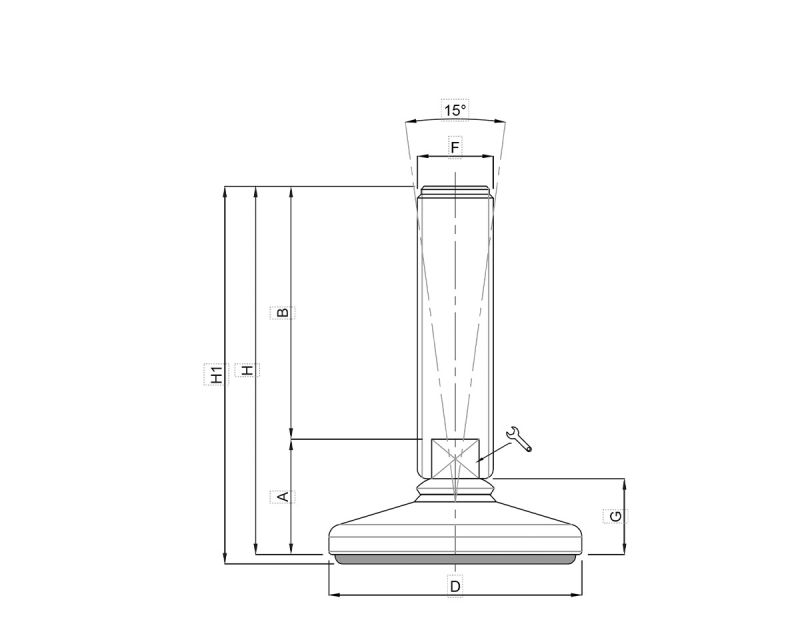

Technical drawing
Levelling foot MASSIV Stainless Steel, Ø 80 mm, M20 x 175 mm, Stainlees steel, Total height 264 mm, Articulated screw 15°, Antislip NBR black Static load 35.000 N
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
