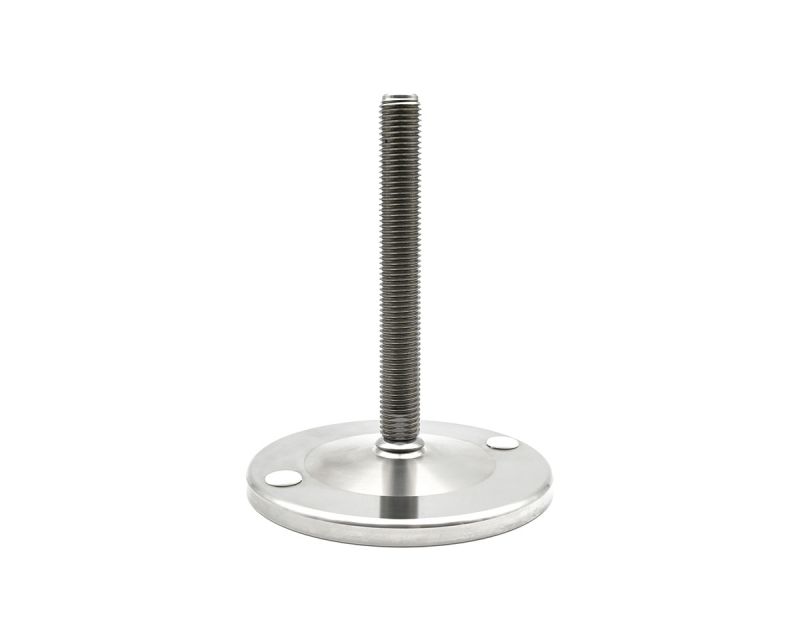

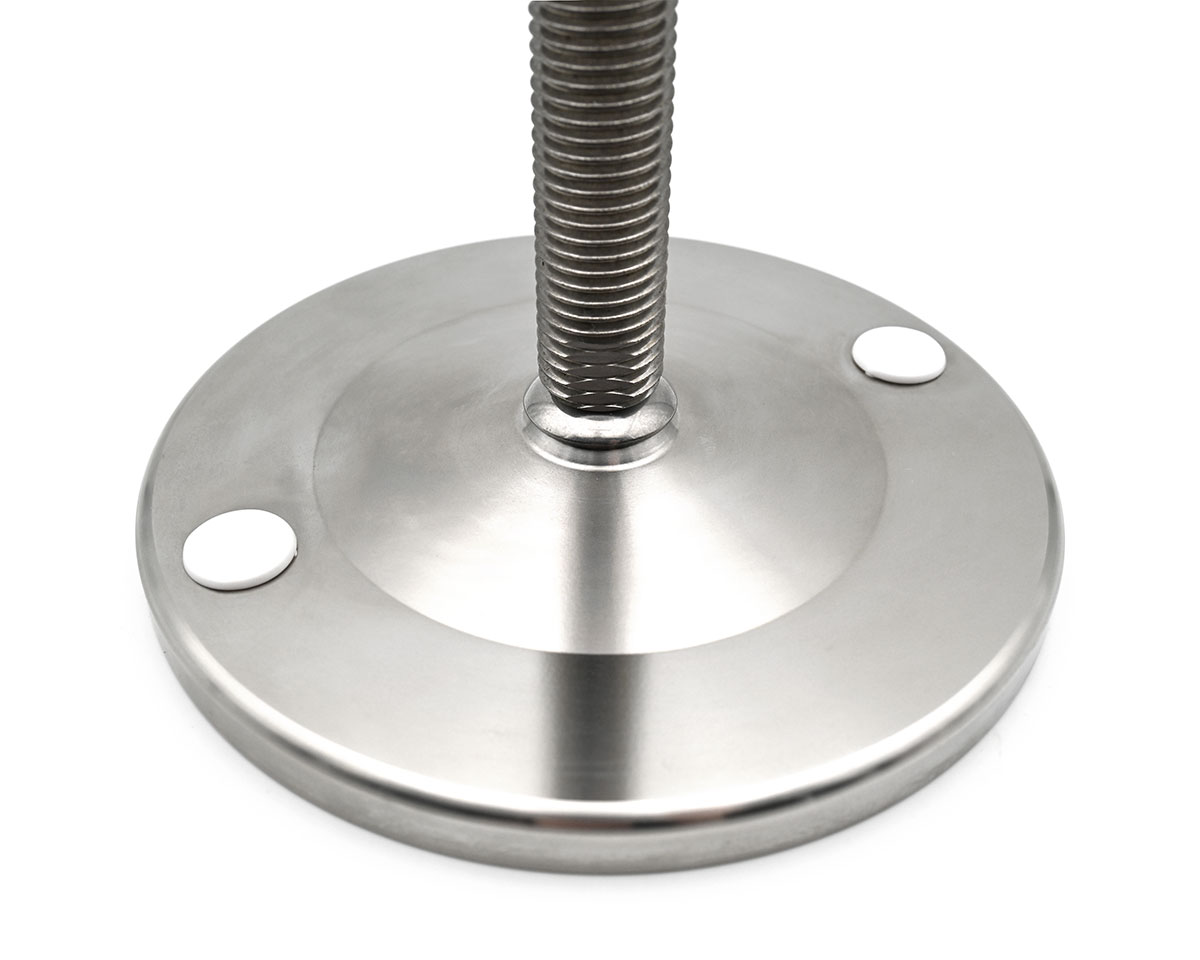

Levelling foot MASSIV Stainless Steel, Ø 120 mm, M20 x 200 mm, Drills, NBR
EAN
4061408154319
Type
45820531F
Elevate your projects with the MASSIV Stainless Steel Levelling Foot. Featuring a robust 120 mm diameter base, M20 x 200 mm spindle, and a 15° adjustable screw, it provides unmatched stability and an impressive static load capacity of 35,000 N.
| Quantity | Price |
|---|---|
| From 1 |
€54.66*
|
| From 13 |
€51.35*
|
| From 25 |
€48.04*
|
| From 50 |
€45.72*
|
Currently sold out, Refill time: 5 days
Our payment methods:
Invoice
Prepayment
PayPal
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 111-130 |
| Ground fastening: | 2 mounting holes |
| Vibration damping: | no |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 20 |
| Spindle length (mm): | 150 |
| Balancing angle: | 15° |
| Hygiene: | No |
Technical drawing
Levelling foot MASSIV Stainless Steel, Ø 120 mm, M20 x 200 mm, Stainlees steel, Total height 236 mm, Articulated screw 15°, Bore holes Ø 12,5 mm, Antislip NBR black, Static load 35.000 N
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
