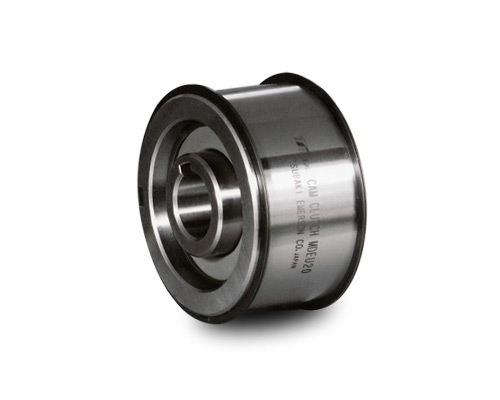

Overrunning cam clutch MDEU 30, 30 x 90 x 50 mm, TSUBAKI
EAN
4061408035250
Type
37MDEU30
Discover the TSUBAKI MDEU 30 overrunning cam clutch, featuring a compact design with a 30 mm bore and a torque capacity of up to 390 Nm, ideal for robust applications.
| Quantity | Price |
|---|---|
| From 1 |
€287.28*
|
| From 4 |
€274.47*
|
| From 50 |
€265.32*
|
Currently sold out, Refill time: 5 days
Our payment methods:
Invoice
Prepayment
PayPal
Product properties
| Ø Shaft: | 30 |
| Torque Nm: | 301 - 700 |
| Centrifugal force lifting: | No |
| Type/Variant: | MDEU |
| Bearing: | No |
Technical drawing
Overrunning cam clutch MDEU 30, TSUBAKI, bore size 30 mm H7, width 50 mm, outside-Ø 90 mm h7, Torque 390 Nm, keyway inner ring 8 x 3,3 mm, keyway outer ring 8 x 4,0 mm
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
