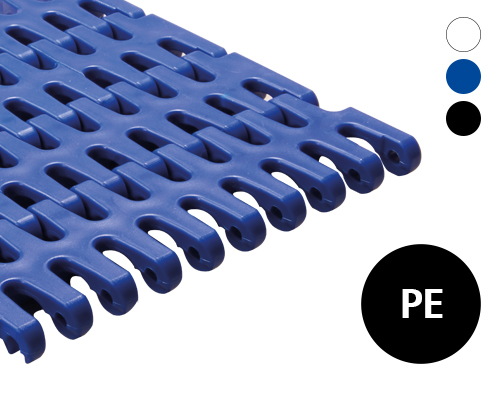

Modular belt 50-801 very open surface, 26 % flow, p=50 PE natural, blue, FDA, USDA, FSIS

EAN 4061408123292

Type 2350801MPE

Introducing the 50-801 modular belt: Featuring a highly open surface for optimal flow at 45%, this FDA and USDA compliant PE belt ensures superior hygiene and efficiency in various applications.

High permeability with a very open surface design, achieving a flow rate of 45% for optimal efficiency in material handling.
Constructed from FDA-approved PE material, ensuring compliance with stringent food safety standards (USDA, FSIS).
Wide hole dimensions (10 x 12 mm) allow for effective drainage and air circulation during operation.
Modular design with a 50 mm pitch, enabling easy customization and adaptability to various conveyor systems.
Durable tensile strength of up to 12000 N/m, providing reliability and longevity in demanding industrial applications.

Price on request

We will inform you of the delivery time with the offer.

Our payment methods:

Product properties

Belt series:	50 8xx
Series - Pitch - Pitch (mm):	50
Material:	PE
Color:	natural / blue
Pulling force N/m belt width:	12000
Permeability:	flow 21 - 40 %
Hygiene:	Yes

Drawing

Product description

Modular plastic belt 50-801 very open surface, 26 % flow, widest hole 10 x 12 mm, p=50 material PE, common colors natural, blue, FDA, USDA, FSIS, width step 20 mm (100, 120....

Custom solutions

We develop customised components exactly as you need them for your application.

Learn more about custom solutions Contact us

Technical documentation

In this section you will find all relevant documents & links for your documentation::

Download data sheet
Certificates & declarations of conformity
