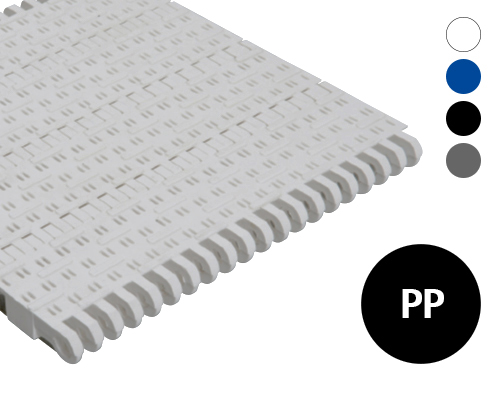

Modular belt 50-610 perforated flat top, 1 mm ribs, 9 % flow, p=50 PP white, blue, grey, FDA, USDA, FSIS

EAN 4061408123148

Type 2350610MPP

Discover the 50-610 modular perforated flat top belt designed for optimal flow (up to 9%) and hygiene, available in FDA-compliant PP materials. Perfect for engineering applications.

Modular design with a pitch of 50 mm, allowing for easy customization and installation across various applications
Constructed from FDA, USDA, and FSIS compliant polypropylene (PP) for safe food handling and processing
Enhanced flow characteristics with perforated flat top and a permeability range of 6-20%, optimizing performance in diverse operational environments
Maximum hole dimensions of 1.5 x 6 mm ensure efficient drainage and product separation
High tensile strength of 24,000 N/m, offering exceptional durability and longevity in demanding industrial settings

Price on request

We will inform you of the delivery time with the offer.

Our payment methods:

Product properties

Belt series:	50 0xx
Series - Pitch - Pitch (mm):	50
Material:	PP
Color:	White / Blue / Grey
Pulling force N/m belt width:	24000
Permeability:	flow 6 - 20 %
Hygiene:	Yes

Drawing

Product description

Modular plastic belt 50-610 perforated flat top, 1 mm ribs, 9 % flow, biggest hole 1,5 x 6 mm,p=50 material PP, common colors white, blue, grey, FDA, USDA, FSIS, width step 10 mm (100, 110....
