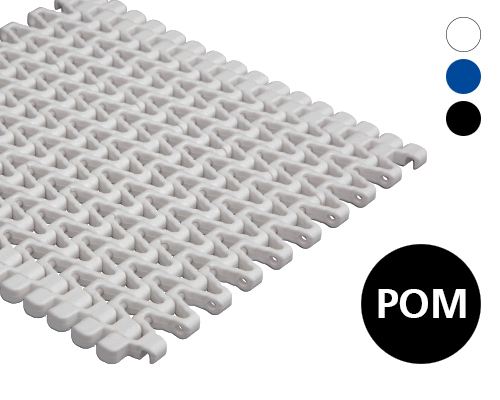

Modular belt 12-401 lattice-shaped, 40 % flow, p=12,5 POM natural, blue, FDA, USDA, FSIS

EAN 4061408122332

Type 2312401MPOM

Discover the 12-401 modular belt, featuring a lattice-shaped design for optimal flow (40%) and outstanding durability. Made from FDA-approved POM material, it's perfect for hygienic applications.

High flow capacity of 40%, ensuring efficient product transportation and optimal process performance
Constructed from FDA, USDA, and FSIS approved POM material, guaranteeing compliance with stringent food safety standards
Lattice-shaped surface design with a maximum hole size of 4 x 8 mm, providing excellent drainage while minimizing product loss
Robust tensile strength of 1450 mN, offering enhanced durability and resistance to wear during demanding applications
Modular design with 12.5 mm pitch and customizable widths of 100 mm and 120 mm, allowing for flexible integration into various systems

Price on request

We will inform you of the delivery time with the offer.

Our payment methods:

Product properties

Belt series:	12 4xx
Series - Pitch - Pitch (mm):	12,5
Material:	POM
Color:	natural / blue
Pulling force N/m belt width:	14500
Permeability:	flow 21 - 40 %
Hygiene:	Yes

Drawing

Product description

Modular plastic belt 12-401 lattice-shaped surface, 40 % flow, biggest hole 4 x 8 mm, p=12,5 material POM, common colors natural, blue, FDA, USDA, FSIS, width step 20 mm (100, 120....

Custom solutions

We develop customised components exactly as you need them for your application.

Learn more about custom solutions Contact us

Technical documentation

In this section you will find all relevant documents & links for your documentation::

Download data sheet
Certificates & declarations of conformity
