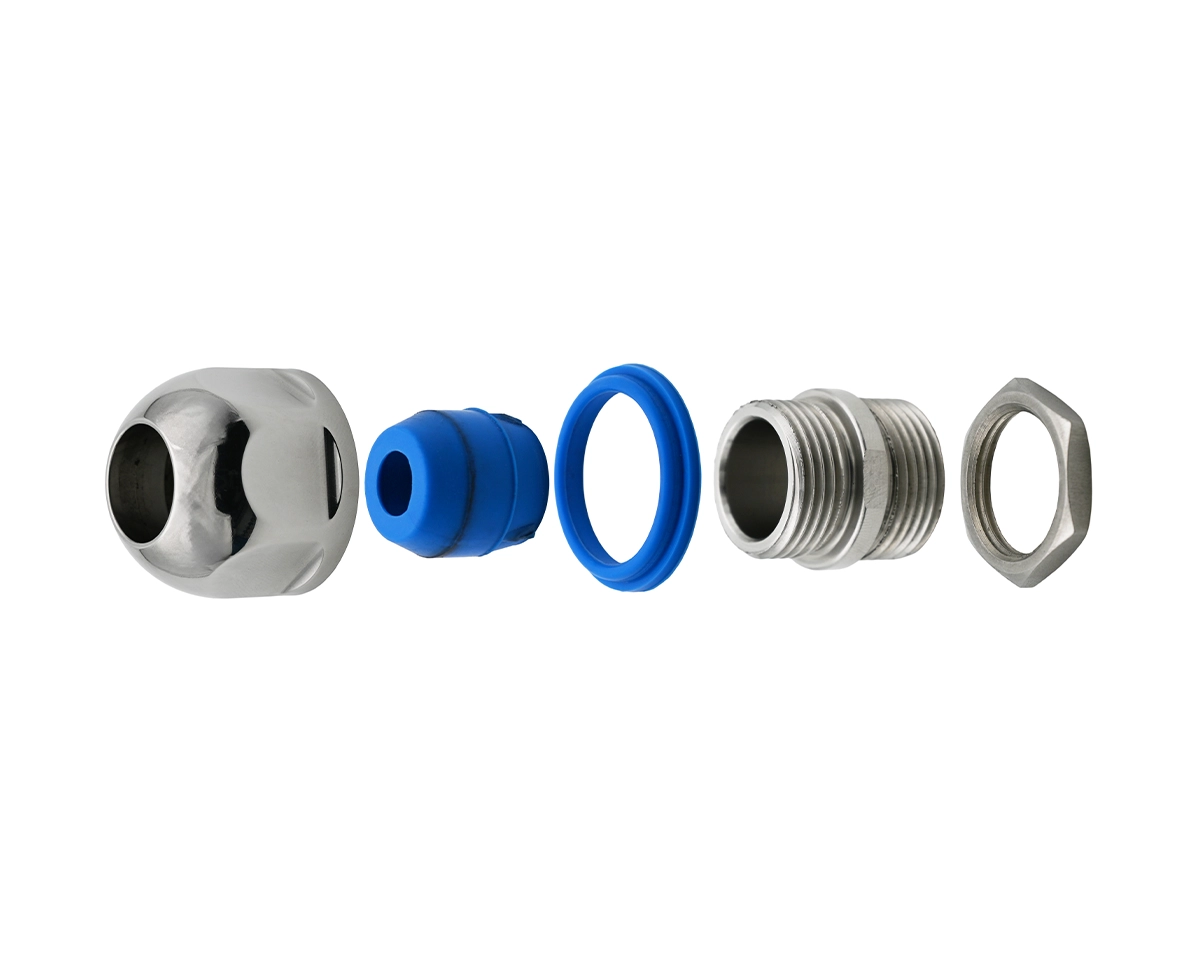

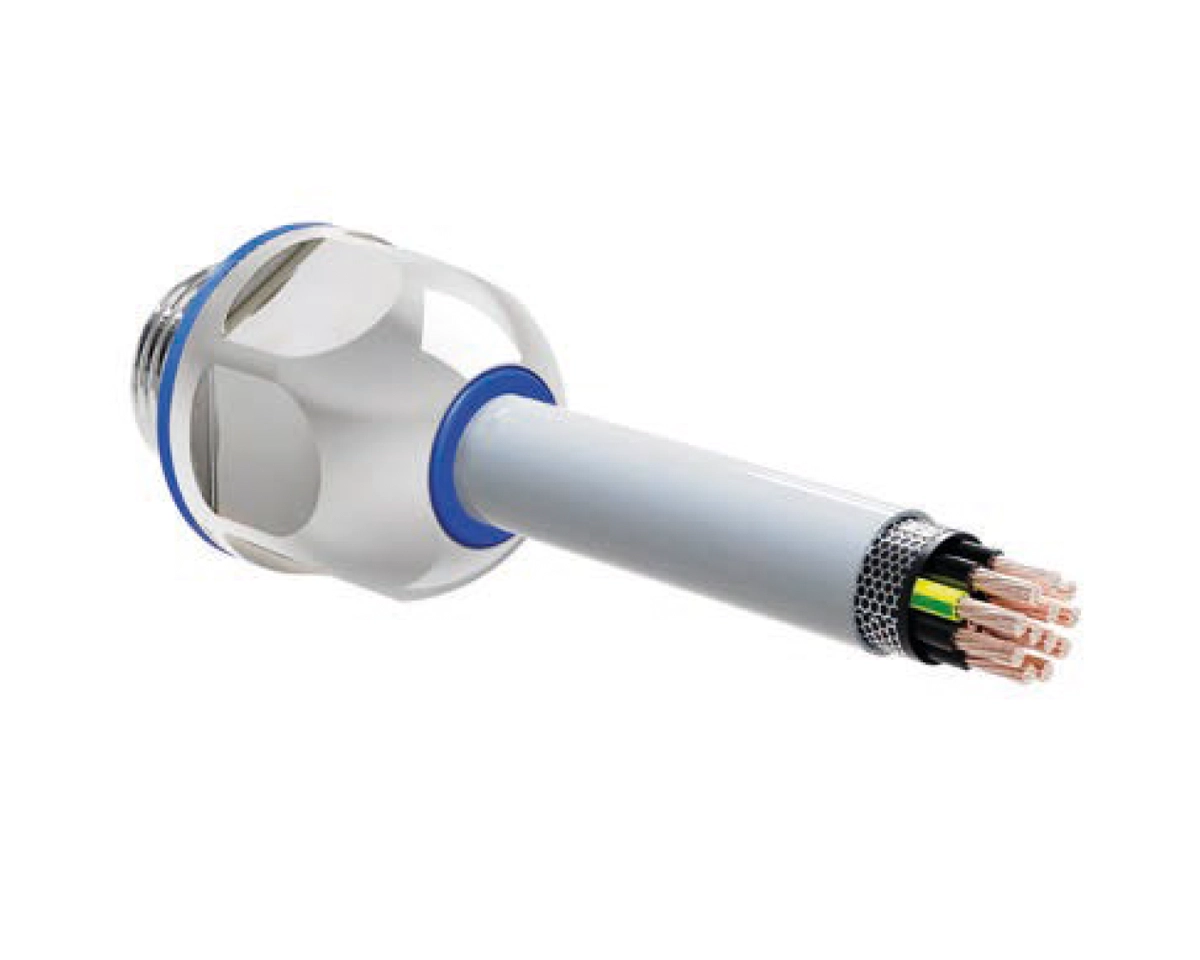

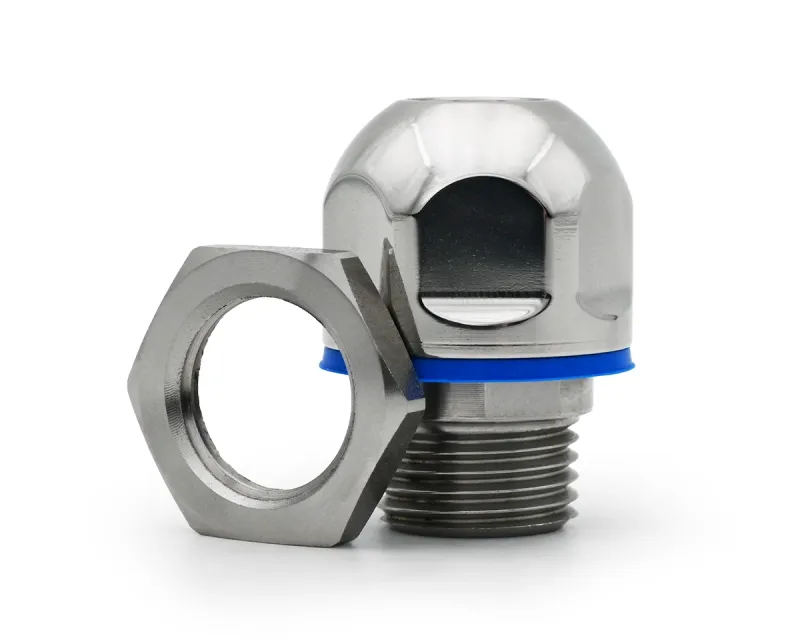

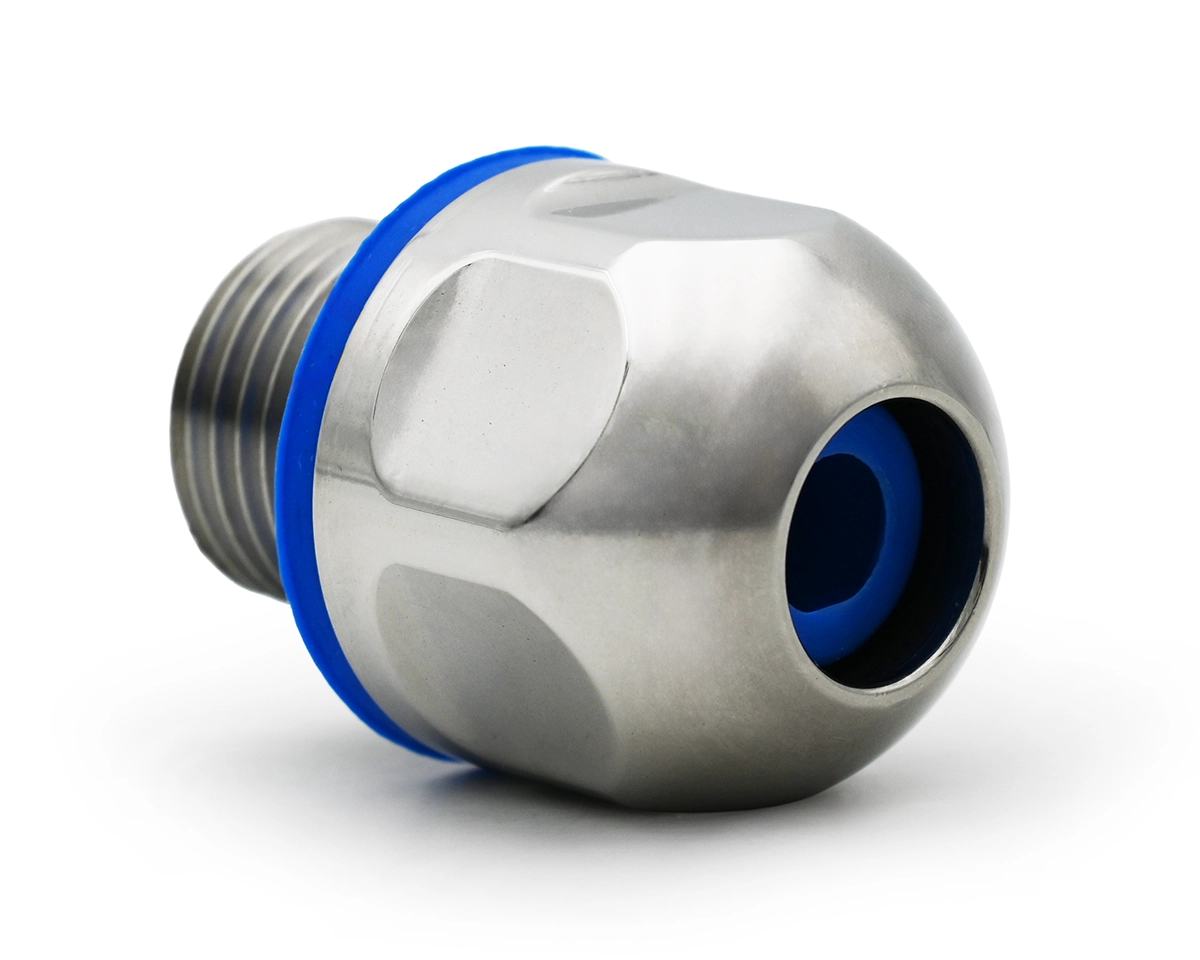

Cable gland, stainless steel, Ø 9-10 mm, M20, IP69K, 3A, AISI304

EAN 4061408156566

Type 458PCD30D10/304/3A

Discover our IP69K stainless steel cable gland, designed for cable diameters of 9-10 mm. Featuring 3-A certification and exceptional waterproofing, it ensures reliable connections in demanding environments.

Robust construction from AISI 304 stainless steel, ensuring durability and resistance to corrosion.
High ingress protection rating of IP69K, suitable for applications requiring high levels of water and dust resistance.
Certified to 3-A Sanitary Standard, making it ideal for hygienic environments such as food and beverage industries.
Designed for cable diameters of Ø 9-10 mm with a secure M20x1.5 connection thread, providing versatile installation options.
High-gloss polished finish enhances aesthetic appeal while maintaining functionality in demanding applications.

€19.24*

Content: 1 pieces

*Prices excl. VAT plus shipping costs

Currently sold out, Refill time: 10 days

€19.24* / piece

Our payment methods:

Product properties

Material:	Stainless steel AISI304
Refinement:	high-gloss polished
Inside diameter / Square:	10
Outer diameter:	30
Spanner width:	27
Height:	25
Thread:	M20x1,5
Particularities:	waterproof
Class:	IP69K
Certification:	3-A Sanitary Standard

Product description

Cable gland, stainless steel, IP69K, 3-A certified, for cable Ø 9-10 mm, stainless stell AISI304, outer part Ø 30 mm, height 25 mm, inner part, connection thread M20x1.5 x 9 mm, 4 pcs.

Custom solutions

We develop customised components exactly as you need them for your application.

Learn more about custom solutions Contact us

Technical documentation

In this section you will find all relevant documents & links for your documentation::

Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
