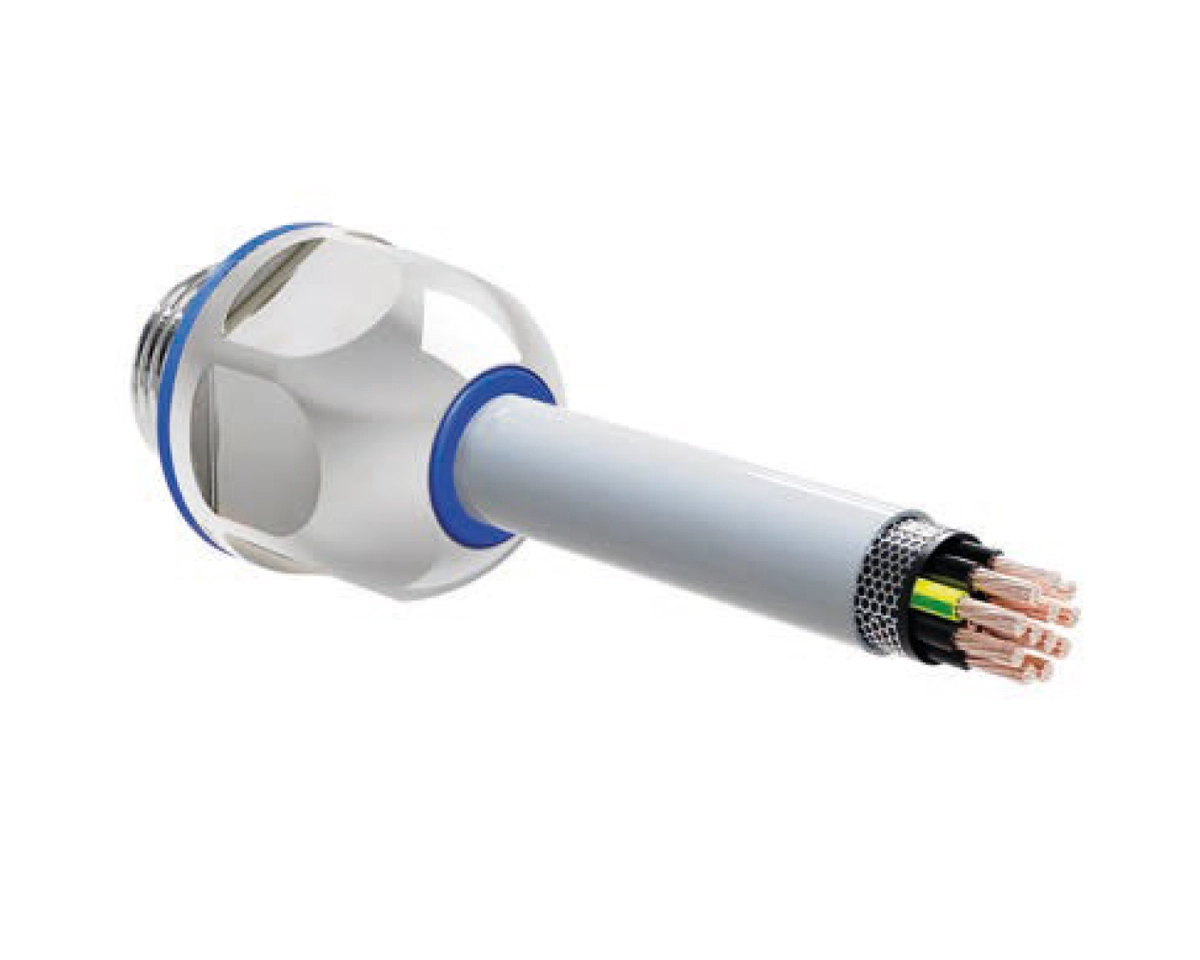

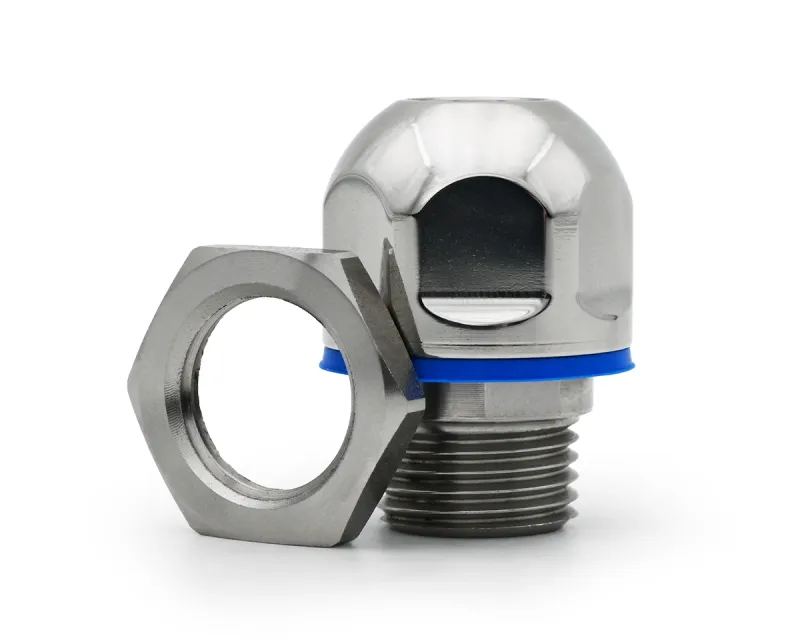

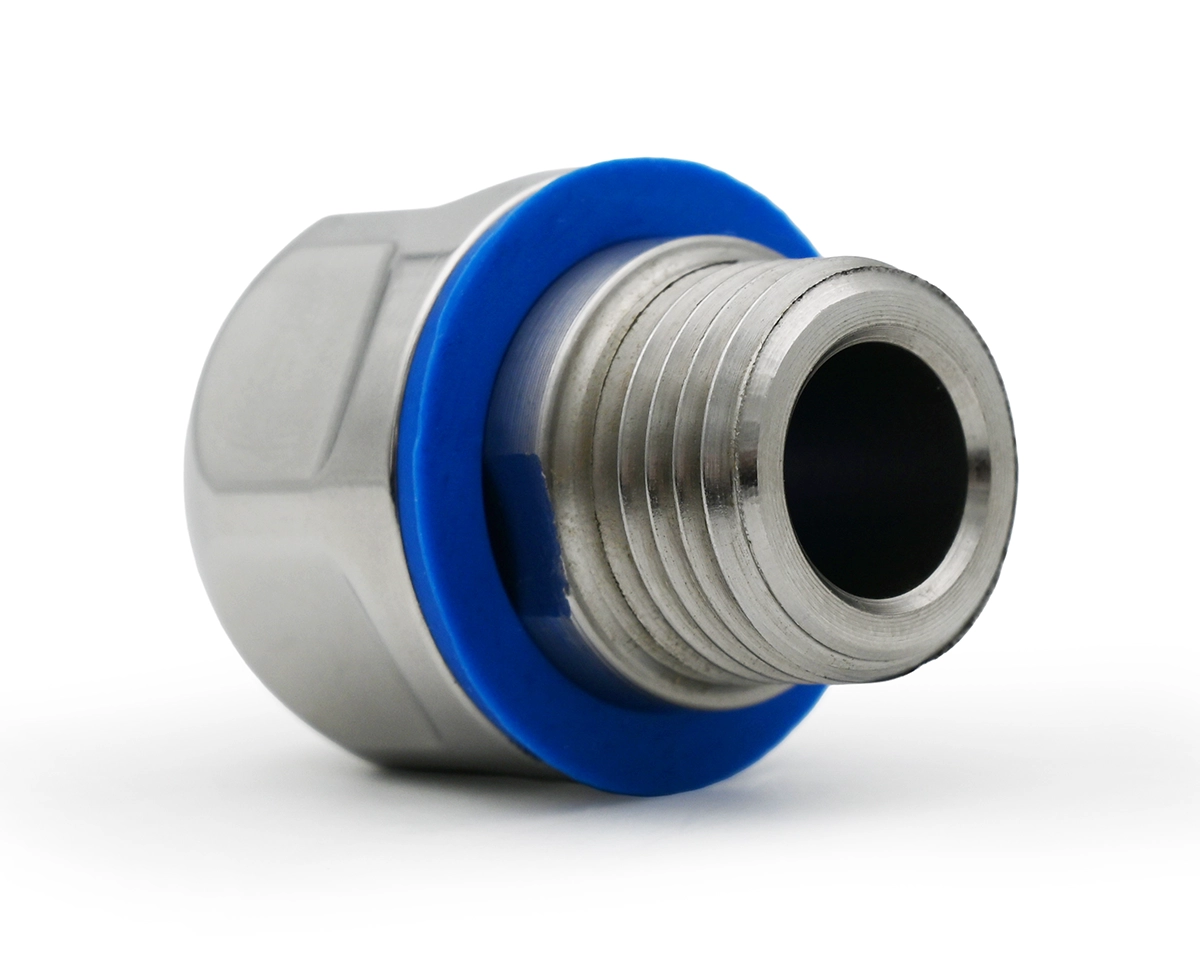

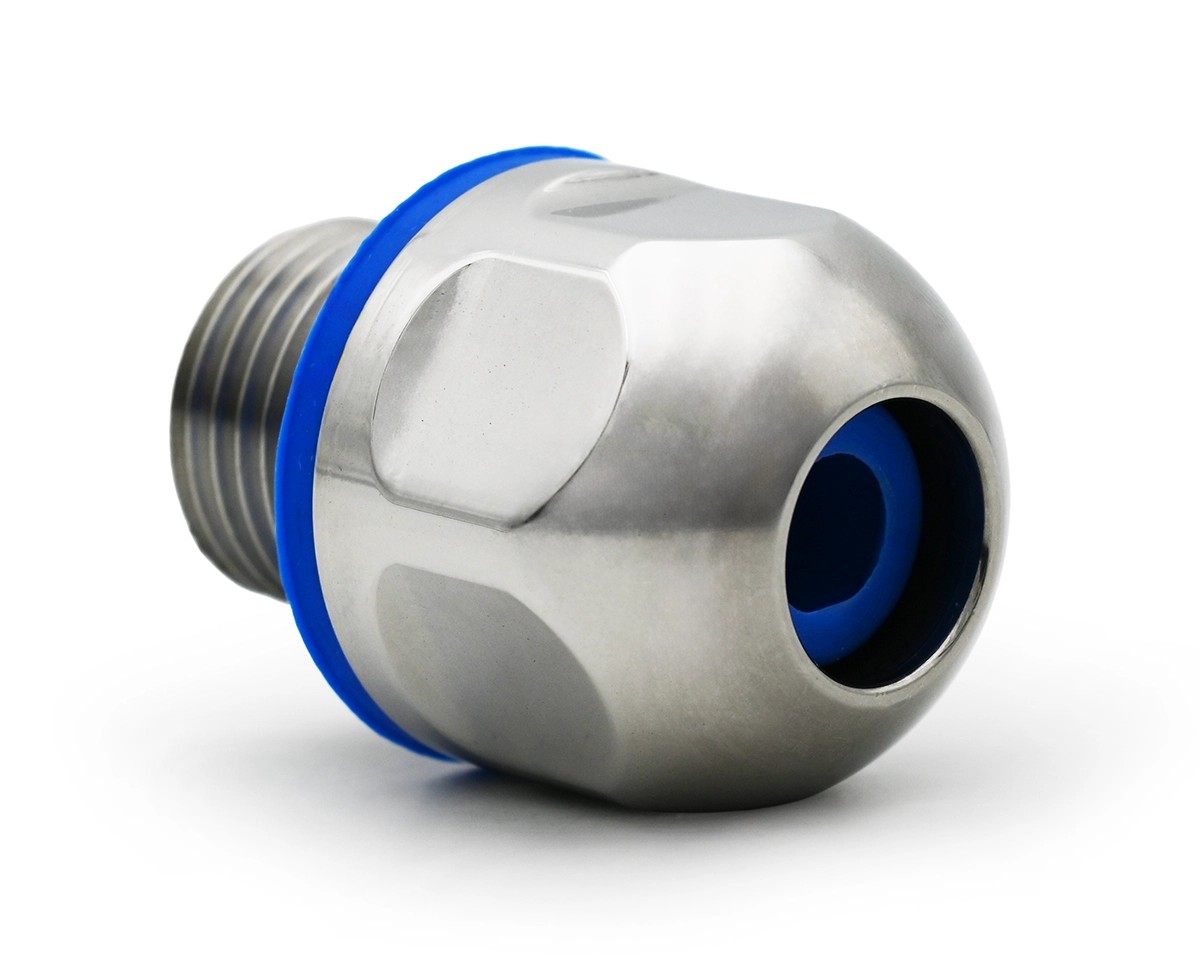

Cable gland, stainless steel, Ø 8-9 mm, M16, IP69K, 3A, AISI304

EAN 4061408156535

Type 458PCD24D9/304/3A

Ensure the highest quality for your applications with our stainless steel cable gland, IP69K rated for waterproof protection, designed for cable diameters 8-9 mm, featuring 3-A certification for superior hygiene standards.

High-quality stainless steel (AISI304) construction ensures durability and corrosion resistance.
Achieves IP69K rating, providing superior protection against dust and high-pressure water ingress.
Certified to 3-A Sanitary Standard, suitable for hygienic applications in food and pharmaceutical industries.
Designed for cables with diameters ranging from 8 to 9 mm, ensuring a secure and reliable connection.
Compact design with an outer diameter of 24 mm and a height of 20 mm, with an M16x1.5 connection thread for versatility in installations.

€14.85*

Content: 1 pieces

*Prices excl. VAT plus shipping costs

Currently sold out, Refill time: 10 days

€14.85* / piece

Our payment methods:

Product properties

Material:	Stainless steel AISI304
Refinement:	high-gloss polished
Inside diameter / Square:	9
Outer diameter:	24
Spanner width:	22
Height:	20
Thread:	M16x1.5
Particularities:	waterproof
Class:	IP69K
Certification:	3-A Sanitary Standard

Product description

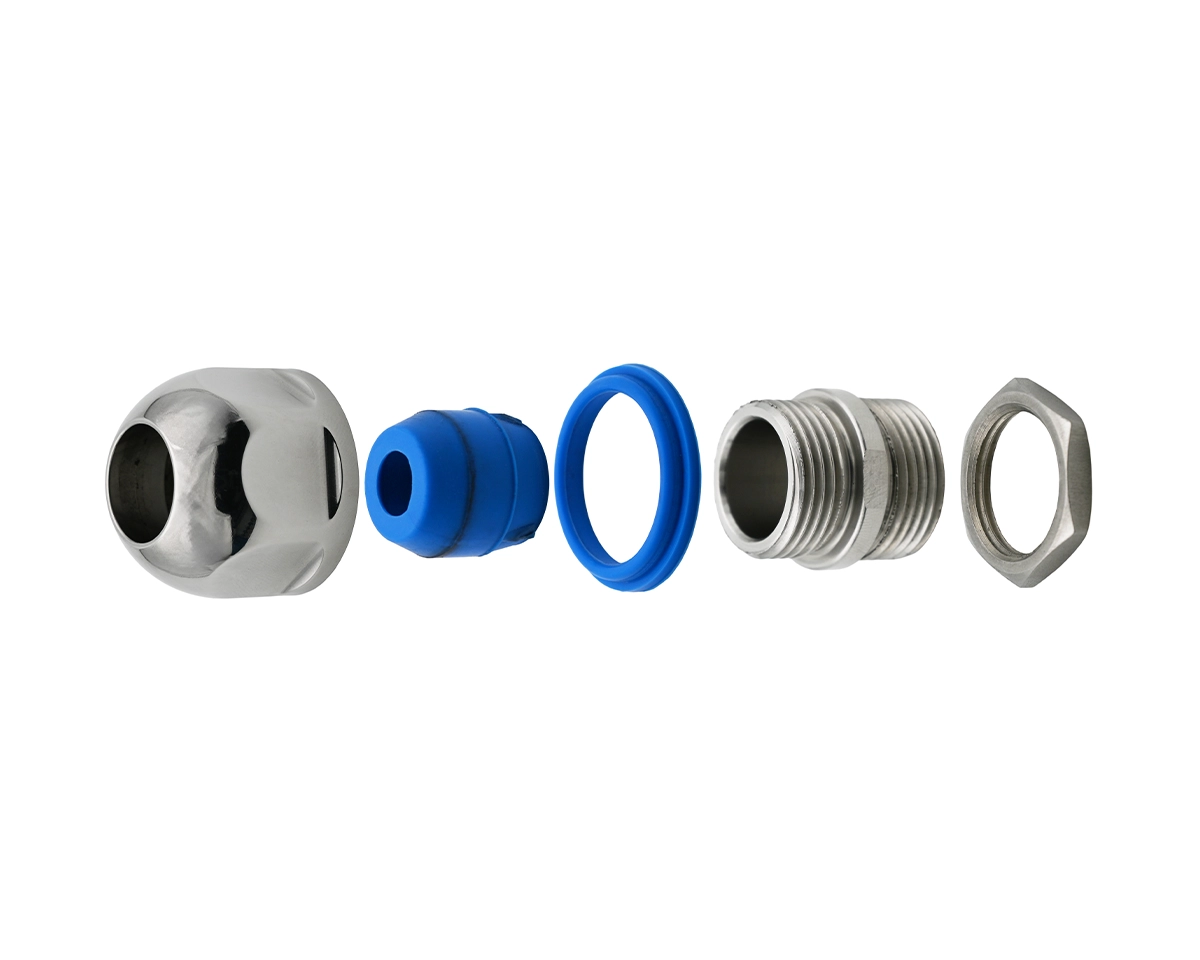

Cable gland, stainless steel, IP69K, 3-A certified, for cable Ø 8-9 mm, stainless stell AISI304, outer part Ø 24 mm, height 20 mm, inner part, connection thread M16x1.5 x 9 mm, 4 pcs.

Custom solutions

We develop customised components exactly as you need them for your application.

Learn more about custom solutions Contact us

Technical documentation

In this section you will find all relevant documents & links for your documentation::

Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
