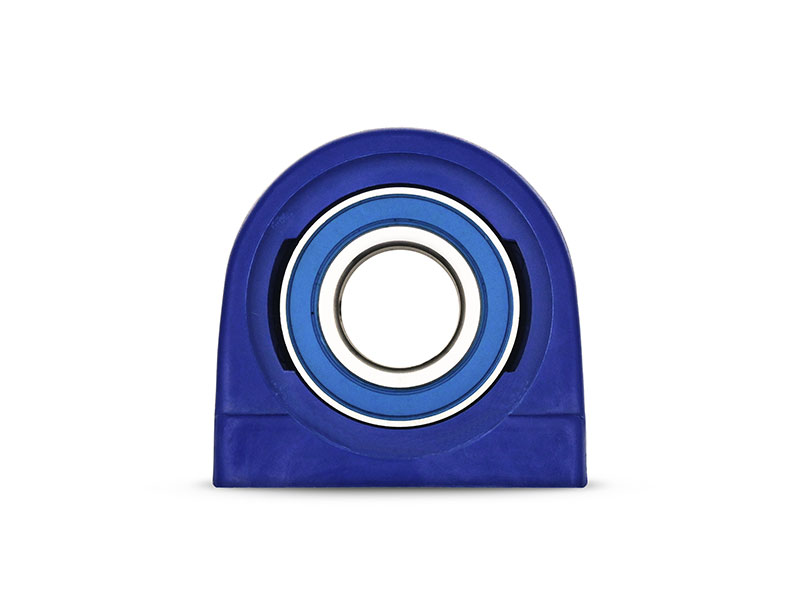

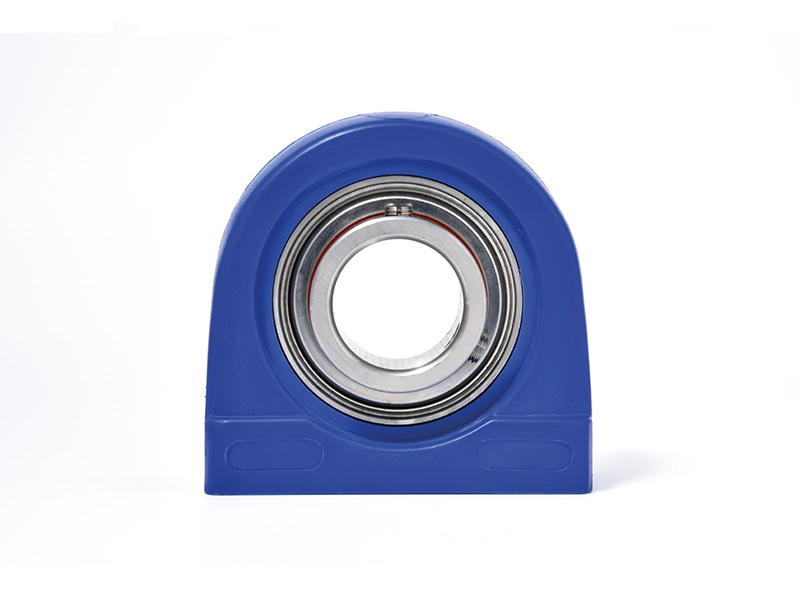

MOVET® Waterproof IP69K Pillow block bearing TBLW 203, housing blue, MB stainless steel, Ø 17 mm
EAN
4061408144020
Type
460203TBLMBWB
Discover the MOVET® IP69K Waterproof Pillow Block Bearing TBLW 203. Designed for hygienic applications, this stainless steel insert bearing features a durable PBT thermoplastic housing and offers optimal protection in demanding environments.
| Quantity | Price |
|---|---|
| From 1 |
€44.07*
|
| From 10 |
€41.66*
|
| From 25 |
€40.26*
|
6 on stock, Refill time: 0 days
Our payment methods:
Invoice
Prepayment
PayPal
Product properties
| Product family: | Blue Waterproof |
| Shaft Ø: | 17 |
| Housing: | Pillow block bearing unit |
| Type: | TBLW |
| Housing material: | Plastic |
| Color: | Blue |
| Bore spacing: | 50,8 |

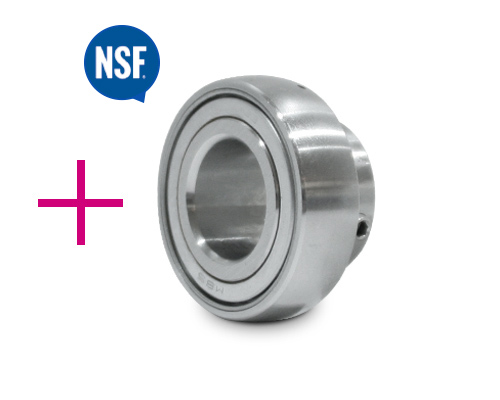

| Bearing insert: | MB Stainless Steel |
| Shaft seal possible: | Yes |
| Cap possible: | Yes |
| Hygiene: | Yes |
| Waterproof: | Yes |
Technical drawing
MOVET® Waterproof IP69K Hygienic Pillow block bearing TBLW 203, PBT thermoplastic housing blue, hole distance 50,8 mm, w/o grease fitting, MB stainless steel insert, Ø 17 mm, threaded pin with slot, suitable for backseal
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
