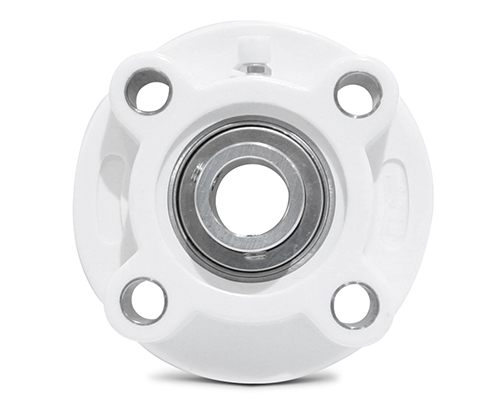

MOVET® 4-hole flange bearing CF 205, housing white, MB stainless steel, Ø 25 mm

EAN 4061408109173

Type 460205CFMB

Discover the MOVET® CF 205 4-hole flange bearing, featuring a durable PBT thermoplastic housing and MB stainless steel insert. Ideal for precision applications, it ensures optimal hygiene and design versatility.

4-hole flange design for secure mounting and stability
Made of durable PBT thermoplastic and MB stainless steel, ensuring longevity and resistance to wear

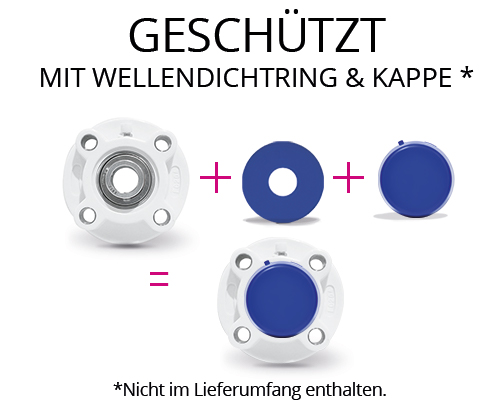

Compatible with backseal options, enhancing protection against contaminants
Standard product family with a white housing for improved hygiene in various environments
Bore diameter of 25 mm and hole distance of 64 mm, suitable for precise engineering applications

Quantity	Price
From 1	€32.15*
From 10	€29.34*
From 25	€28.38*
From 40	€26.71*
From 60	€25.04*

*Prices excl. VAT plus shipping costs

Currently sold out, Refill time: 0 days

€32.15* / piece

Our payment methods:

Accessories

MOVET® cap for thermoplastic units 25mm closed white

Type No.: 460205C

From €2.20*

MOVET® Blue cap for thermoplastic units 25mm closed blue

Type No.: 460205CB

From €2.44*

MOVET® cap for thermoplastic units 25mm open white

Type No.: 460205CO

From €4.75*

MOVET® Blue cap for thermoplastic units 25mm open blue

Type No.: 460205COB

From €4.95*

MOVET® 304 stainless steel cap for units 205 closed

Type No.: 460205CSS15

€18.75*

MOVET® Backseal NBR black, Housing 205 for shaft 25 mm

Type No.: 460205D

From €3.26*

MOVET® Blue backseal 62 / 25 hygienic, blue, housing 205

Type No.: 460205DW6225

From €10.49*

MOVET® Blue backseal 62 / 30 hygienic, blue, housing 205

Type No.: 460205DW6230

From €9.13*

MOVET® Backseal Ø 62 / Ø 35 hygienic, blue, housing 205

Type No.: 69MUL108568485

From €10.11*

Product properties

Product family:	Standard
Shaft Ø:	25
Housing:	4-hole flange bearing
Type:	CF
Housing material:	Plastic
Color:	White
Bore spacing:	64
Bearing insert:	MB Stainless Steel
Shaft seal possible:	Yes
Cap possible:	Yes
Hygiene:	Yes

Product description

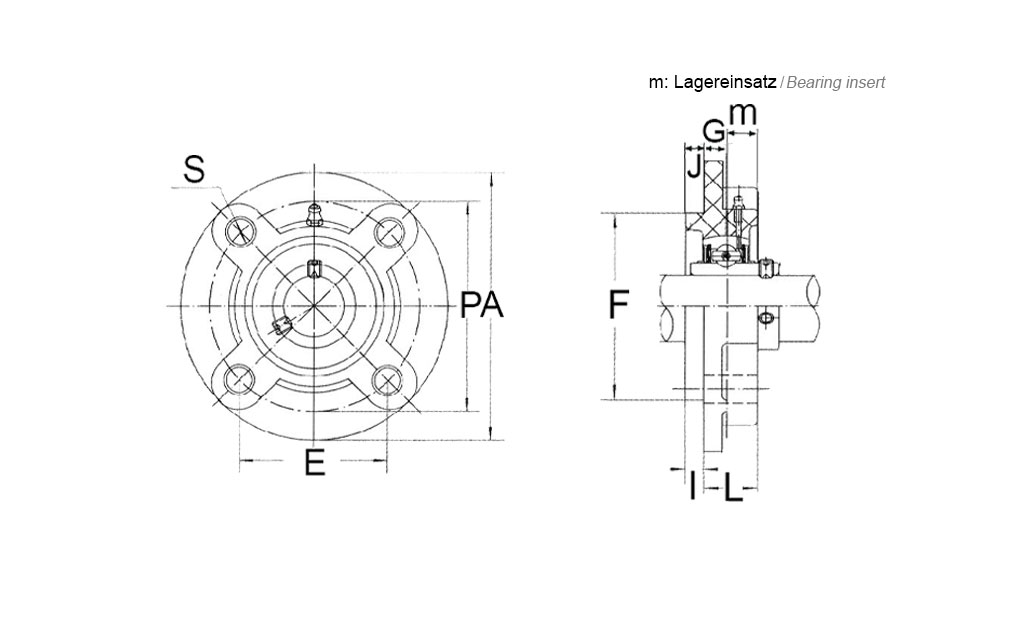

MOVET® 4-hole flange bearing CF 205, PBT thermoplastic housing white, hole distance 64 mm, Bore pitch diameter 90 mm, MB stainless steel insert, Ø 25 mm, suitable for backseal

Custom solutions

We develop customised components exactly as you need them for your application.

Learn more about custom solutions Contact us

Technical documentation

In this section you will find all relevant documents & links for your documentation::

Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
