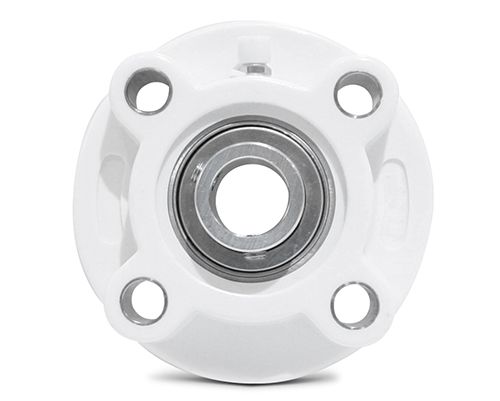

MOVET® 4-hole flange bearing CF 204, housing white, MB stainless steel, Ø 20 mm
EAN
4061408109166
Type
460204CFMB
Discover the MOVET® CF 204 4-hole flange bearing, featuring a durable white PBT thermoplastic housing and a 20 mm stainless steel insert. Ideal for hygienic applications.
| Quantity | Price |
|---|---|
| From 1 |
€32.63*
|
| From 10 |
€29.78*
|
| From 25 |
€28.80*
|
| From 40 |
€27.10*
|
| From 60 |
€25.41*
|
8 on stock, Refill time: 0 days
Our payment methods:
Invoice
Prepayment
PayPal
Product properties
| Product family: | Standard |
| Shaft Ø: | 20 |
| Housing: | 4-hole flange bearing |
| Type: | CF |
| Housing material: | Plastic |
| Color: | White |
| Bore spacing: | 55 |

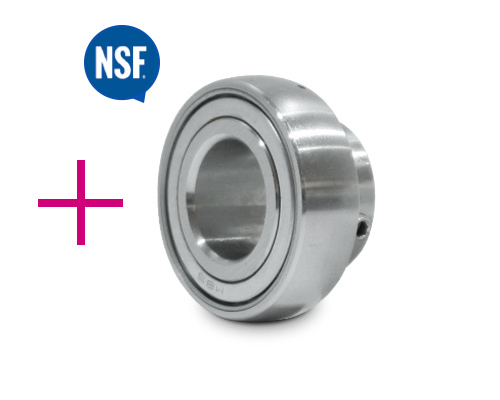

| Bearing insert: | MB Stainless Steel |

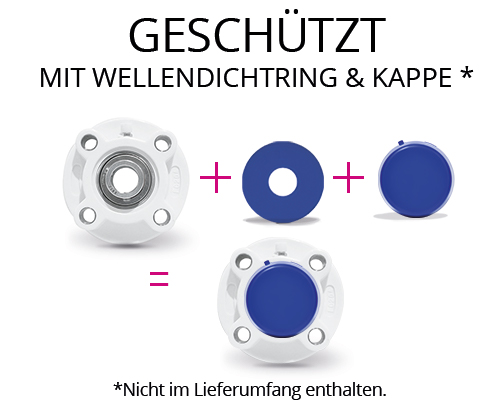

| Shaft seal possible: | Yes |
| Cap possible: | Yes |
| Hygiene: | Yes |
Technical drawing

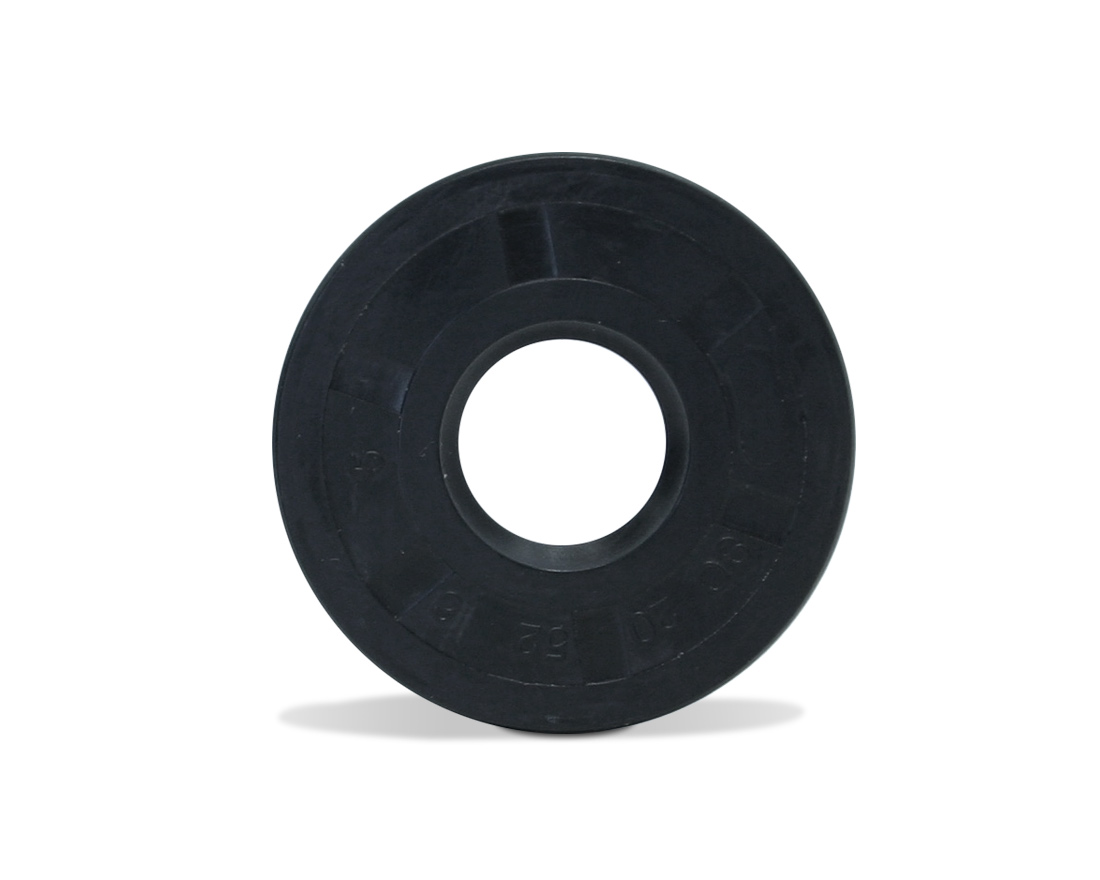

MOVET® 4-hole flange bearing CF 204, PBT thermoplastic housing white, hole distance 55 mm, Bore pitch diameter 78 mm, MB stainless steel insert, Ø 20 mm, suitable for backseal
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
