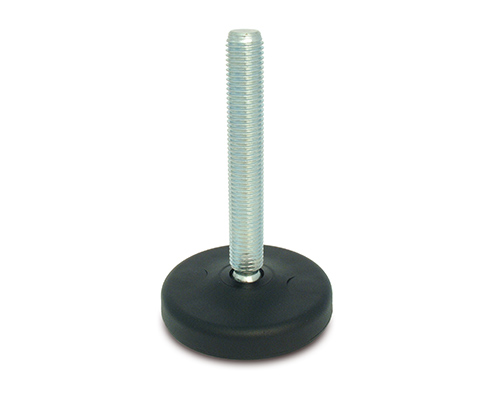

Levelling foot ECO30 PA, Ø 123 mm, M20 x 250 mm Steel, Drills, NBR
EAN
4061408100514
Type
45818625
The ECO30 Levelling Foot features a durable polyamide base with a 123 mm diameter and a galvanized steel spindle. With a static load capacity of 20,000 N and articulated adjustment up to 30°, it ensures stability and precision in various applications.
| Quantity | Price |
|---|---|
| From 1 |
€9.76*
|
| From 5 |
€9.34*
|
| From 15 |
€8.04*
|
| From 50 |
€7.63*
|
Currently sold out, Refill time: 5 days
Our payment methods:
Invoice
Prepayment
PayPal
Skip product gallery
Accessories

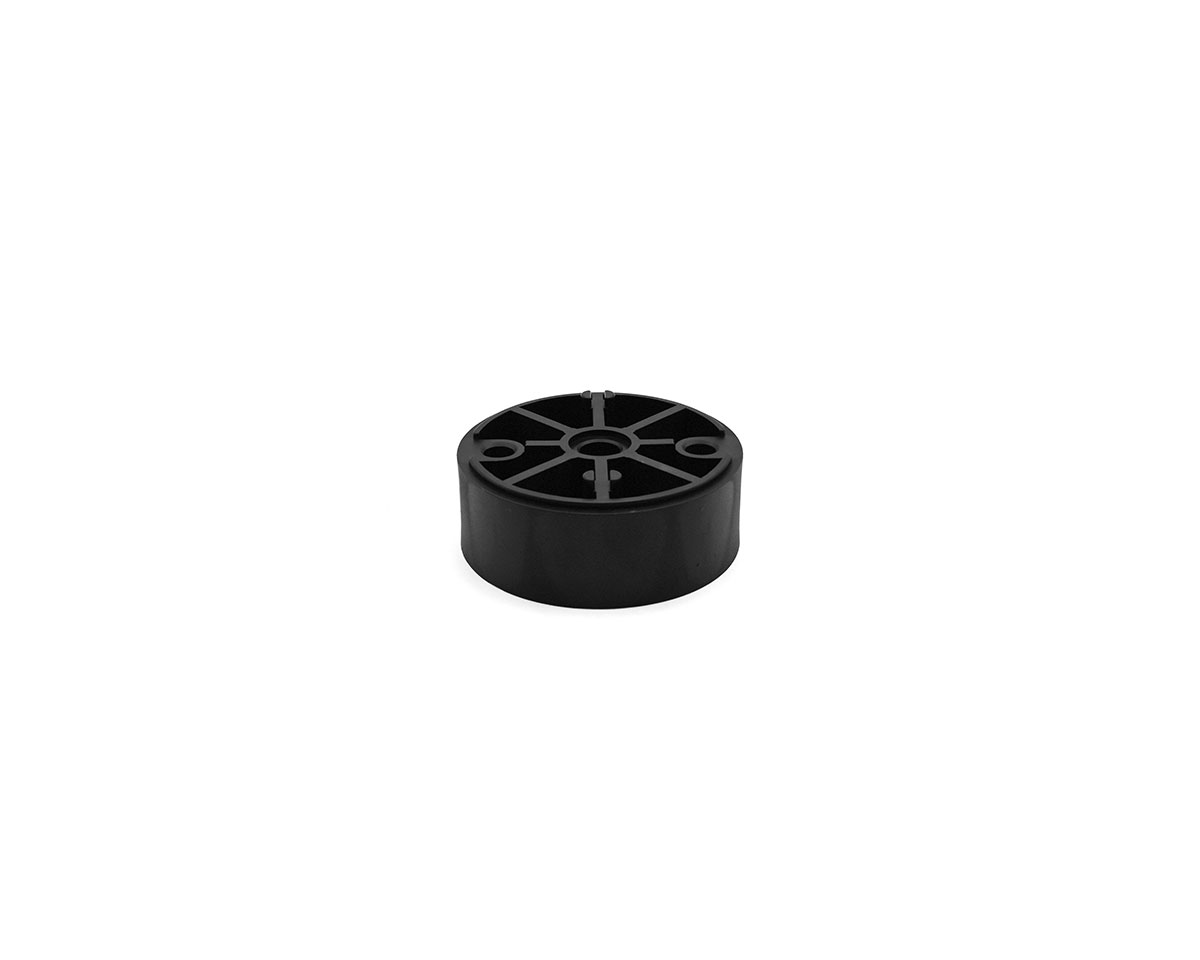

Plastic levelling foot height extension Ø 123, with anti-slip rubber pad
From
€6.93*
Type No.:
458PROLD123/G
Product properties
| Footplate material: | Plastic |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 111-130 |
| Ground fastening: | 2 mounting holes |
| Material spindle: | Steel |
| Ø spindle (mm): | 20 |
| Spindle length (mm): | 250 |
| Balancing angle: | 30° |
Technical drawing
Levelling foot ECO30 Polyamide, Ø 123 mm, M20 x 250 mm, Galvanized steel, Total height 289 mm, Articulated screw 30°, Bore holes Ø 12,5 mm, Antislip NBR black, Static load 20.000 N
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
