Levelling foot VULCANIZED stainless steel, Ø 80 mm, M16 x 125 mm, Hygenic, Lug, NBR
Introducing our VULCANIZED stainless steel leveling foot, designed for stability and hygiene. With a robust static load capacity of 10,000 N and an articulated screw for 10° adjustment, it ensures reliable support in various applications. Ideal for technical professionals seeking durable and efficient solutions.
| Quantity | Price |
|---|---|
| From 1 |
€17.66*
|
| From 13 |
€16.59*
|
| From 25 |
€15.52*
|
| From 50 |
€14.77*
|
Currently sold out, Refill time: 8 days
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 71-90 |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 16 |
| Spindle length (mm): | 125 |
| Balancing angle: | 10° |

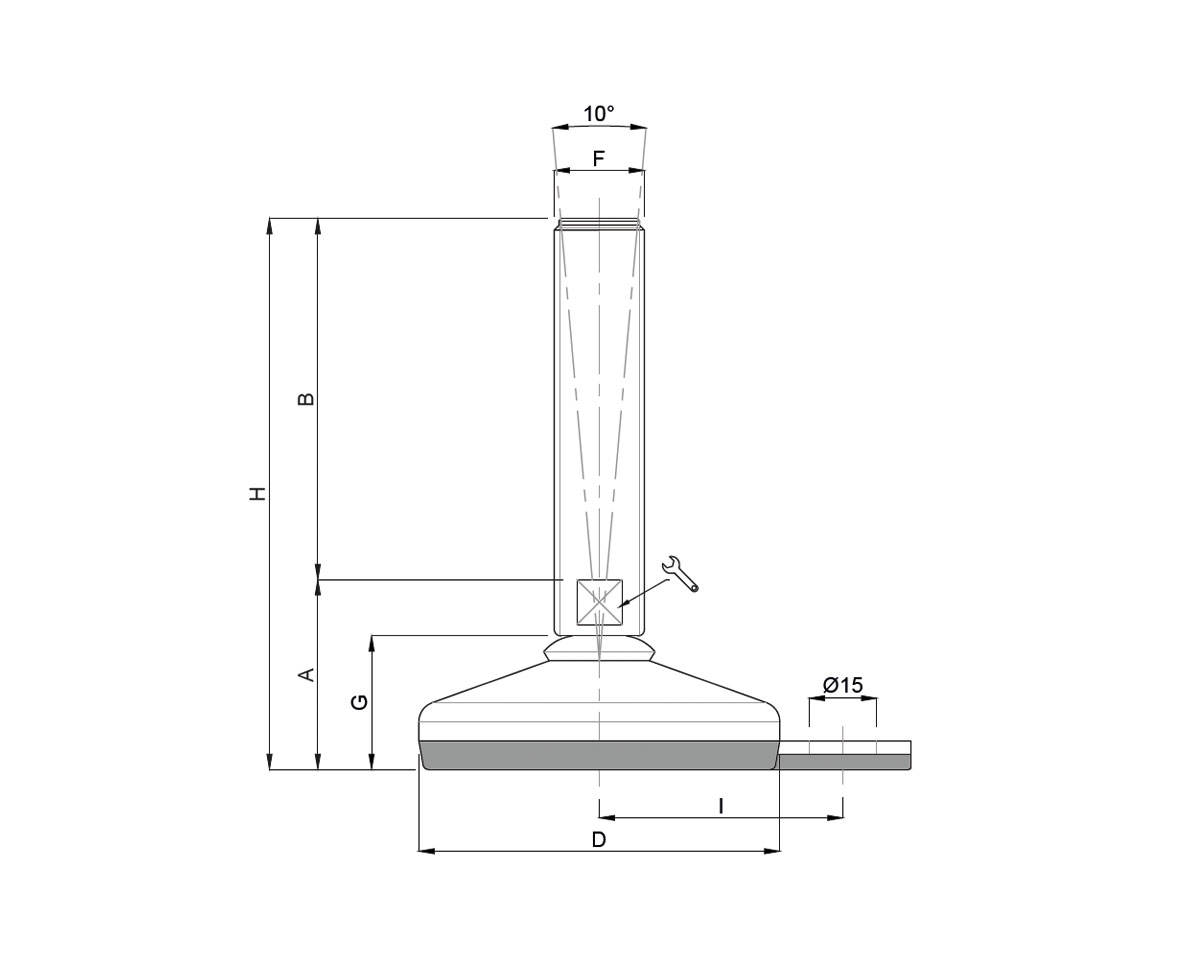

Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
