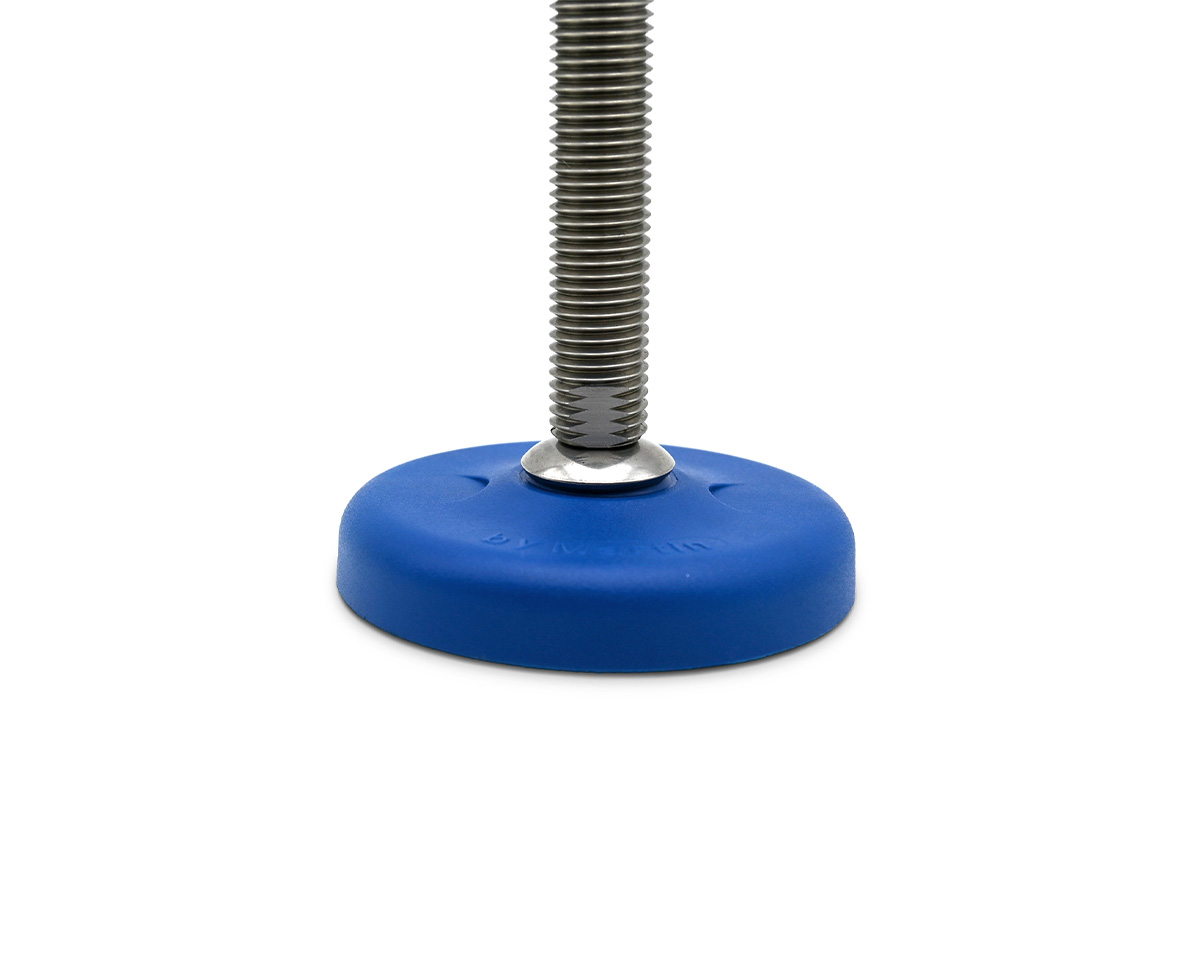

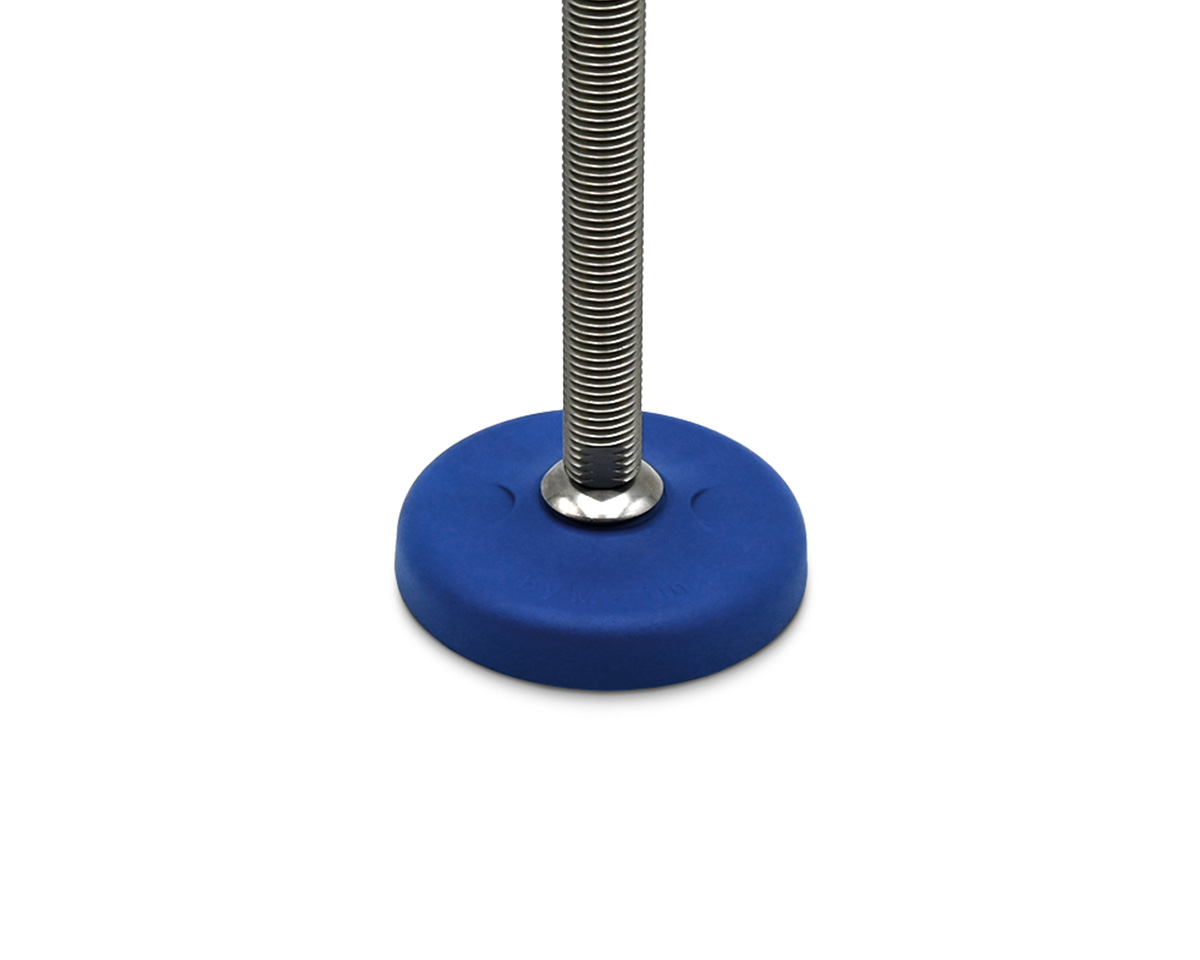

Levelling foot ECO16 PA blau, Ø 103 mm, M20 x 150 mm Stainless steel, Drills
The ECO16 Levelling Foot offers exceptional stability with a static load capacity of 30,000 N. Crafted from durable polyamide and stainless steel, it features an articulated screw for precise adjustments up to 16°. Ideal for any engineering application.
| Quantity | Price |
|---|---|
| From 1 |
€10.73*
|
| From 5 |
€9.59*
|
| From 15 |
€8.57*
|
| From 50 |
€8.39*
|
Currently sold out, Refill time: 5 days
Product properties
| Footplate material: | Plastic blue |
| Anti-slip: | No |
| Ø range base plate (mm): | 91-110 |
| Vibration damping: | no |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 20 |
| Spindle length (mm): | 150 |
| Balancing angle: | 16° |
| Hygiene: | No |
Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Download STP file as ZIP
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
