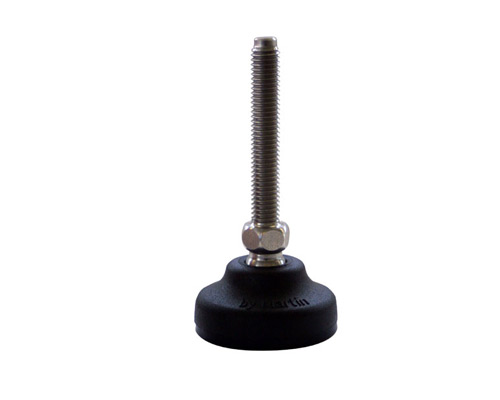

Levelling foot PA, Ø 40 mm, M10 x 75 mm Stainless steel, NBR
Enhance your equipment stability with our stainless steel levelling foot, featuring a 40 mm polyamide base and NBR anti-slip support, designed for static loads up to 10,000 N.
| Quantity | Price |
|---|---|
| From 1 |
€5.96*
|
| From 5 |
€5.33*
|
| From 15 |
€4.76*
|
| From 50 |
€4.66*
|
Currently sold out, Refill time: 5 days
Product properties
| Footplate material: | Plastic |
| Ø range base plate (mm): | 31-40 |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 10 |
| Spindle length (mm): | 75 |
| Balancing angle: | 30° |
| Anti-slip: | NBR black |

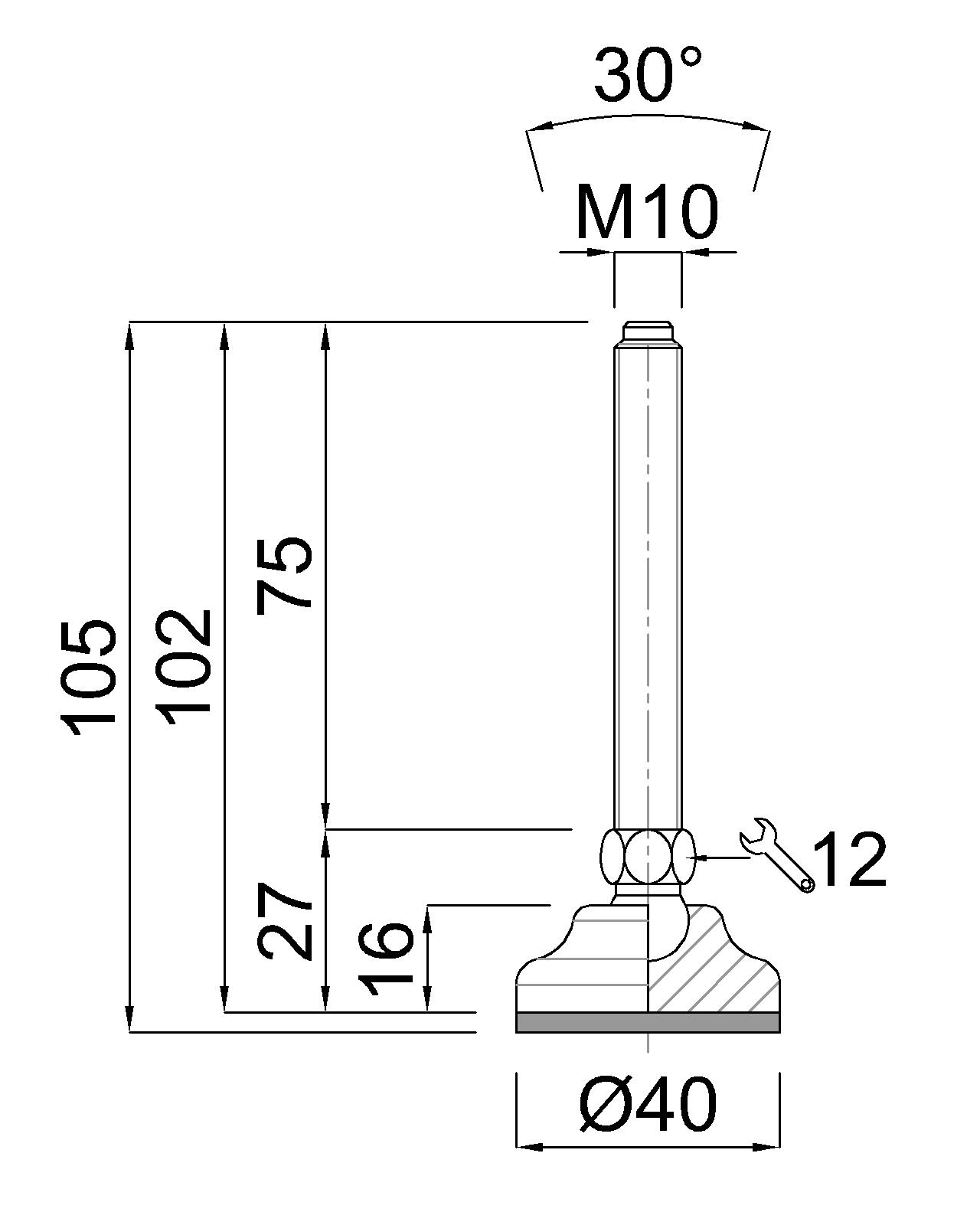

Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Download STP file as ZIP
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
