Levelling foot TEKNOFIX, Ø 150 mm Steel, M35x2 x 100 mm, phosphated
Discover the TEKNOFIX leveling foot, engineered for superior stability. With a robust steel construction, it supports static loads up to 90,000 N, ideal for precision applications.
| Quantity | Price |
|---|---|
| From 1 |
€42.74*
|
| From 5 |
€40.58*
|
| From 15 |
€39.22*
|
| From 50 |
€37.87*
|
Currently sold out, Refill time: 5 days
Product properties
| Footplate material: | Steel |
| Anti-slip: | No |
| Ø range base plate (mm): | 131-230 |
| Vibration damping: | No |
| Material spindle: | Steel |
| Ø spindle (mm): | 35 |
| Spindle length (mm): | 100 |
| Balancing angle: | 0° |
| Hygiene: | No |

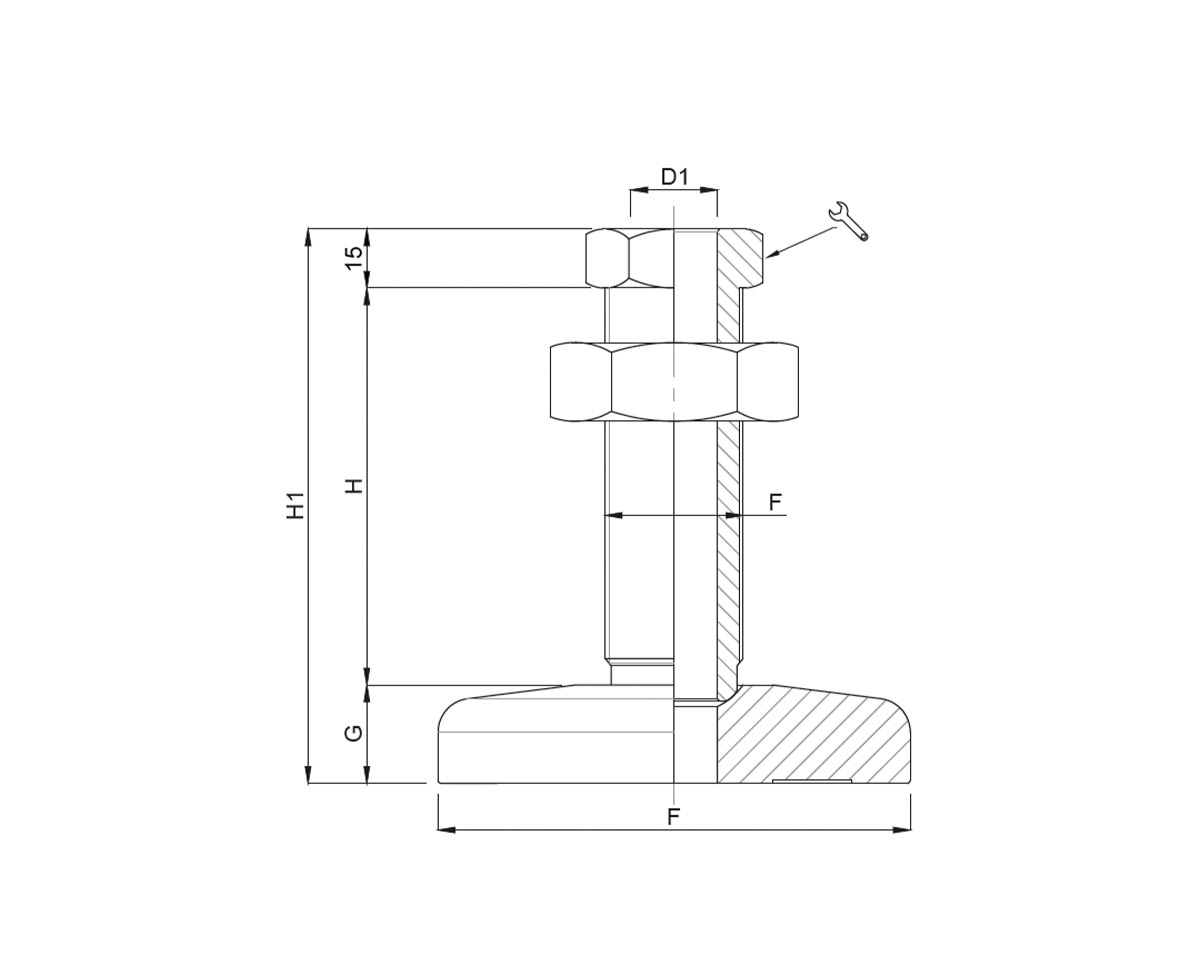

Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
