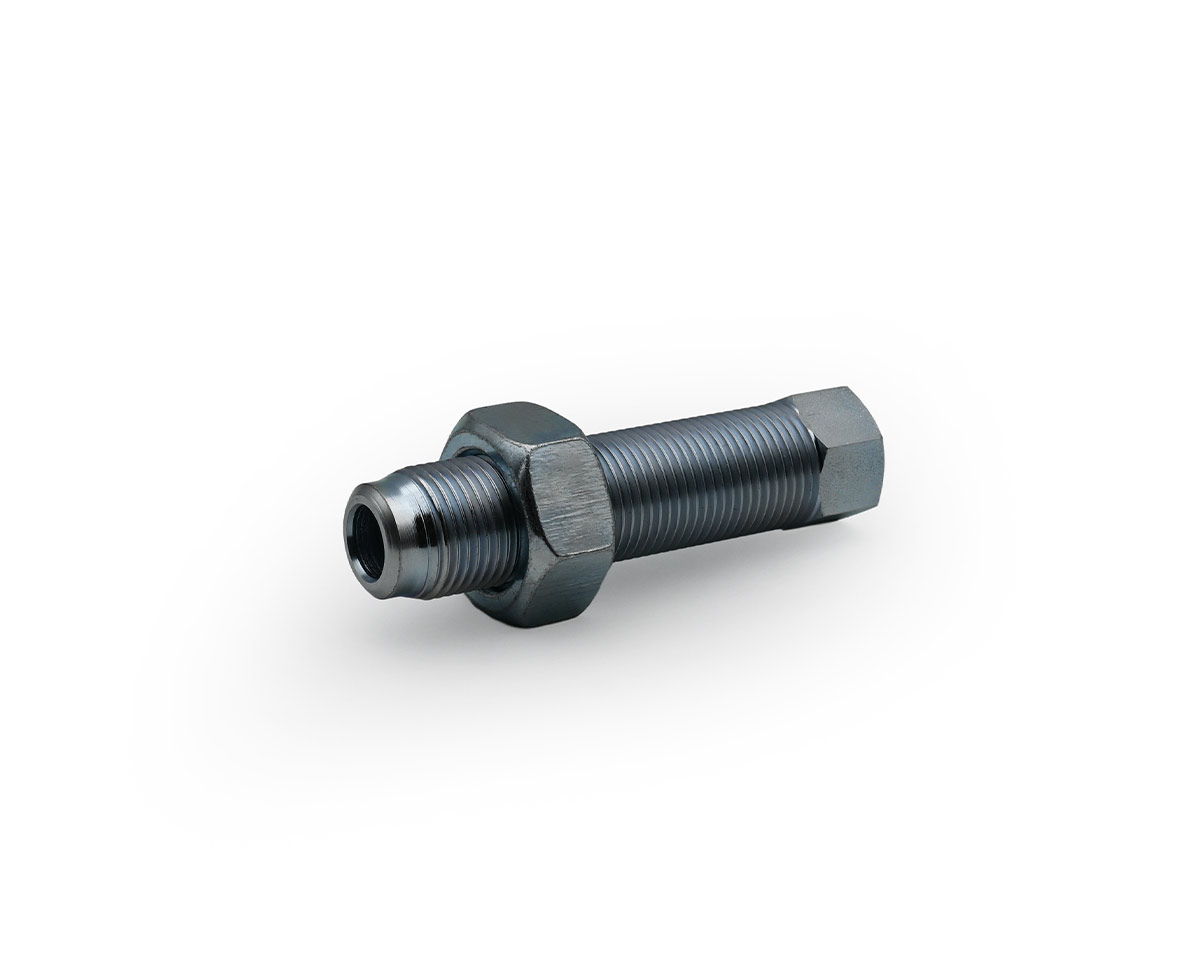

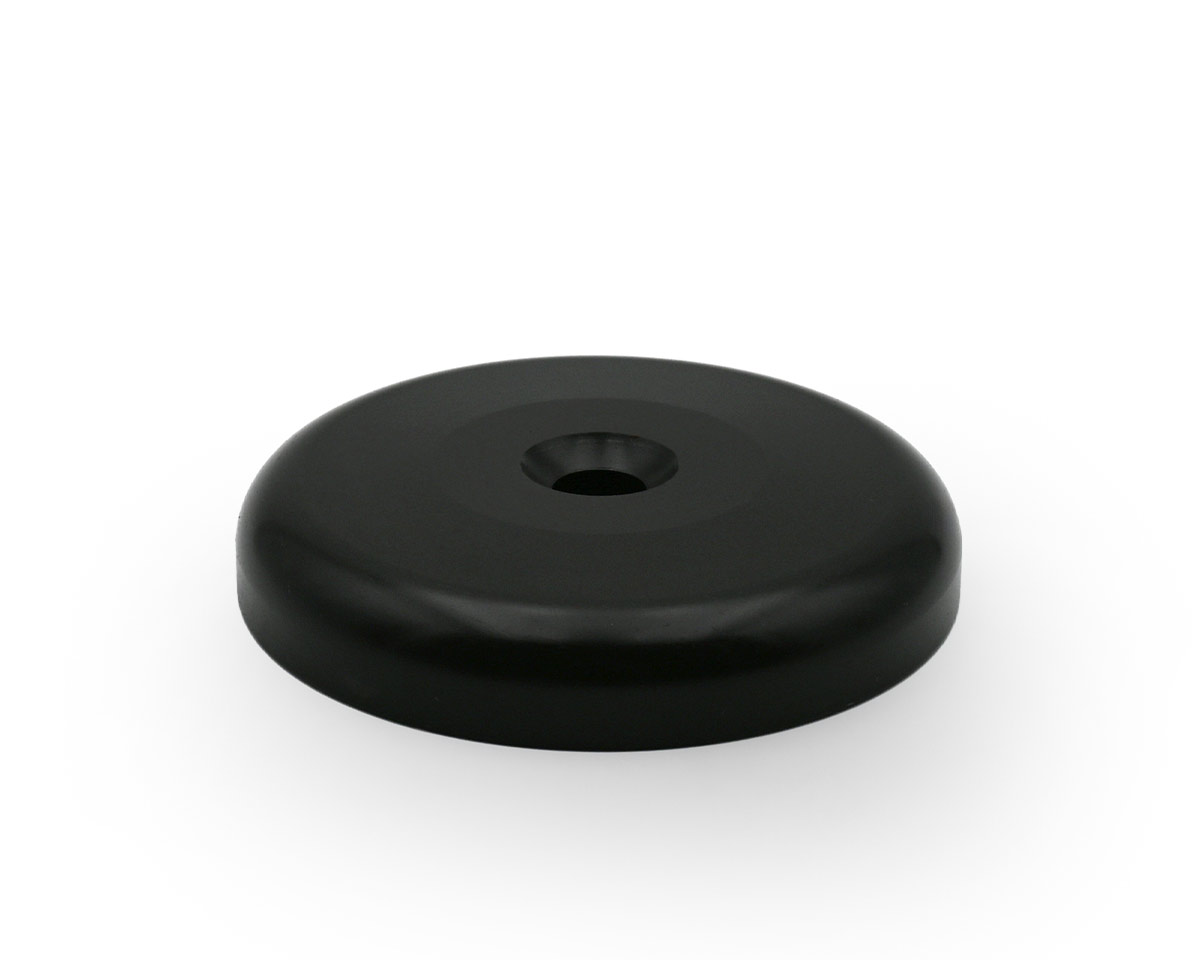

Levelling foot TEKNOFIX, Ø 120 mm Steel, M24x2 x 100 mm, plate phosphated
Introducing the TEKNOFIX leveling foot: a robust 120 mm steel solution with M24x2 x 100 mm thread, designed to support static loads up to 90,000 N, ensuring precise adjustments and reliable stability for engineering applications.
| Quantity | Price |
|---|---|
| From 1 |
€38.55*
|
| From 5 |
€36.60*
|
| From 15 |
€35.38*
|
| From 50 |
€34.16*
|
Currently sold out, Refill time: 5 days
Product properties
| Footplate material: | Steel |
| Anti-slip: | No |
| Ø range base plate (mm): | 111-130 |
| Vibration damping: | no |
| Material spindle: | Steel |
| Ø spindle (mm): | 24 |
| Spindle length (mm): | 100 |
| Balancing angle: | 0° |
| Hygiene: | No |

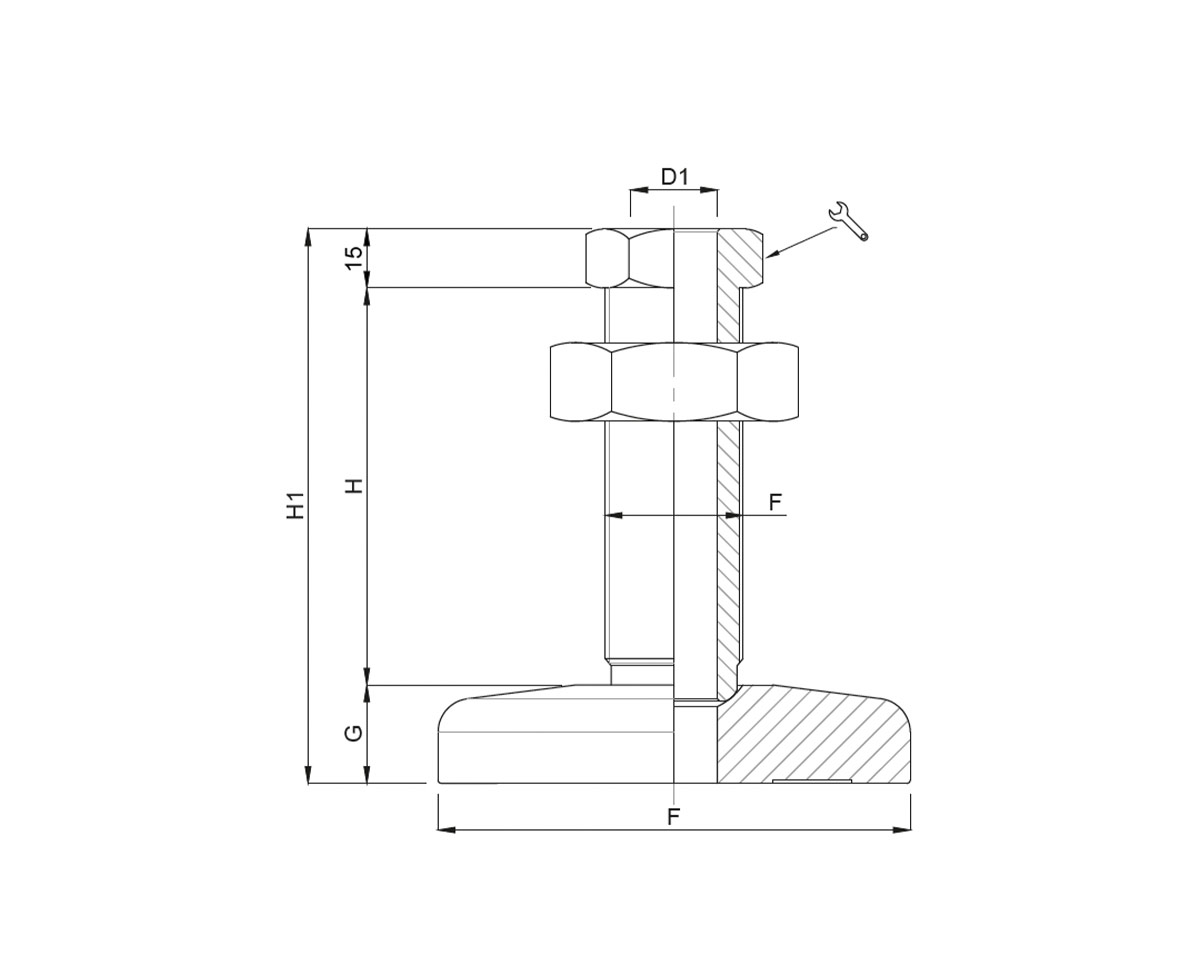

Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Download STP file as ZIP
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
