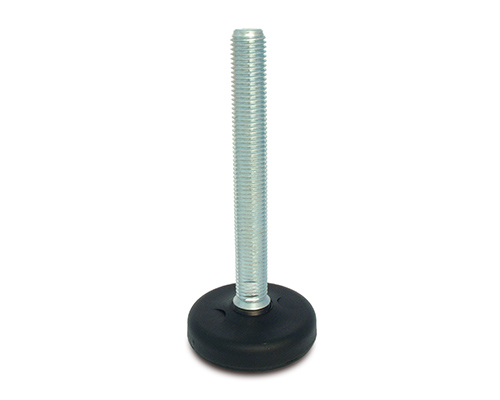

Levelling foot ECO16 PA, Ø 123 mm, M24 x 150 mm Steel, Drills, NBR

EAN 4061408101931

Type 45818803

The ECO16 leveling foot features a durable polyamide base with a 123 mm diameter and galvanized steel spindle, providing stability with a 35,000 N static load capacity. Ideal for precise adjustments.

High load capacity with a static load rating of 35,000 N, ensuring durability and reliability in demanding applications.
Made of corrosion-resistant galvanized steel for enhanced longevity in various environments.
Customizable height options with a total height of 195 mm and adjustable articulated screw angle of 16° for precise leveling.
Equipped with anti-slip NBR (black) material to improve stability and prevent movement.
Features versatile bore holes (Ø 12.5 mm) for secure ground fastening with dual mounting options.

Quantity	Price
From 1	€10.00*
From 5	€9.58*
From 15	€8.25*
From 50	€7.82*

*Prices excl. VAT plus shipping costs

Currently sold out, Refill time: 5 days

€10.00* / piece

Our payment methods:

Accessories

Plastic levelling foot height extension Ø 123, with anti-slip rubber pad

Type No.: 458PROLD123/G

From €6.93*

Product properties

Footplate material:	Plastic
Anti-slip:	NBR black
Ø range base plate (mm):	111-130
Ground fastening:	2 mounting holes
Material spindle:	Steel
Ø spindle (mm):	24
Spindle length (mm):	150
Balancing angle:	16°

Product description

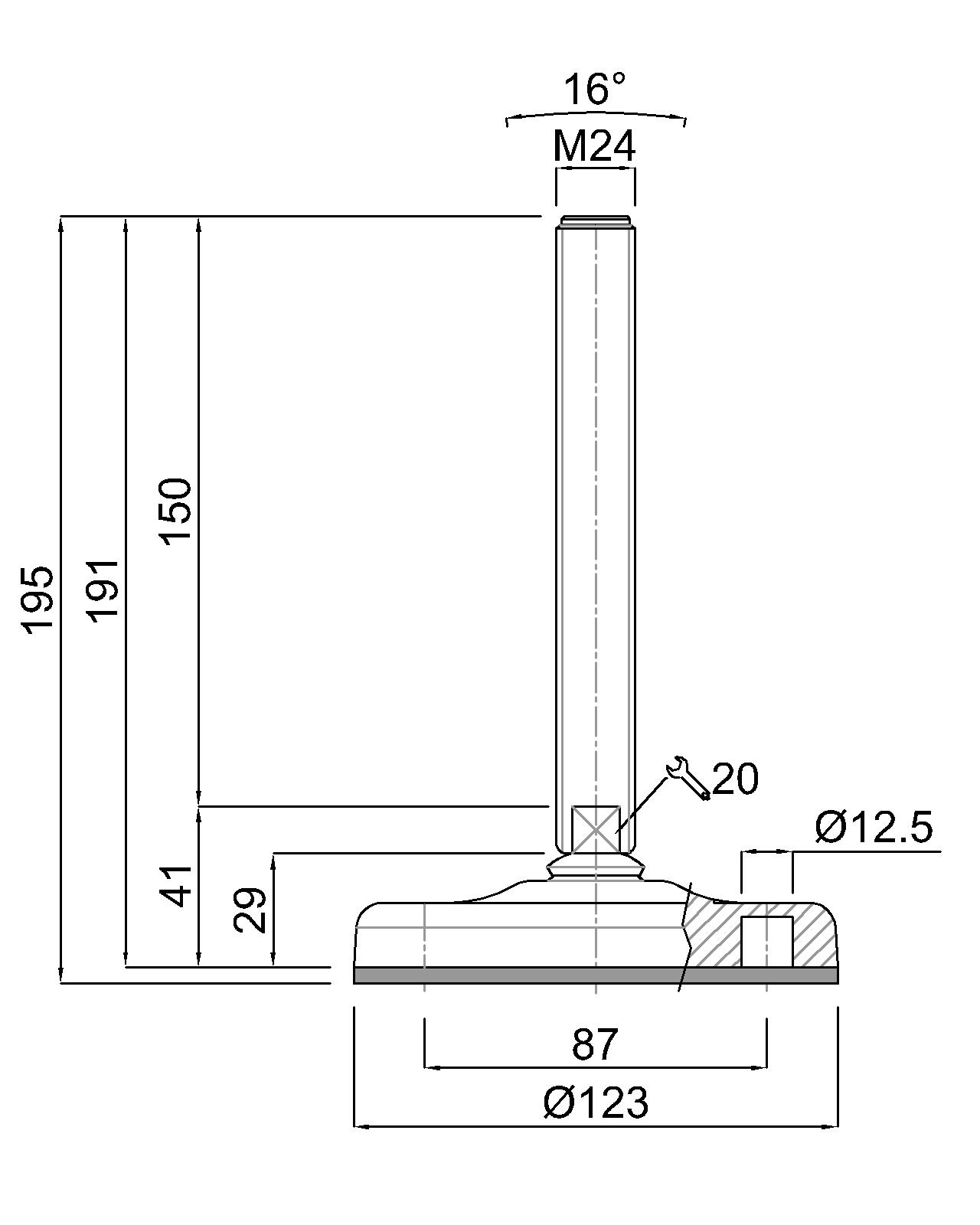

Levelling foot ECO16 Polyamide, Ø 123 mm, M24 x 150 mm, Galvanized steel, Total height 195 mm, Articulated screw 16°, Bore holes Ø 12,5 mm, Antislip NBR black, Static load 35.000 N

Custom solutions

We develop customised components exactly as you need them for your application.

Learn more about custom solutions Contact us

Technical documentation

In this section you will find all relevant documents & links for your documentation::

Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
