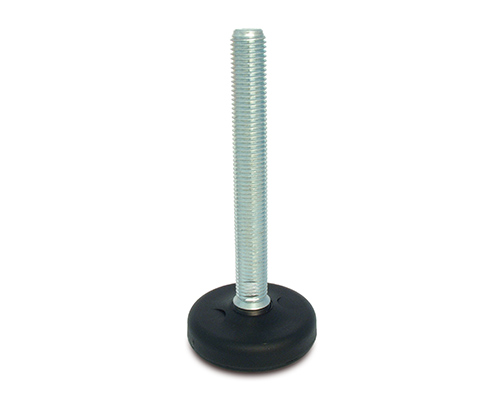

Levelling foot ECO16 PA, Ø 123 mm, M20 x 100 mm Steel, Drills

EAN 4061408101849

Type 45818782

Discover the ECO16 leveling foot featuring a robust polyamide base and galvanized steel spindle. With a static load capacity of 35,000 N and a precise 16° articulation, it ensures stability for your projects.

Durable polyamide footplate designed for stable and long-lasting performance under static loads of up to 35,000 N.
Galvanized steel spindle with a diameter of 20 mm, ensuring robust support and resistance to corrosion.
Articulated screw design with a 16° leveling angle, providing enhanced adjustability for uneven surfaces.
Footplate diameter of 123 mm accommodates a wide range of applications, suitable for various industrial uses.
Equipped with two bore holes (Ø 12.5 mm) for secure ground attachment, ensuring maximum stability and safety.

Quantity	Price
From 1	€5.87*
From 5	€5.62*
From 15	€4.84*
From 50	€4.59*

*Prices excl. VAT plus shipping costs

Currently sold out, Refill time: 5 days

€5.87* / piece

Our payment methods:

Accessories

Plastic levelling foot height extension Ø 123

Type No.: 458PROLD123

From €5.03*

Product properties

Footplate material:	Plastic
Anti-slip:	No
Ø range base plate (mm):	111-130
Ground fastening:	2 mounting holes
Vibration damping:	no
Material spindle:	Steel
Ø spindle (mm):	20
Spindle length (mm):	100
Balancing angle:	16°
Hygiene:	No

Product description

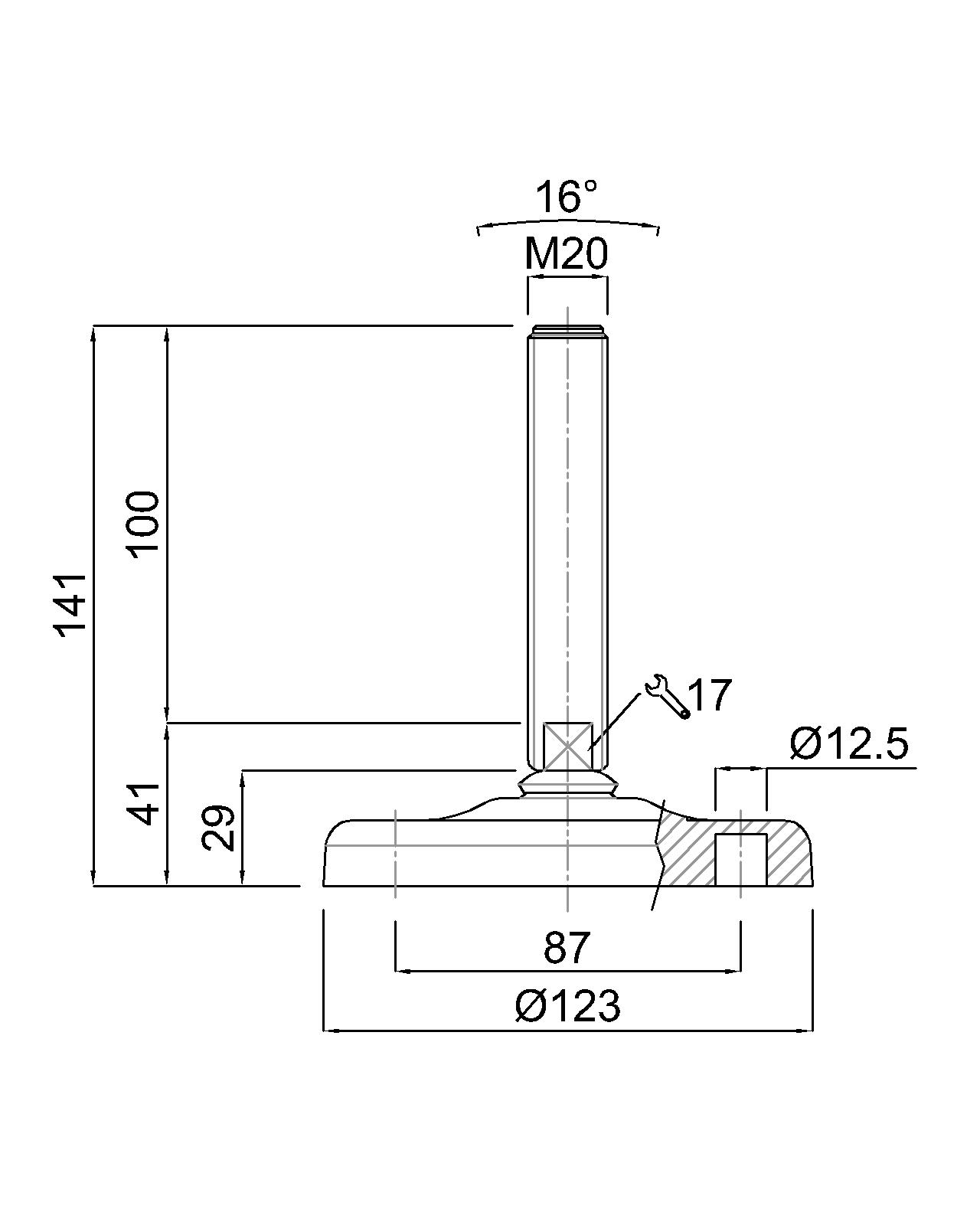

Levelling foot ECO16 Polyamide, Ø 123 mm, M20 x 100 mm, Galvanized steel, Total height 141 mm, Articulated screw 16°, Bore holes Ø 12,5 mm, Static load 35.000 N

Custom solutions

We develop customised components exactly as you need them for your application.

Learn more about custom solutions Contact us

Technical documentation

In this section you will find all relevant documents & links for your documentation::

Download data sheet
Download STP file as ZIP
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
