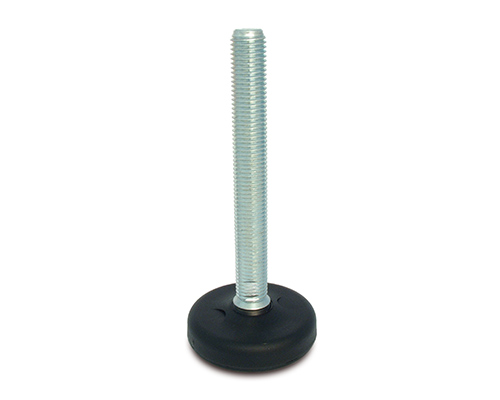

Levelling foot ECO16 PA, Ø 123 mm, M16 x 200 mm Steel, Drills

EAN 4061408101825

Type 45818778

The ECO16 leveling foot offers exceptional stability with its 123 mm polyamide base, supporting static loads up to 35,000 N. Featuring a 16° adjustable screw and galvanized steel spindle, it ensures precise leveling for various applications.

Robust polyamide footplate with a diameter of 123 mm for durability and stability under heavy loads
Galvanized steel spindle with a length of 200 mm and a diameter of 16 mm, ensuring corrosion resistance and strength
Articulated screw design allowing for a compensation angle of 16°, accommodating uneven surfaces effectively
Static load capacity of 35,000 N, making it suitable for demanding industrial applications
Two bore holes with a diameter of 12.5 mm for secure mounting and easy installation

Quantity	Price
From 1	€6.45*
From 5	€6.17*
From 15	€5.32*
From 50	€5.04*

*Prices excl. VAT plus shipping costs

Currently sold out, Refill time: 5 days

€6.45* / piece

Our payment methods:

Accessories

Plastic levelling foot height extension Ø 123

Type No.: 458PROLD123

From €5.03*

Product properties

Footplate material:	Plastic
Anti-slip:	No
Ø range base plate (mm):	111-130
Ground fastening:	2 mounting holes
Vibration damping:	no
Material spindle:	Steel
Ø spindle (mm):	16
Spindle length (mm):	200
Balancing angle:	16°
Hygiene:	No

Product description

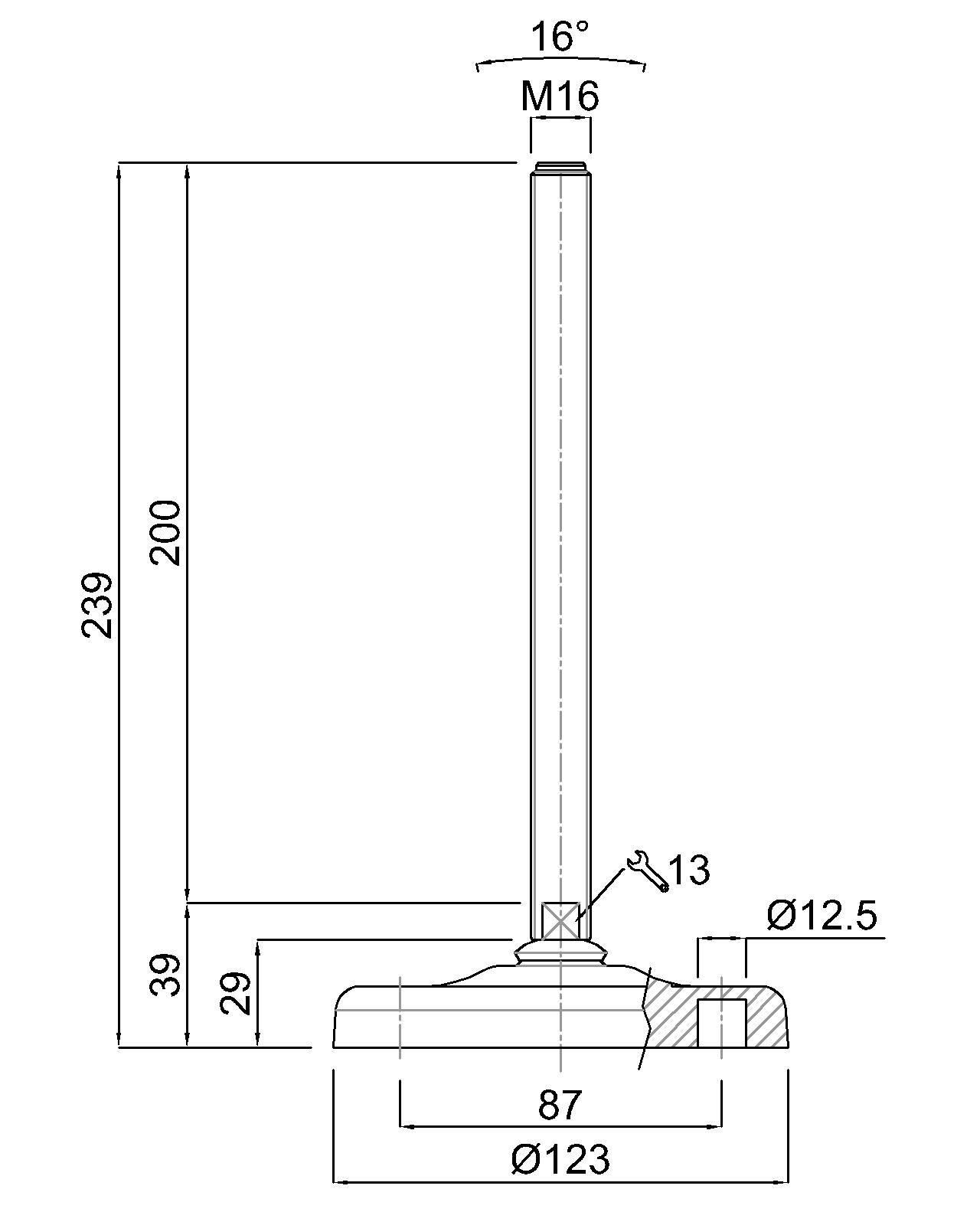

Levelling foot ECO16 Polyamide, Ø 123 mm, M16 x 200 mm, Galvanized steel, Total height 239 mm, Articulated screw 16°, Bore holes Ø 12,5 mm, Static load 35.000 N

Custom solutions

We develop customised components exactly as you need them for your application.

Learn more about custom solutions Contact us

Technical documentation

In this section you will find all relevant documents & links for your documentation::

Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
