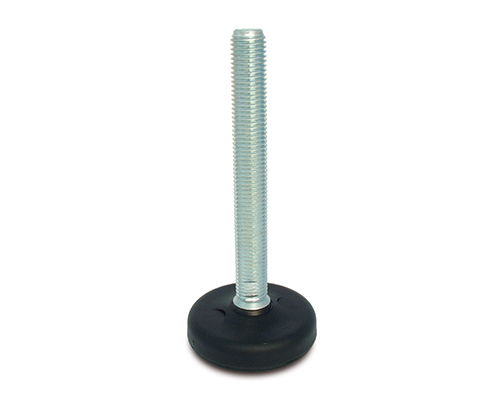

Levelling foot ECO16 PA, Ø 123 mm, M16 x 150 mm Steel, Drills, NBR

EAN 4061408101795

Type 45818775

Optimize your machinery's stability with the ECO16 levelling foot. Featuring a durable polyamide base, galvanized steel spindle, and 35,000 N static load capacity, it ensures precision and reliability in diverse applications.

High static load capacity of 35,000 N ensures stability and durability in demanding applications
Articulated screw design with a 16° adjustment angle allows for precise leveling on uneven surfaces
Made of high-quality polyamide foot plate and galvanized steel spindle for enhanced corrosion resistance
Integrated anti-slip NBR pad provides secure footing and reduces the risk of slippage
Versatile mounting options with two bore holes (Ø 12.5 mm) for easy installation and adaptability

Quantity	Price
From 1	€8.07*
From 5	€7.72*
From 15	€6.65*
From 50	€6.31*

*Prices excl. VAT plus shipping costs

Currently sold out, Refill time: 5 days

€8.07* / piece

Our payment methods:

Accessories

Plastic levelling foot height extension Ø 123, with anti-slip rubber pad

Type No.: 458PROLD123/G

From €6.93*

Product properties

Footplate material:	Plastic
Anti-slip:	NBR black
Ø range base plate (mm):	111-130
Ground fastening:	2 mounting holes
Material spindle:	Steel
Ø spindle (mm):	16
Spindle length (mm):	150
Balancing angle:	16°

Product description

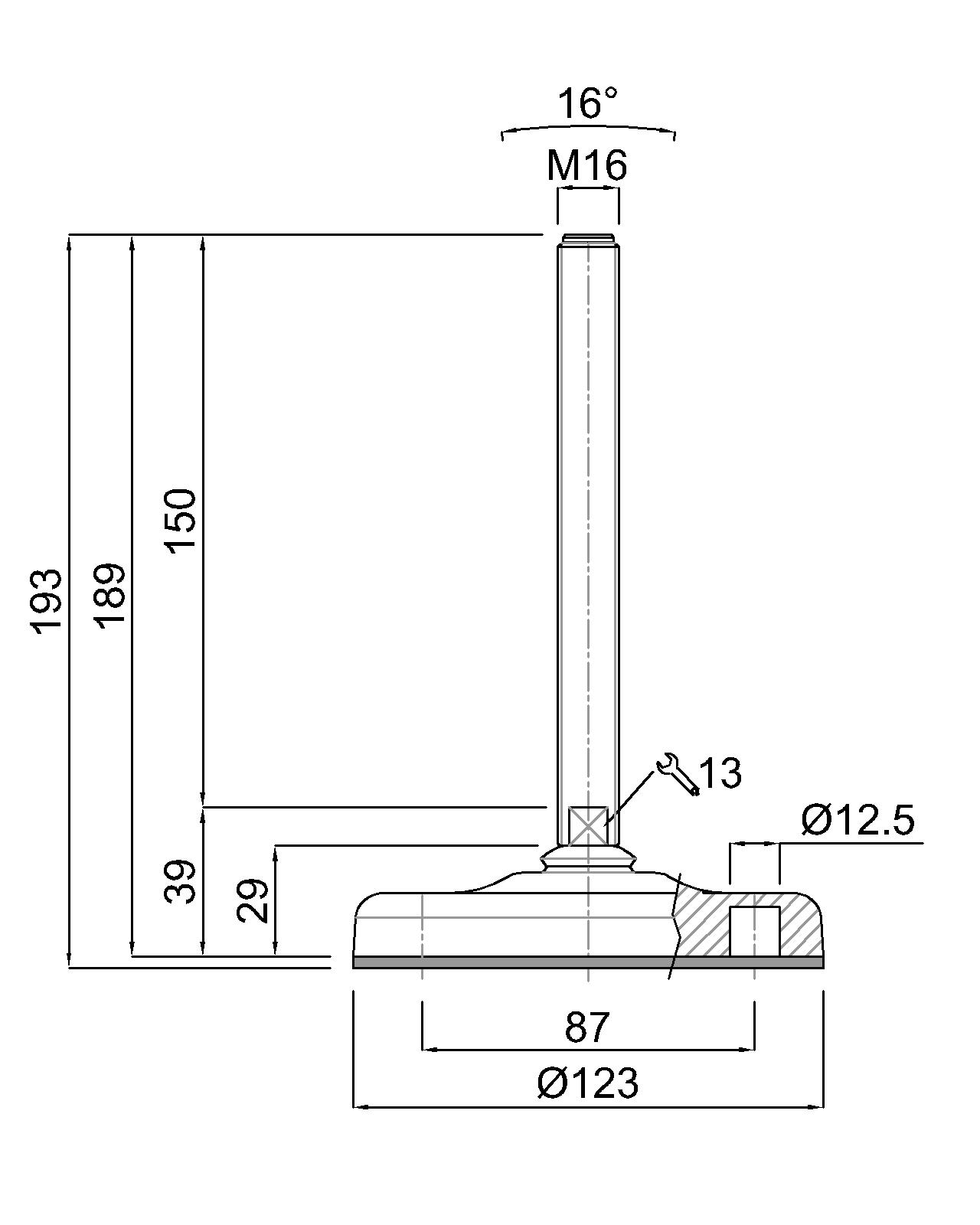

Levelling foot ECO16 Polyamide, Ø 123 mm, M16 x 150 mm, Galvanized steel, Total height 193 mm, Articulated screw 16°, Bore holes Ø 12,5 mm, Antislip NBR black, Static load 35.000 N

Custom solutions

We develop customised components exactly as you need them for your application.

Learn more about custom solutions Contact us

Technical documentation

In this section you will find all relevant documents & links for your documentation::

Download data sheet
Download STP file as ZIP
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
