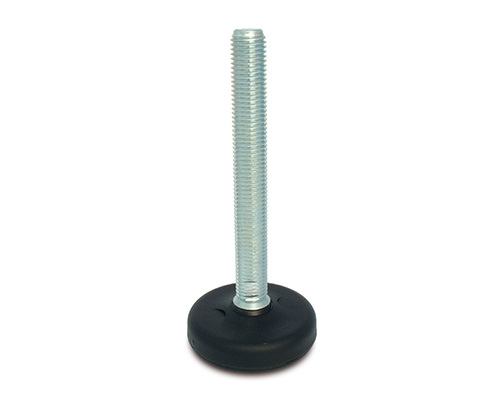

Levelling foot ECO16 PA, Ø 83 mm, M12 x 150 mm Steel, Drills, NBR
Discover the ECO16 Levelling Foot, designed for robustness and precision. With a static load capacity of 14,000 N, it features an articulated design, ensuring stability and versatility for various applications.
| Quantity | Price |
|---|---|
| From 1 |
€5.38*
|
| From 5 |
€5.15*
|
| From 15 |
€4.43*
|
| From 50 |
€4.20*
|
Currently sold out, Refill time: 5 days
Product properties
| Footplate material: | Plastic |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 71-90 |
| Ground fastening: | 2 mounting holes |
| Material spindle: | Steel |
| Ø spindle (mm): | 12 |
| Spindle length (mm): | 150 |
| Balancing angle: | 16° |

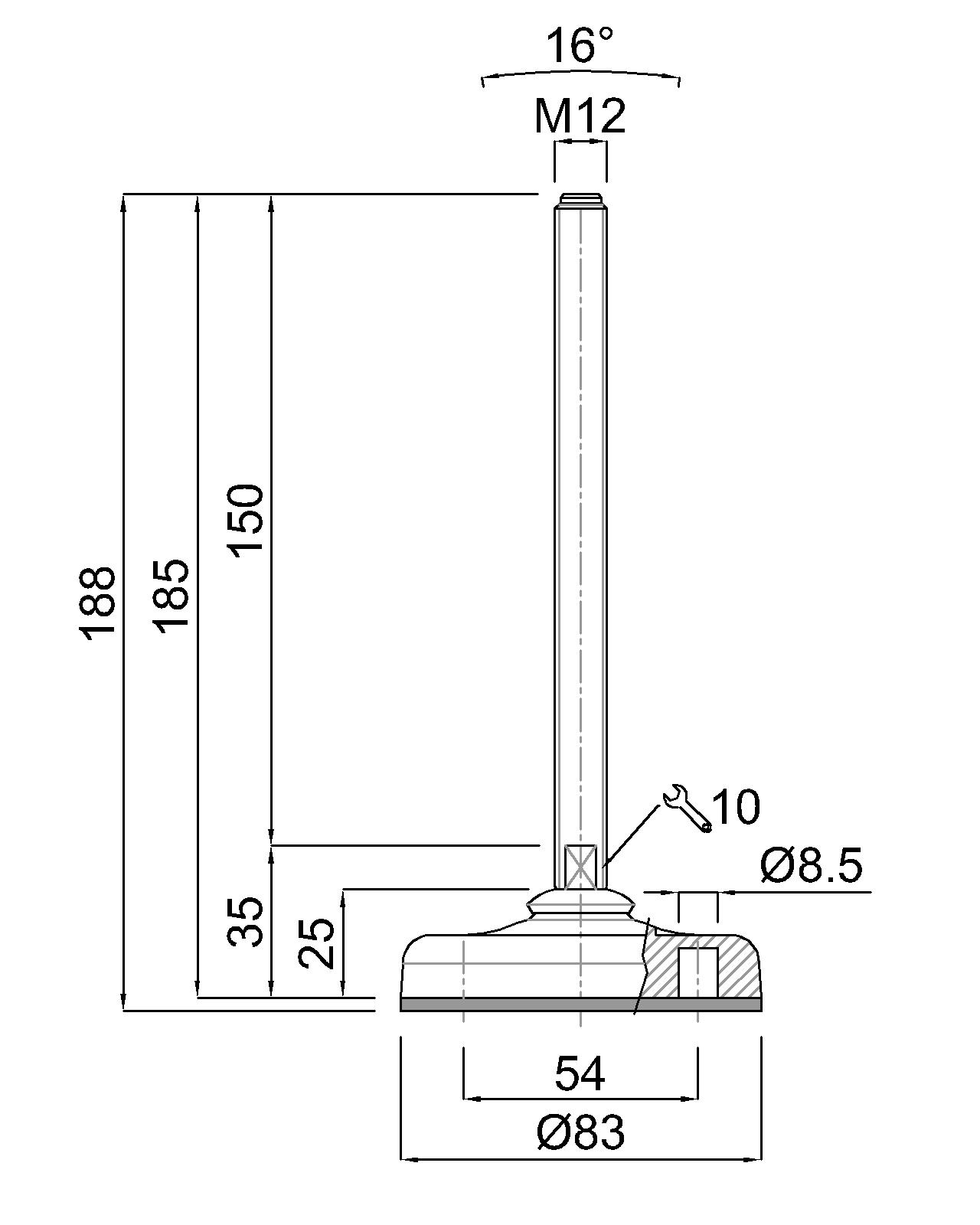

Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
