Levelling foot ECO30 PA, Ø 123 mm, M30 x 250 mm Steel, Drills, NBR

EAN 4061408101023

Type 45818657

The ECO30 Levelling Foot features a robust 123 mm diameter polyamide base with a galvanized steel screw, supporting static loads up to 25,000 N. Ideal for precise leveling applications.

Exceptional load capacity: Supports static loads up to 25,000 N, ensuring stability and durability under heavy conditions.
Robust construction: Made of galvanized steel for the spindle and high-quality polyamide for the footplate, offering resistance to corrosion and wear.
Versatile mounting: Features two bore holes with a diameter of 12.5 mm for secure installation, providing flexibility for various applications.
Articulated design: Allows for a 30° leveling angle, accommodating uneven surfaces and enhancing alignment capabilities.
Antislip feature: Equipped with black NBR rubber to prevent slippage and enhance grip, ensuring safety and reliability in use.

Quantity	Price
From 1	€15.87*
From 5	€15.19*
From 15	€13.08*
From 50	€12.41*

*Prices excl. VAT plus shipping costs

Currently sold out, Refill time: 5 days

€15.87* / piece

Our payment methods:

Accessories

Plastic levelling foot height extension Ø 123, with anti-slip rubber pad

Type No.: 458PROLD123/G

From €6.93*

Product properties

Footplate material:	Plastic
Anti-slip:	NBR black
Ø range base plate (mm):	111-130
Ground fastening:	2 mounting holes
Material spindle:	Steel
Ø spindle (mm):	30
Spindle length (mm):	250
Balancing angle:	30°

Product description

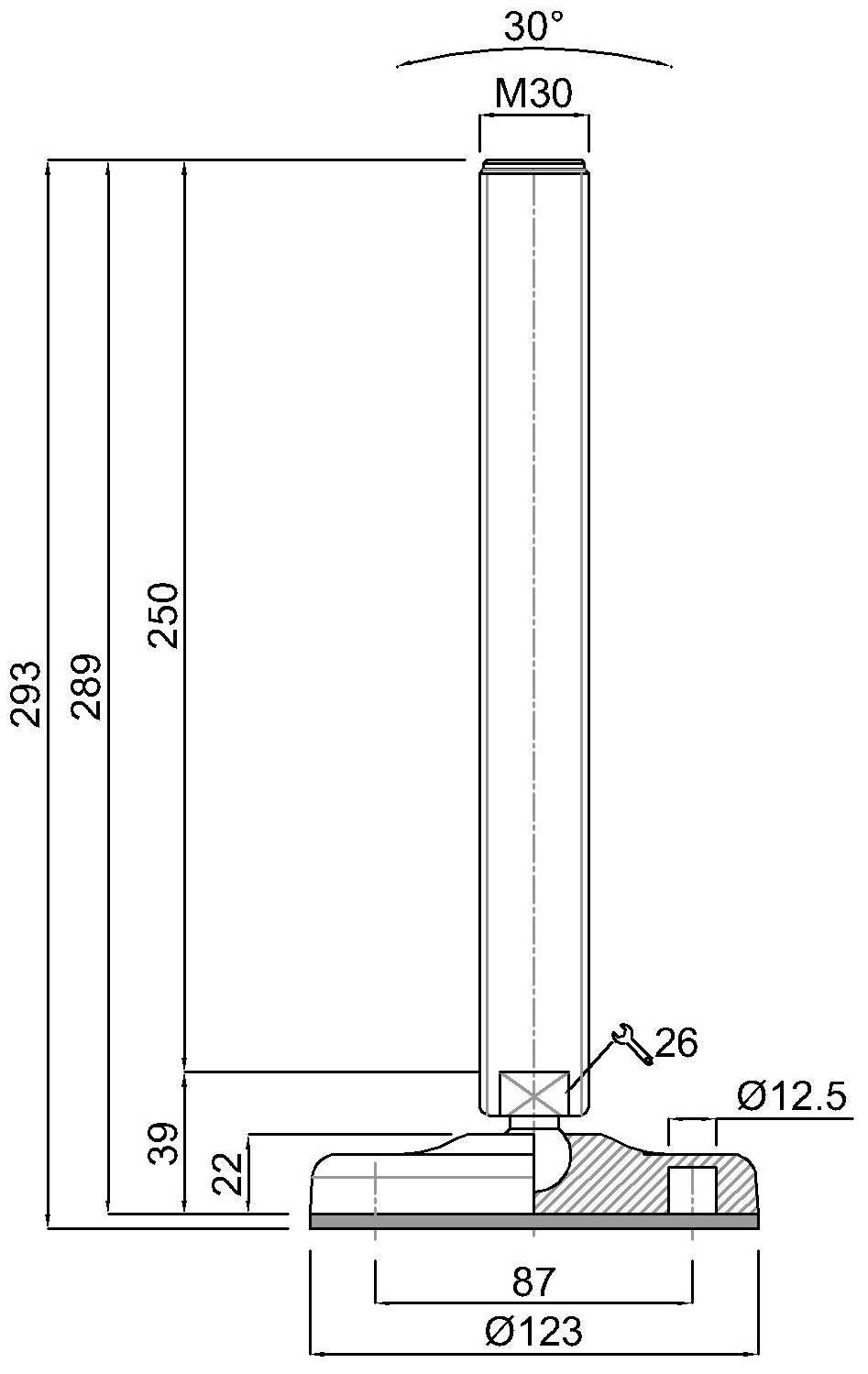

Levelling foot ECO30 Polyamide, Ø 123 mm, M30 x 250 mm, Galvanized steel, Total height 292 mm, Articulated screw 30°, Bore holes Ø 12,5 mm, Antislip NBR black, Static load 25.000 N

Custom solutions

We develop customised components exactly as you need them for your application.

Learn more about custom solutions Contact us

Technical documentation

In this section you will find all relevant documents & links for your documentation::

Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
