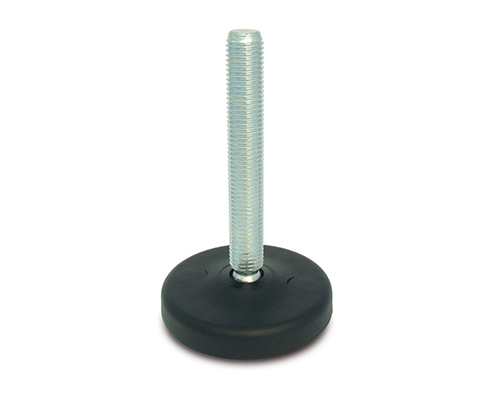

Levelling foot ECO30 PA, Ø 123 mm, M20 x 100 mm Steel, Drills, NBR

EAN 4061408100453

Type 45818613

The ECO30 Levelling Foot features a durable polyamide base, a galvanized steel spindle, and an articulated angle of 30°, ensuring stability with a static load capacity of 20,000 N. Ideal for precise leveling in demanding applications.

Robust construction with a maximum static load of 20,000 N, ensuring stability and safety.
Made of durable polyamide and galvanized steel, providing optimal resistance to wear and corrosion.
Features a total height of 139 mm with a 30° articulated screw for versatile leveling applications.
Designed with anti-slip NBR rubber, enhancing grip and minimizing movement under load.
Includes two bore holes with a diameter of 12.5 mm for secure ground attachment and easy installation.

Quantity	Price
From 1	€7.71*
From 5	€7.38*
From 15	€6.36*
From 50	€6.03*

*Prices excl. VAT plus shipping costs

Currently sold out, Refill time: 5 days

€7.71* / piece

Our payment methods:

Accessories

Plastic levelling foot height extension Ø 123, with anti-slip rubber pad

Type No.: 458PROLD123/G

From €6.93*

Product properties

Footplate material:	Plastic
Anti-slip:	NBR black
Ø range base plate (mm):	111-130
Ground fastening:	2 mounting holes
Material spindle:	Steel
Ø spindle (mm):	20
Spindle length (mm):	100
Balancing angle:	30°

Product description

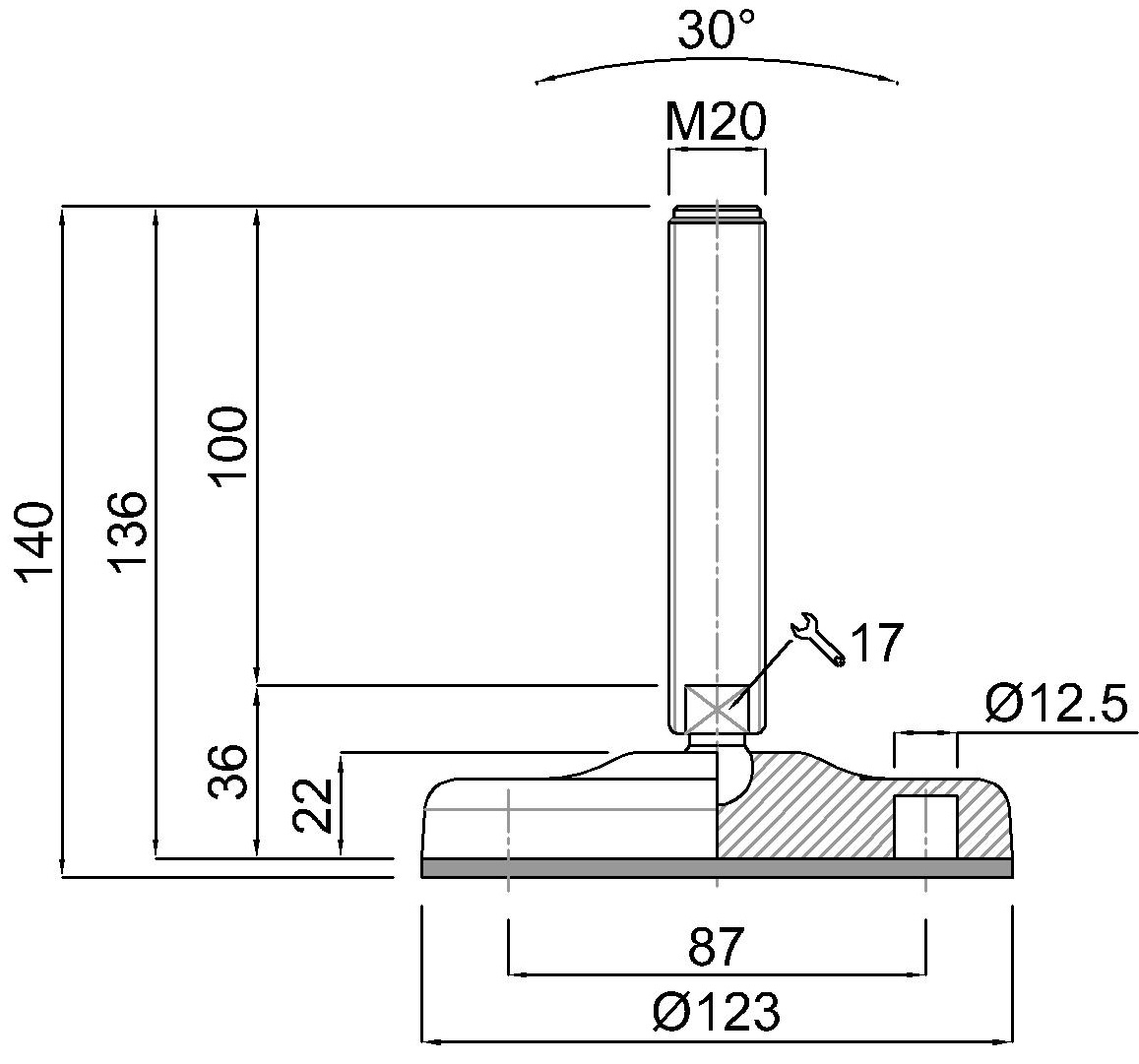

Levelling foot ECO30 Polyamide, Ø 123 mm, M20 x 100 mm, Galvanized steel, Total height 139 mm, Articulated screw 30°, Bore holes Ø 12,5 mm, Antislip NBR black, Static load 20.000 N

Custom solutions

We develop customised components exactly as you need them for your application.

Learn more about custom solutions Contact us

Technical documentation

In this section you will find all relevant documents & links for your documentation::

Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
