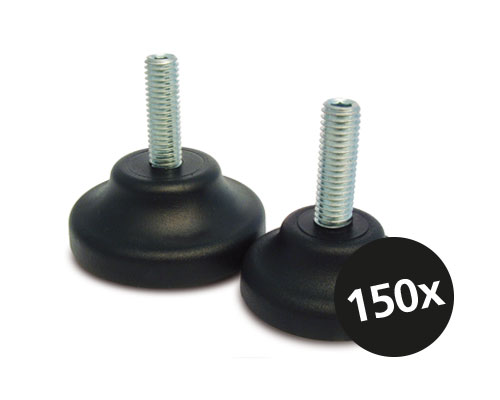

Levelling foot MINI, Ø 50 mm, M10 x 50 mm Steel, PU 150 pcs
Introducing our MINI Levelling Foot, featuring a 50 mm diameter and M10 x 50 mm galvanized steel spindle. With a static load capacity of 6,000 N, it's perfect for precision leveling in various applications. Available in packs of 150.
| Quantity | Price | Base price |
|---|---|---|
| From 1 |
€256.62*
|
€1.71* / 1 pieces |
| From 5 |
€245.70*
|
€1.64* / 1 pieces |
| From 15 |
€211.58*
|
€1.41* / 1 pieces |
| From 50 |
€200.66*
|
€1.34* / 1 pieces |
Currently sold out, Refill time: 5 days
Product properties
| Footplate material: | Plastic |
| Anti-slip: | No |
| Ø range base plate (mm): | 41-50 |
| Vibration damping: | no |
| Material spindle: | Steel |
| Ø spindle (mm): | 10 |
| Spindle length (mm): | 50 |
| Balancing angle: | 0° |
| Hygiene: | No |

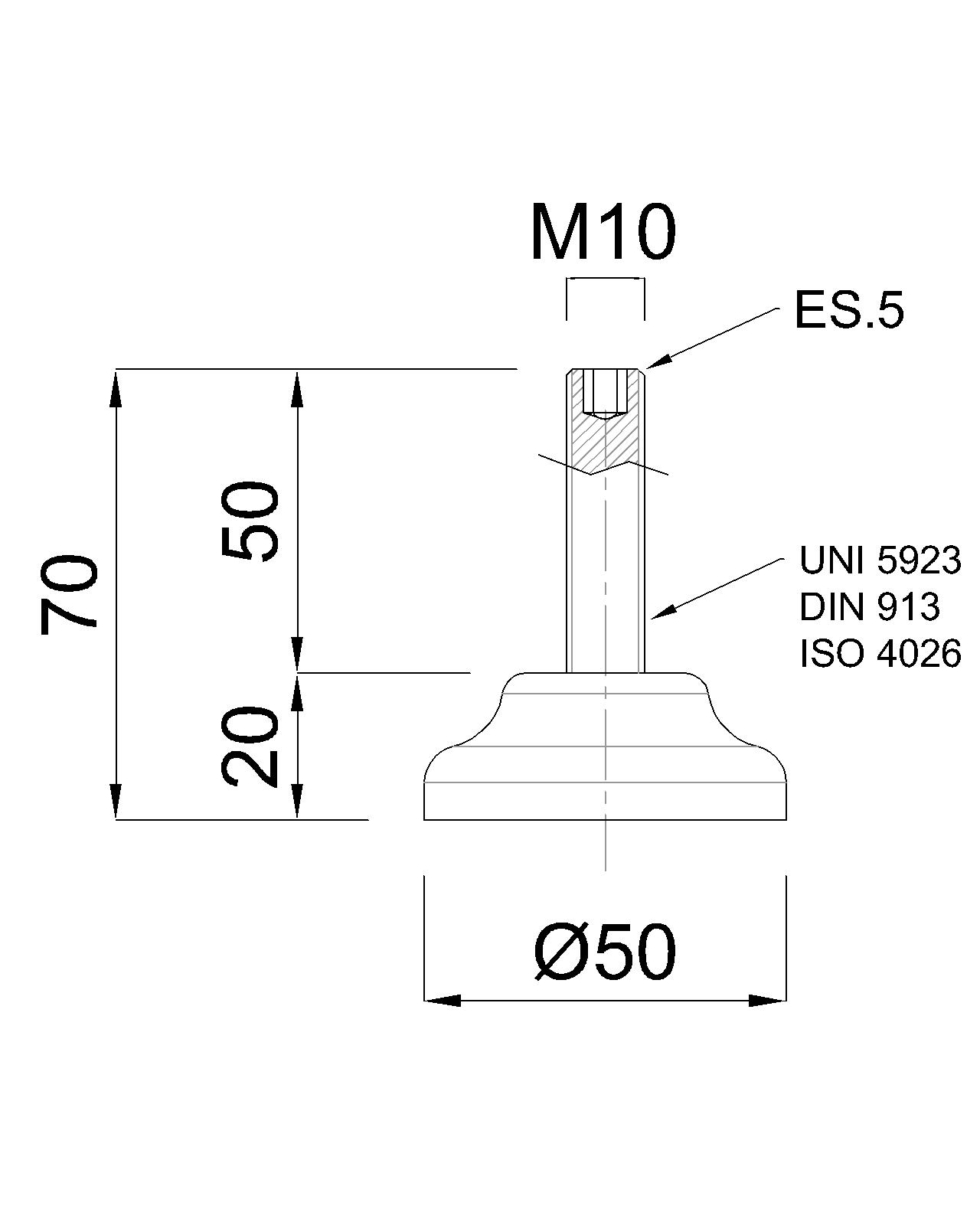

Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
