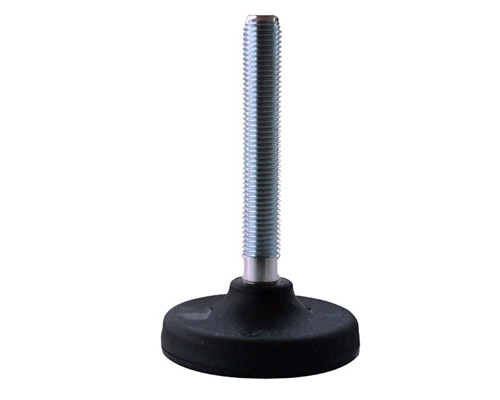

Levelling foot PA, Ø 123 mm, M24 x 100 mm Steel, Drills, NBR

EAN 4061408095124

Type 45812897

Enhance stability with our Polyamide Levelling Foot, featuring a 123 mm diameter and M24 x 100 mm galvanized steel spindle. Capable of supporting static loads up to 45,000 N, it ensures secure installations with anti-slip NBR and adjustable articulation.

Durable construction with a polyamide base and galvanized steel spindle, ensuring longevity and corrosion resistance
Large diameter (Ø 123 mm) provides enhanced stability and load distribution for improved performance
Capable of supporting a static load of up to 45,000 N, suitable for heavy-duty applications
Designed with a 4° articulated screw, allowing for effective leveling in uneven surfaces
Features anti-slip NBR material for superior grip, preventing movement and ensuring safety

Quantity	Price
From 1	€9.61*
From 5	€9.20*
From 15	€7.92*
From 50	€7.51*

*Prices excl. VAT plus shipping costs

Currently sold out, Refill time: 5 days

€9.61* / piece

Our payment methods:

Accessories

Plastic levelling foot height extension Ø 123, with anti-slip rubber pad

Type No.: 458PROLD123/G

From €6.93*

Product properties

Footplate material:	Plastic
Anti-slip:	NBR black
Ø range base plate (mm):	111-130
Ground fastening:	2 mounting holes
Material spindle:	Steel
Ø spindle (mm):	24
Spindle length (mm):	100
Balancing angle:	4°

Product description

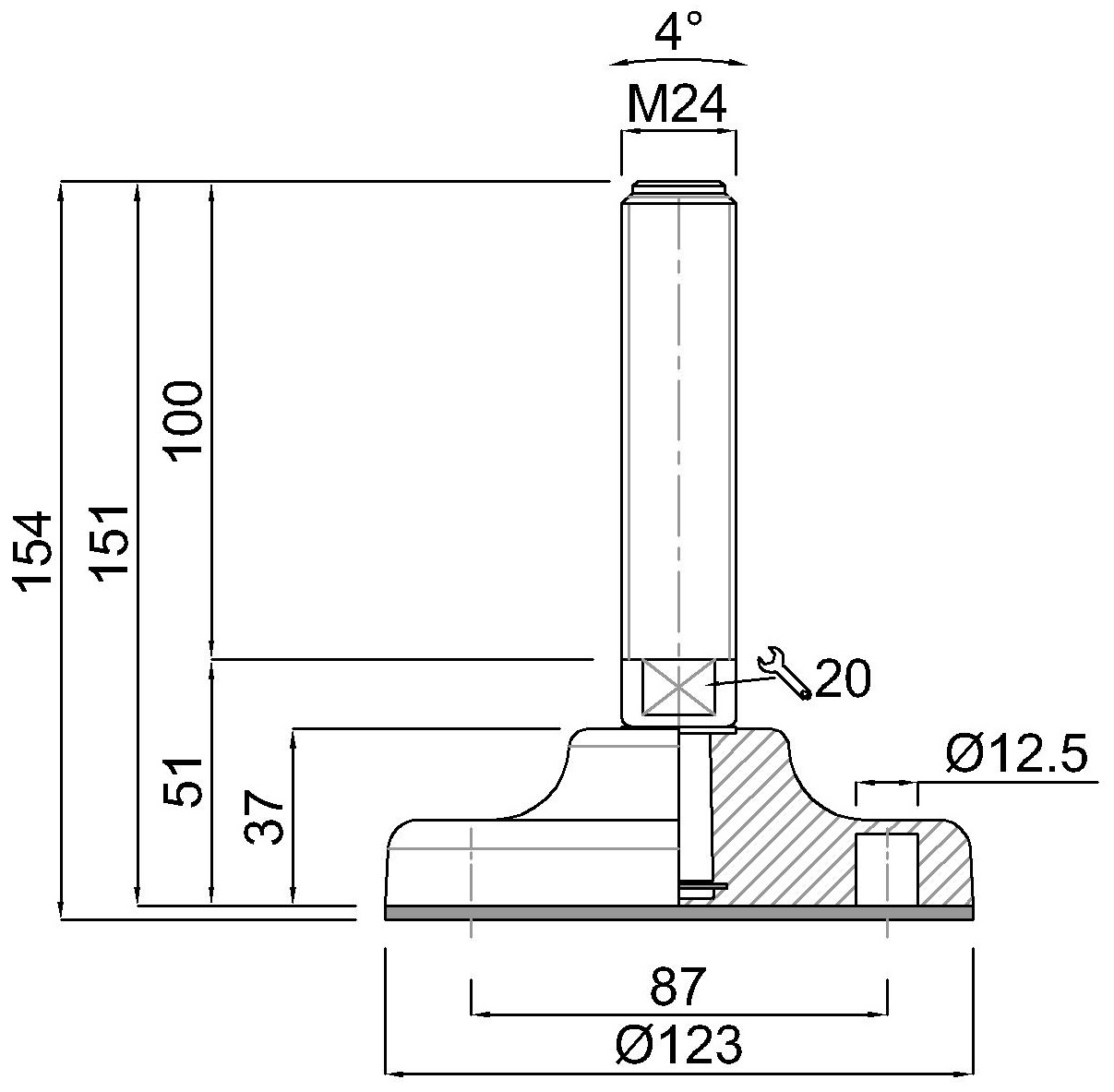

Levelling foot Polyamide, Ø 123 mm, M24 x 100 mm, Galvanized steel, Total height 154 mm, Articulated screw 4°, Bore holes Ø 12,5 mm, Antislip NBR black, Static load 45.000 N

Custom solutions

We develop customised components exactly as you need them for your application.

Learn more about custom solutions Contact us

Technical documentation

In this section you will find all relevant documents & links for your documentation::

Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
