Levelling foot PA, Ø 123 mm, M20 x 100 mm Steel, Drills

EAN 4061408095032

Type 45812866/20

Optimize your machinery's stability with our Levelling Foot PA, featuring a robust galvanized steel spindle and a 123 mm polyamide base. Engineered for a static load of 40,000 N.

Constructed from high-quality polyamide for superior durability and resistance to wear and tear.
Features a robust galvanized steel spindle, ensuring excellent load-bearing capacity and corrosion resistance.
Designed with a total height of 150 mm and a leveling angle adjustment of 4°, providing enhanced stability on uneven surfaces.
Includes two bore holes with a diameter of 12.5 mm for secure floor mounting and installation flexibility.
Capable of handling a static load of up to 40,000 N, making it suitable for heavy-duty applications.

Quantity	Price
From 1	€7.88*
From 5	€7.54*
From 15	€6.49*
From 50	€6.16*

*Prices excl. VAT plus shipping costs

Currently sold out, Refill time: 5 days

€7.88* / piece

Our payment methods:

Accessories

Plastic levelling foot height extension Ø 123

Type No.: 458PROLD123

From €5.03*

Product properties

Footplate material:	Plastic
Anti-slip:	No
Ø range base plate (mm):	111-130
Ground fastening:	2 mounting holes
Vibration damping:	no
Material spindle:	Steel
Ø spindle (mm):	20
Spindle length (mm):	100
Balancing angle:	4°
Hygiene:	No

Product description

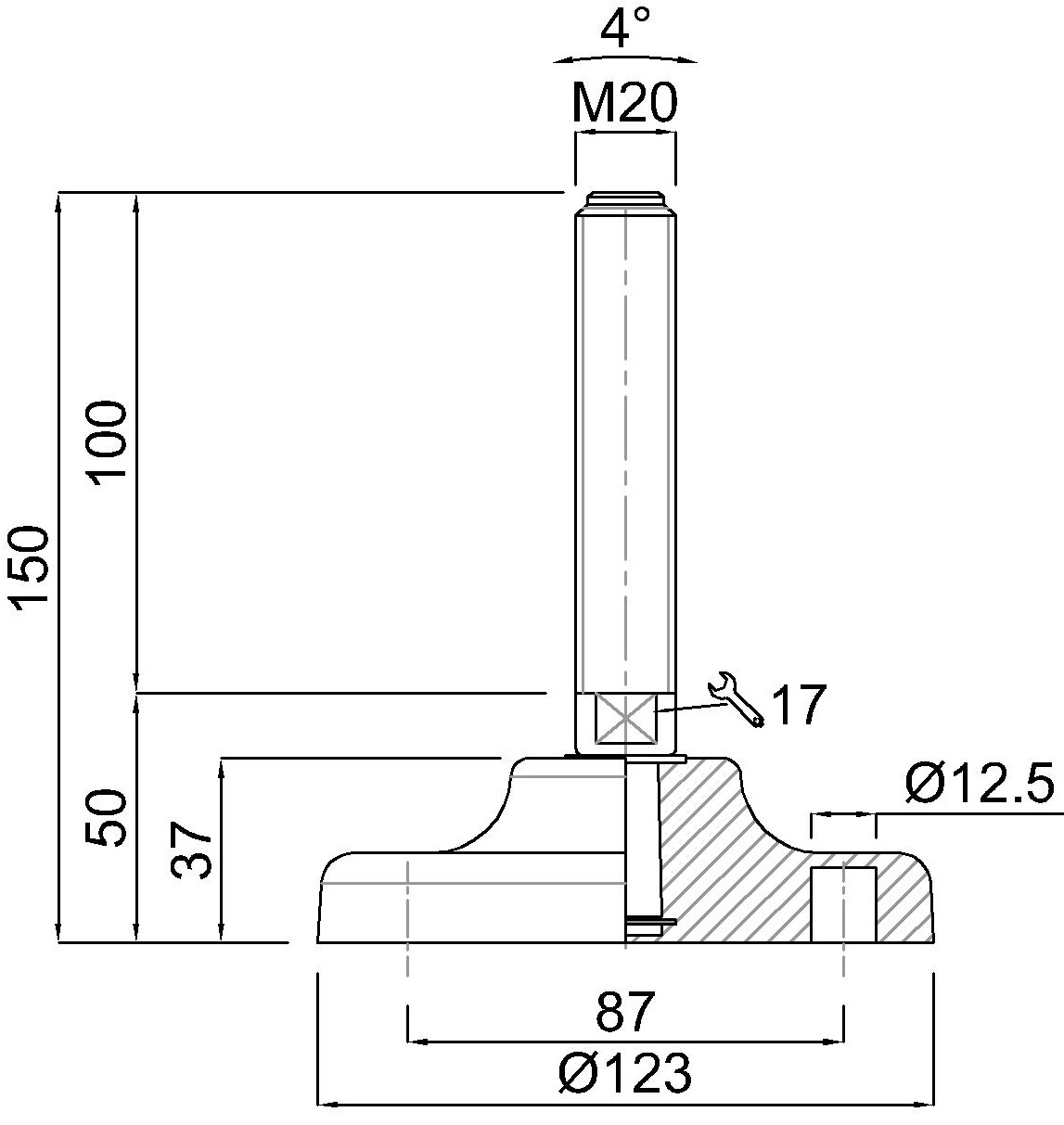

Levelling foot Polyamide, Ø 123 mm, M20 x 100 mm, Galvanized steel, Total height 150 mm, Articulated screw 4°, Bore holes Ø 12,5 mm, Static load 40.000 N

Custom solutions

We develop customised components exactly as you need them for your application.

Learn more about custom solutions Contact us

Technical documentation

In this section you will find all relevant documents & links for your documentation::

Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
