Levelling foot PA, Ø 123 mm, M16 x 150 mm Steel, Drills

EAN 4061408094998

Type 45812838/20

Introducing our durable Levelling Foot PA, featuring a 123 mm diameter and M16 x 150 mm galvanized steel spindle, designed to ensure stability with a static load capacity of 35,000 N. Ideal for precise leveling applications.

Robust levelling foot made of high-quality polyamide, designed for enhanced durability and resistance to wear and tear.
Large diameter of 123 mm ensures excellent stability and weight distribution for heavy machinery.
M16 threaded spindle with a length of 150 mm, enabling precise height adjustments and secure mounting.
Supports a static load capacity of up to 35,000 N, making it ideal for demanding industrial applications.
Articulated design allows for a maximum compensation angle of 4°, accommodating uneven surfaces with ease.

Quantity	Price
From 1	€9.46*
From 5	€9.05*
From 15	€7.80*
From 50	€7.39*

*Prices excl. VAT plus shipping costs

Currently sold out, Refill time: 5 days

€9.46* / piece

Our payment methods:

Accessories

Plastic levelling foot height extension Ø 123

Type No.: 458PROLD123

From €5.03*

Product properties

Footplate material:	Plastic
Anti-slip:	No
Ø range base plate (mm):	111-130
Ground fastening:	2 mounting holes
Vibration damping:	no
Material spindle:	Steel
Ø spindle (mm):	16
Spindle length (mm):	150
Balancing angle:	4°
Hygiene:	No

Product description

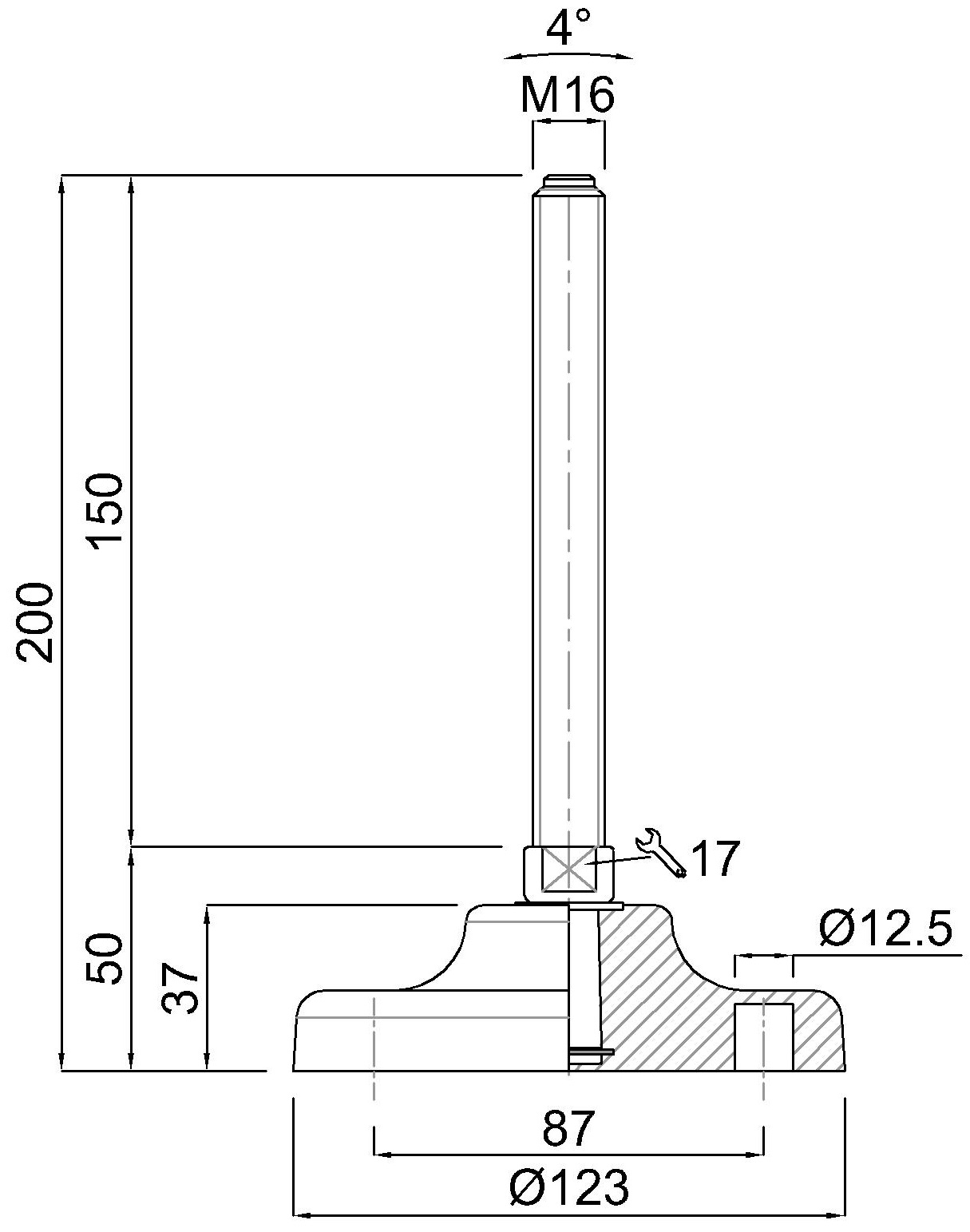

Levelling foot Polyamide, Ø 123 mm, M16 x 150 mm, Galvanized steel, Total height 200 mm, Articulated screw 4°, Bore holes Ø 12,5 mm, Static load 35.000 N

Custom solutions

We develop customised components exactly as you need them for your application.

Learn more about custom solutions Contact us

Technical documentation

In this section you will find all relevant documents & links for your documentation::

Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
