Levelling foot PA, Ø 103 mm, M24 x 75 mm Steel, Drills, NBR
Optimize your machinery stability with our PA leveling foot. Featuring a 103 mm diameter, M24 steel spindle, and 35,000 N static load capacity, it ensures reliable performance and precise adjustments.
| Quantity | Price |
|---|---|
| From 1 |
€7.82*
|
| From 5 |
€7.49*
|
| From 15 |
€6.45*
|
| From 50 |
€6.12*
|
Currently sold out, Refill time: 5 days
Product properties
| Footplate material: | Plastic |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 91-110 |
| Ground fastening: | 2 mounting holes |
| Material spindle: | Steel |
| Ø spindle (mm): | 24 |
| Spindle length (mm): | 75 |
| Balancing angle: | 4° |

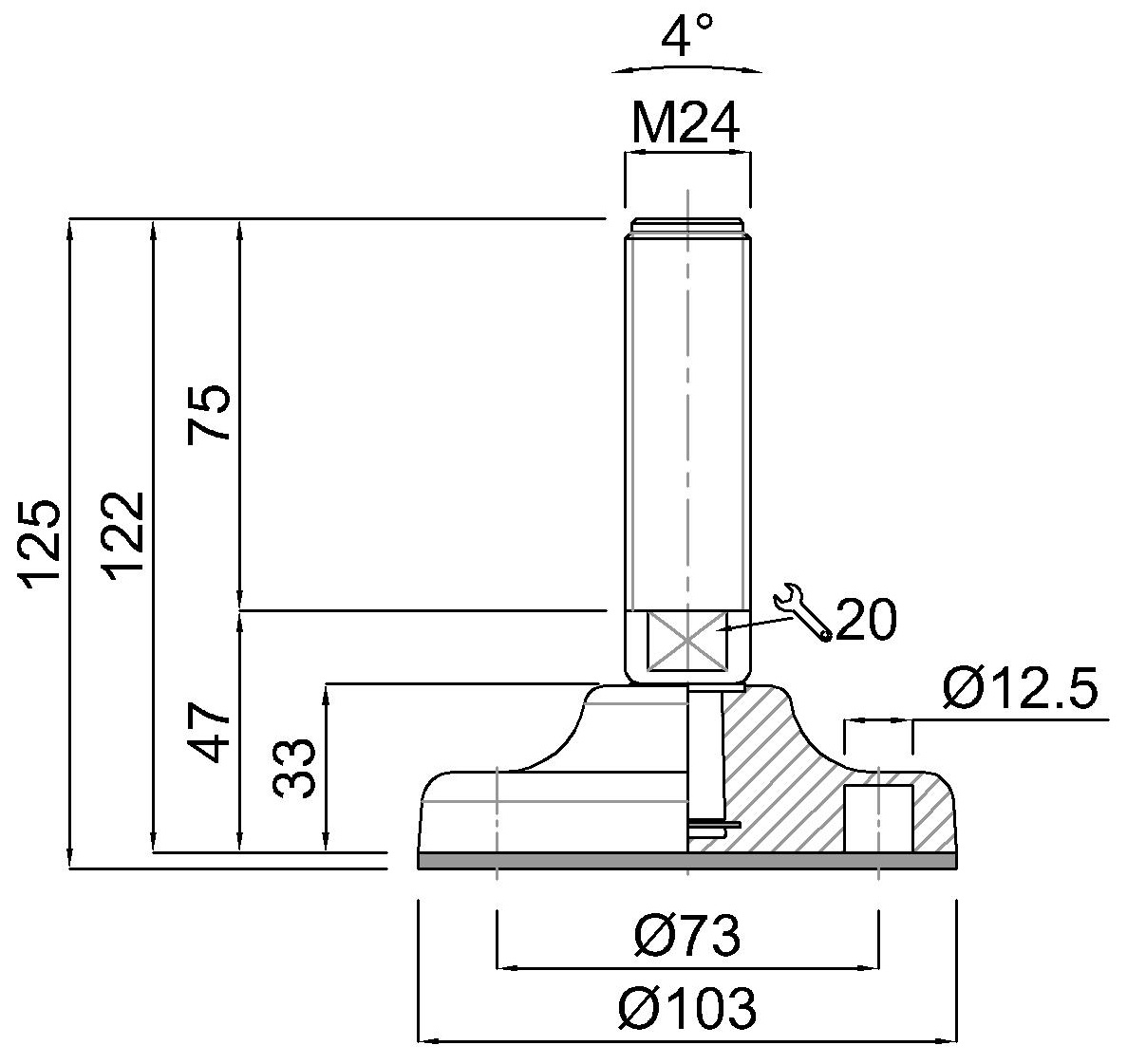

Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
