Levelling foot PA, Ø 103 mm, M20 x 175 mm Steel, Drills
Optimize stability and performance with our Polyamide Levelling Foot. Designed for static loads up to 35,000 N, its 103 mm diameter and articulated screw allow for precise adjustments and reliable fixture.
| Quantity | Price |
|---|---|
| From 1 |
€8.54*
|
| From 5 |
€8.17*
|
| From 15 |
€7.04*
|
| From 50 |
€6.67*
|
Currently sold out, Refill time: 5 days
Product properties
| Footplate material: | Plastic |
| Anti-slip: | No |
| Ø range base plate (mm): | 91-110 |
| Ground fastening: | 2 mounting holes |
| Vibration damping: | no |
| Material spindle: | Steel |
| Ø spindle (mm): | 20 |
| Spindle length (mm): | 175 |
| Balancing angle: | 4° |
| Hygiene: | No |

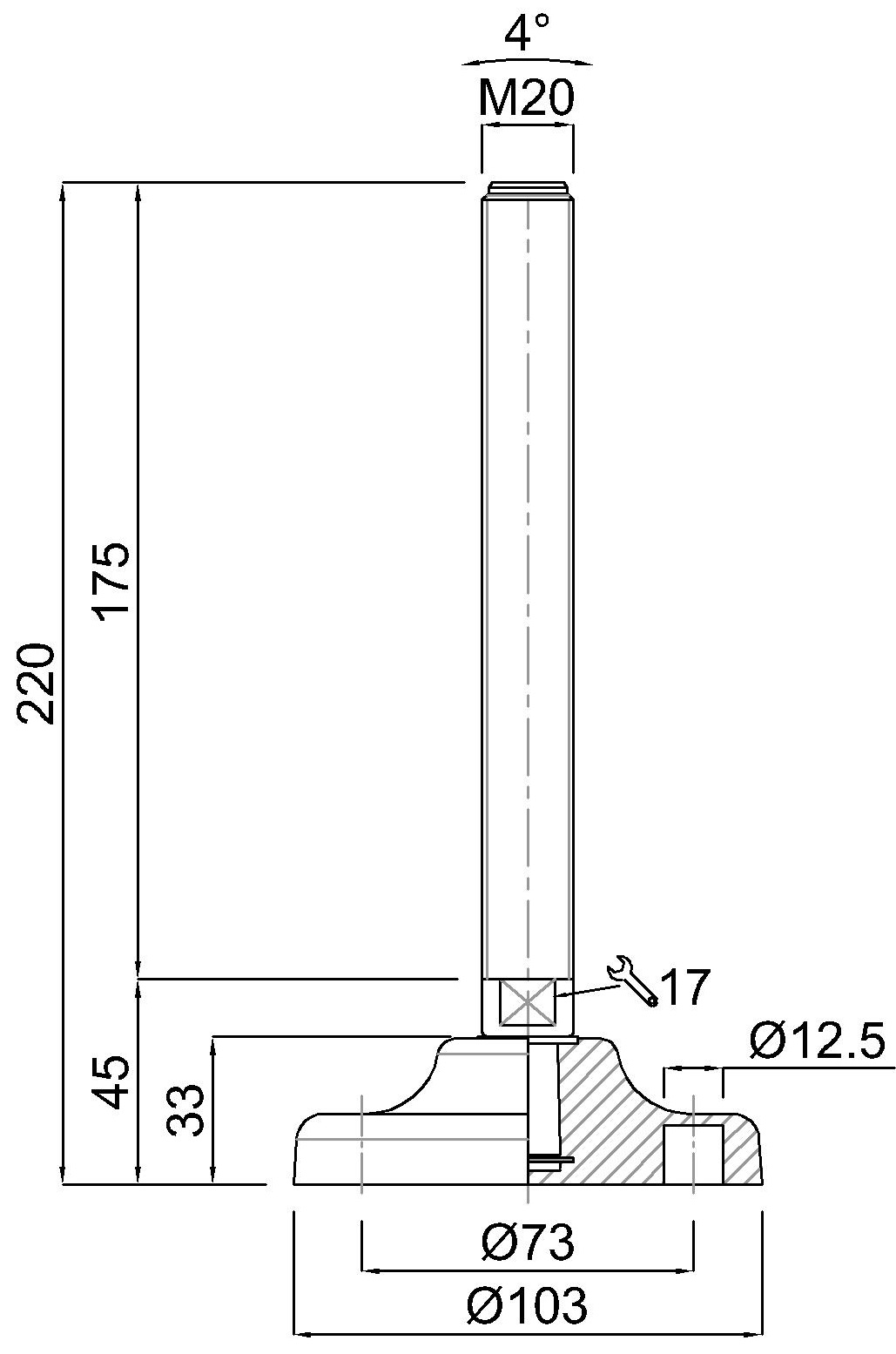

Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
